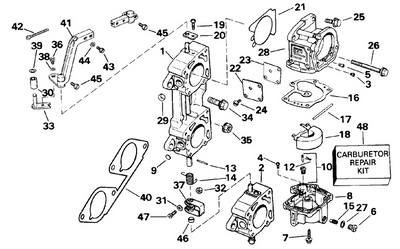

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 10
Product Description: Cover, Carb. Body
Category: JOHNSON / 1997 / 15 / BJ15FRELUA 1997 / CARBURETOR - 15 H.P.
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0437781 | Cover nipple assy. | |
| 2 | 0333695 | Screen, cover | |
| 3 | 0437060 | Roller sleeve assy. | |
| 4 | 0324678 | O ring, valve core, lower | |
| 5 | 0435488 | Diaphragm assy. | |
| 6 | 0303630 | Washer | |
| 7 | 0342079 | Orifice, idle passage | |
| 8 | 0342072 | Gasket, bowl | |
| 9 | 0341474 | Screw, cover | |
| 10 | 0437287 | Cover, carb. body | |
| 11 | 0341501 | Gasket, cover | |
| 12 | 0908045 | Screw | |
| 13 | 0330057 | Screw plug | |
| 15 | 0341459 | Needle valve, idle mixture | |
| 16 | 0338602 | Float chamber | |
| 18 | 0342973 | Cap, restrictor | |
| 18 | 0341560 | Cap, restrictor | |
| 19 | 0302661 | Hinge pin, float | |
| 20 | 0396522 | Ensemble soupape à flotteur | |
| 21 | 0301996 | Gasket | |
| 22 | 0336842 | Clip, spring | |
| 23 | 0323151 | High speed orifice, no. 45 | |
| 23 | 0328535 | High speed orifice, no. 41 | |
| 24 | 0396514 | Float assy | |
| 25 | 0330284 | Screw | |
| 26 | 0330285 | Clip | |
| 27 | 0342055 | Retainer, check valve | |
| 29 | 0315656 | Screw | |
| 30 | 0338622 | Screw, pump | |
| 31 | 0341562 | Spring, diaphragm | |
| 32 | 0342625 | Screw, idle adjustment | |
| 33 | 0342030 | Spring, idle mixture | |
| 34 | 0330312 | Lever, choke | |
| 35 | 0202850 | Retaining ring, choke lever | |
| 36 | 0319023 | Spring, choke return | |
| 37 | 0341561 | Spring, choke override | |
| 38 | 0332576 | Ressort, soupape à pointeau | |
| 40 | 0314575 | Pin, throttle shaft | |
| 41 | 0437782 | Check valve assy. | |
| 42 | 0342028 | Cap, check valve | |
| 43 | 0340683 | Ball, fuel outlet | |
| 44 | 0341185 | Gasket, nozzle well | |
| 45 | 0342067 | O ring, float chamber | |
| 46 | 0320107 | Tie strap | |
| 47 | HOSE, Accelerator pump, 6 1/4 in. (159mm) | ||
| 49 | 0337415 | Nut | |
| 50 | 0337353 | Screw, retainer screen | |
| 51 | 0339192 | Seal, air silencer to carburetor | |
| 52 | 0337356 | Screw, air horn to carb., side | |
| 53 | 0337357 | Screw, air horn to carb., top | |
| 54 | 0303715 | Washer, rivet | |
| 55 | 0318932 | Gasket, insulator carburetor | |
| 56 | 0338914 | Air horn | |
| 57 | 0341402 | Retainer, screen to air horn | |
| 58 | 0340009 | Screen, air horn | |
| 59 | 0437783 | Carburetor repair kit |
