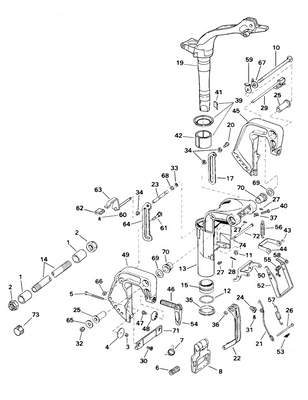

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 63
Product Description: Lever & Shaft Assy., Lock
Category: EVINRUDE / 2000 / 10 / E10TVX4SSS 4-Stroke, Elec. Start, Tiller, 25 IN shaft, wht 2000 / MIDSECTION
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0124346 | Spacer, tilt tube 9.9 electric high thrust models, 15 electric models | |
| 2 | 0335554 | Locknut, tilt tube 9.9 electric high thrust models, 15 electric models | |
| 3 | 0363253 | Nut,lock 9.9 tiller electric high thrust models, 9.9 electric high thrust models, 15 electric models | This part replaces 0310702. |
| 4 | 0315776 | Rondelle 9.9 tiller electric high thrust models, 9.9 electric high thrust models, 15 electric models | |
| 5 | 0363013 | Screw 9.9 tiller electric high thrust models, 9.9 electric high thrust models, 15 electric models | This part replaces 0334427. |
| 6 | 0339024 | Spacer, lift handle 9.9 rope models, 9.9 tiller electric high thrust models, 15 rope models | |
| 7 | 0338297 | Spring, lift handle | |
| 8 | 0338298 | Lift handle | |
| 10 | 0332960 | Tilt bolt, stern bracket to swivel bracket 9.9 rope models, 9.9 tiller electric high thrust models, 15 rope models | |
| 11 | 0343981 | Washer, pin to support bracket | |
| 12 | 0301917 | O ring | |
| 13 | 0338887 | Swivel bracket | |
| 14 | 0351896 | Tilt tube 9.9 electric high thrust models, 15 electric models | This part replaces 0321511. |
| 15 | 0309967 | Bushing, pilot shaft, lower | |
| 17 | 0328289 | Support bracket, tilt lock port | |
| 19 | 0438612 | Steering brkt. pivot shaft | |
| 20 | 0328290 | Pin, support bracket to swivel bracket | |
| 21 | 0320416 | Wire, reverse lock release | |
| 22 | 0338874 | Carrying handle | |
| 23 | 0328285 | Bushing, tilt lock shaft to sw. brkt. | |
| 24 | 0319049 | Bell crank, reverse lock | |
| 25 | 0325914 | Bushing, stern bracket 9.9 rope models, 9.9 tiller electric high thrust models, 15 rope models | |
| 26 | 0326943 | Pin, link to lock lever | |
| 27 | 0313607 | Lube fitting | |
| 28 | 0345942 | Cotter pin, pin to support bracket | |
| 29 | 0432453 | Knob tilt pin assy. | |
| 30 | 0308684 | Screw, cover to housing | |
| 31 | 0319108 | Screw belcrank | |
| 32 | 0315077 | Locknut, 3 8 24 ss 9.9 rope models, 9.9 tiller electric high thrust models, 15 rope models | This part replaces 0325451. |
| 33 | 0312977 | Bow washer, link to lever | |
| 34 | 0308052 | Washer | |
| 35 | 0309966 | Thrust washer, lower swivel bracket | |
| 36 | 0310540 | .washer, shaft | |
| 37 | 0551113 | Ressort de friction de direction | |
| 39 | 0397736 | Block assy., friction | |
| 40 | 0321531 | Screw, friction adjust. swivel brkt. | |
| 41 | 0332662 | Block, friction, swivel bracket | |
| 42 | 0332663 | Liner | |
| 43 | 0310540 | .washer, shaft | |
| 44 | 0319050 | Lever, reverse locking 9.9 rope models, 15 rope models, 15 electric models | |
| 45 | 0328268 | Stern bracket, port | |
| 46 | 0433675 | Clamp scr. hand. assy. | This part replaces 0433674. |
| 46 | 0391421 | Clamp screw handle | |
| 47 | 0321922 | Screw, shoulder | |
| 48 | 0337017 | Plate, swivel | |
| 49 | 0328269 | Stern bracket, starboard | |
| 50 | 0322949 | Link, reverse lock 9.9 rope models, 15 rope models, 15 electric models | |
| 50 | 0393204 | Lever link assy. | |
| 52 | 0338657 | Link, shallow water drive | |
| 53 | 0333774 | Attache, commande vers tringlerie de sens de marche | |
| 54 | 0398001 | Handle rivet | |
| 55 | 0320427 | Spring, shallow water drive | |
| 56 | 0338489 | Spring, reverse lock 9.9 rope models, 15 rope models, 15 electric models | |
| 56 | 0340219 | Spring, reverse lock | |
| 57 | 0320428 | Spring, reverse lock rod | |
| 58 | 0204293 | Washer, hinge pin 9.9 rope models, 15 rope models, 15 electric models | |
| 59 | 0325017 | Nut, tilt lock pin 9.9 rope models, 9.9 tiller electric high thrust models, 15 rope models | |
| 60 | 0319227 | Screw, knob | |
| 61 | 0319047 | Pin, tilt lock to stern bracket | |
| 62 | 0328048 | Knob, tilt reverse lock lever | |
| 63 | 0437797 | Lever shaft assy., lock | |
| 64 | 0338563 | Tilt lock, starboard | |
| 65 | 0314099 | Rondelle, vis, pignon de distribution 9.9 rope models, 9.9 tiller electric high thrust models, 15 rope models | |
| 66 | 0313022 | Locknut, double ended bolt | |
| 67 | 0300364 | Link, conical, tilt shaft 9.9 rope models, 9.9 tiller electric high thrust models, 15 rope models | |
| 68 | 0303884 | Washer | |
| 69 | 0319699 | Thrust washer, stern bracket | |
| 70 | 0319787 | Bushing | |
| 71 | 0309738 | Plate stern bracket | |
| 72 | 0319055 | Pin, link to bracket | |
| 73 | 0317894 | Cap, tilt tube 9.9 electric high thrust models, 15 electric models | |
| 74 | 0203949 | E ring link |
