EVINRUDE-JOHNSON 437907 Water Pump Repair Kit, (Includes Impeller Hou Ing)

Write a Review
$73.49
SKU:
437907
Schematic Object Key:
80

EVINRUDE-JOHNSON 437907 Water Pump Repair Kit, (Includes Impeller Hou Ing)

$73.49

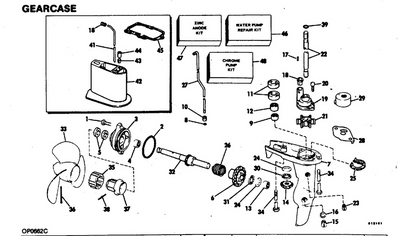

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 437907 Water Pump Repair Kit, (Includes Impeller Hou Ing)

Schematic Object Key : 80

Product Description: Water Pump Repair Kit, (Includes Impeller Hou Ing)

Category: EVINRUDE / 1998 / 35 / BE35KLECA 1998 / GEARCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0437934 0437934 Gearcase assy., complete
1 5008160 Bearing housing seal This part replaces 0433428.
2 0321453 Seal, propeller shaft
3 0437288 Bearing assembly, propeller shaft
4 0328311 Cradle, clutch dog
5 0319743 Screw, propeller shaft bearing housing
6 0332584 Washer, seal ring
7 0327655 Gear, reverse
8 0439143 Propeller shaft
9 0327070 Spring, detent propeller shaft
10 0316506 Ball, detent
11 0337020 Shifter, clutch dog
12 0390023 Yoke connector assy
13 0308376 Pivot pin, shift lever
14 0332584 Washer, seal ring
15 0386186 Roller bearing, forward gear
16 0328313 Gear, pinion, driveshaft
17 0307551 Screw
18 0311598 Seal
19 0303049 Cotter pin
20 0436024 Gearcase
21 0322018 Housing, bearing
22 0386473 Bearing assembly
23 0321928 Retainer, oil, , lower
24 0332261 Seal, driveshaft upper
25 5008161 Trim tab assy This part replaces 0336203.
26 0326361 Bushing, shift rod lower
27 0325539 Screw, sceen to gearcase
28 0321738 Washer, seal, shift rod
29 0437288 Bearing assembly, propeller shaft
30 0336206 Screen, intake
30 0336206 Screen, intake This part replaces 0336202.
31 0303347 "o" ring, lower bearing
32 0330441 Thrust washer, lower
33 0327716 Thrust washer, upper
34 0301877 O ring shift rod
35 0388027 Thrust bearing, pinion
36 0329217 Screw, retainer
37 5007582 Anode kit This part replaces 0434029.
38 0333677 Screw
39 0304454 Lock washer
40 0338518 O ring, bearing housing
41 0319684 Thrust washer
42 0337019 Lever, shifter
43 0392475 Gear bushing assy., forward
44 0302504 Pin, connector, shift rod
45 0319635 Bushing, reverse gear
46 0319747 Retaiining ring
47 0319746 Retainer plate, housing
48 0331479 Pin, cam follower
49 0331465 Nut, shift rod connector
50 0339567 Driveshaft, e,r models
51 0395289 Impeller key assy
52 0344470 Key, impeller This part replaces 0330619.
53 0328755 Plate, impeller housing
54 0554545 "o" ring, small
55 0328725 Screw, cover to gearcase
56 0339720 Impeller housing
57 0328754 Bushing, impeller housing
58 0301877 O ring shift rod
59 0325537 Gasket, plate to gearcase
60 0328753 Seal, impeller housing to plate
61 0360633 Cup, impeller housing This part replaces 0328751.
62 0319891 Nut
63 0320785 Cotter pin
64 0340811 Grommet
65 0335420 Bushing, thrust
66 0325624 Connector, shift rod
67 0176424 Propeller, 10 1 2 x 12 x 4 al
67 0176425 Propeller, 10 1 2 x 14 x 4 al
68 0332542 Converging ring
69 0392881 Bushing assy, prop. sst
69 0386638 Bushing assy, prop. alum
70 0323943 Spacer
71 0325625 Keeper, shift rod
72 0342370 Seal, gearcase to exhaust housing
76 0337096 Screw, gearcase to housing, m8
0437906 0437906 Extension kit assy.
0339569 0339569 Shift rod, upper
50 0339348 Driveshaft
64 0340811 Grommet
73 0339974 Adapter
74 0304174 "o" ring, tube adapter
75 0339973 Extension housing
76 0337096 Screw, gearcase to housing, m8
77 0340644 Screw, gearcase extension, m8
78 0338921 Screw, extension, m8
79 0340811 Grommet
80 0437907 Water pump repair kit, includes impeller hou ing
81 0437909 Chrome pump kit
82 0396351 Gearcase seal kit
