EVINRUDE-JOHNSON 438084 Swivel Bracket | 30 In. Models

Write a Review
$1,665.99
SKU:
438084
Schematic Object Key:
1

EVINRUDE-JOHNSON 438084 Swivel Bracket | 30 In. Models

$1,665.99

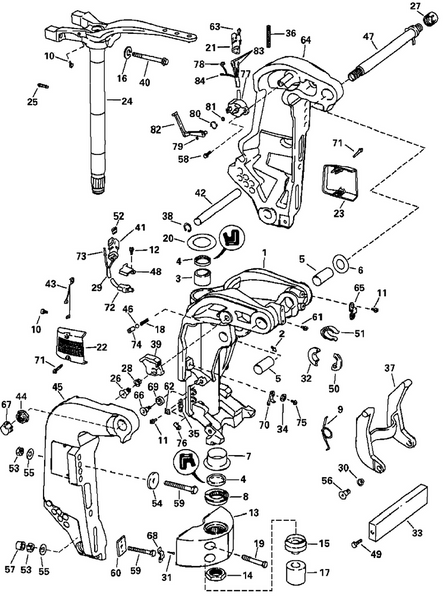

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 438084 Swivel Bracket | 30 In. Models

Schematic Object Key : 1

Product Description: Swivel Bracket | 30 In. Models

Category: EVINRUDE / 2005 / 225 / E225FPZSOE / MIDSECTION

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0434691 Support pivotant 20 in. models
1 0434724 Support pivotant 25 in. models
1 0438084 Swivel bracket 30 in. models
2 0313607 Lube fitting
3 0320962 Bushing
4 0335686 Joint
5 0337579 Bushing, lower pivot shaft
6 0910992 Rondelle, tube de relevage
7 0336819 Bushing, lower pivot shaft
8 0327696 Keeper, pivot shaft
9 0336210 Spring, trail lock spring
10 0335200 Bonding lead
11 0335200 Bonding lead
12 0335200 Bonding lead
13 0340006 Bracket, mount 20 in. models
13 0338744 Mount bracket 25 30 in. models
14 0320746 Ecrou, support de montage
15 0912233 Dispositif de retenue, joint arbre d'articulation 25 30 in. models
16 0322624 Washer, lag screw This part replaces 0313169.
17 0911312 Joint, arbre d'articulation 25 30 in. models
18 0336230 Ressort, dispositif de blocage, verrouillage de relevage
19 0334936 Screw, mount
20 0320866 Rondelle de butée, arbre d'articulation
21 0514686 Connecteur, 3 broches
22 0335474 Cache, support arrière, tribord optional
23 0335475 Cache, support arrière, bâbord optional
24 0439471 Steering arm assembly 200fsl model
24 0437698 Steering arm assembly 25 in. models
24 0437699 Steering arm assembly 30 in. models
24 0434164 Steering arm assembly 200fpl, 200fhl, 225fpl, and 225fhl models, new p n for 2004
25 0123692 Connecteur, flexible, pression d'eau 20 in. models
26 0335481 Screw, tilt lever to bracket
27 0337586 Ecrou racleur
28 0335486 Bague, levier de relevage
29 0512937 Sleeve
30 0335701 Bushing, trail lock lever
31 0319886 Screw
32 0337592 Collar, cam, tilt limit switch
33 5010190 Anode kit This part replaces 0433580.
34 0328702 Washer
35 0336467 Retainer, support
36 0513817 Braided sleeve
37 0335470 Arm, trail lock
38 0336529 Anneau de retenue, tige de correction d'assiette
39 0335485 Lever, tilt lock
40 0912345 Screw, upper mount
41 0514696 Connector, 2 pin receptacle
42 0336525 Rod, trim limiter
43 0584262 Lead assy, ground
44 0335554 Locknut, tilt tube
45 0351922 Stern bracket, starboard This part replaces 0336506.
46 0336209 Ball, detent, tilt lock
47 0435007 Tilt tube assembly
48 0336171 Bracket, tilt limit switch
49 0324816 Screw, anode
50 0337593 Collar, cam, tilt limit switch
51 0337591 Cam, tilt limit switch
52 0514697 Lock wedge, 2 pin
53 0363254 Nut, stern bracket screw This part replaces 0313623.
54 0307238 Rondelle
55 0320248 Rondelle, écrou
56 0335487 Screw, trail lock lever
57 0318572 Bolt thread protective cap 1 2 in.
58 0328744 Screw, clamp 1 4 20 x .75
59 0318573 3.5" bolt This part replaces 0327053.
59 0318573 3.5" bolt
59 0363012 Screw, bracket mounting This part replaces 0336676.
59 0331578 Engine mount bolt 5 x 1 2 in.
59 0363011 Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm This part replaces 0321577.
60 0318272 Nut backing plate square 1 2 in.
61 0335200 Bonding lead
62 0336853 Attache, vis, dispositif de retenue
63 0514682 Lock wedge, 3 pin
64 0351921 Stern bracket, port This part replaces 0336505.
65 0513787 Dispositif de retenue, interrupteur limiteur de relevage
66 0335487 Screw, trail lock lever
67 0317894 Cap, tilt tube
68 0318273 Bolt hex retainer 1 2 in.
69 0335949 Rouleau de butée
70 0336172 Dispositif de retenue, bras transport sur remorque
71 0337580 Screw, cover optional
72 0586405 Switch assembly, tilt limit
73 0514679 Borne, broche
74 0334241 Guide
75 0342191 Screw, cam
76 0335814 Retainer, trail lock
77 0587144 Sending unit assembly This part replaces 0586408.
78 0513871 Borne, anneau
79 0511527 Retainer
80 0511528 Spring
81 0320689 Ecrou
82 0342386 Arm
83 0514679 Borne, broche
84 3854047 Borne, anneau This part replaces 0913927.
