EVINRUDE-JOHNSON 438544 Impeller Housing

Write a Review
$16.99
SKU:
438544-OMC
Schematic Object Key:
59

EVINRUDE-JOHNSON 438544 Impeller Housing

$16.99

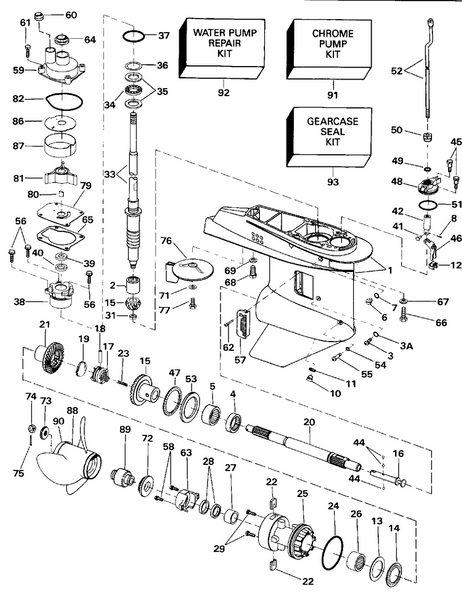

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 438544 Impeller Housing

Schematic Object Key : 59

Replacement: This part (438544) replaces 0435594.

Product Description: Impeller Housing

Category: EVINRUDE / 1993 / 40 / E40TELETB 1993 / GEARCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0435279 0435279 Gearcase assy
0435280 0435280 Gearcase assy
1 0435275 Gearcase bearing assy
2 0382343 Bearing, pinion
3 0324852 Retaining screw seal
3A 0332584 Washer, seal ring
4 0432264 Bearing assy, fwd gear
5 0382407 Bearing assy, forward gear
6 0309243 Plug, fill drain, upper
7 0336982 O ring
8 0306376 Cotter pin
10 0318544 Screw, fill drain
11 0311598 Seal
11 0333572 O ring
12 0332507 Cradle, shift
13 0332514 Thrust washer
14 0397537 Bearing, rev gear thrust
15 0397627 Gear set, forward
16 0332503 Shaft, shift
17 0332491 Clutch dog
18 0320310 Pin, clutch dog
19 0320311 Spring, clutch dog pin
20 0439138 Propeller shaft assy This part replaces 0397541.
21 0332489 Gear, reverse
22 0332495 Retainer plate, bearing housing
23 0332484 Spring, shift shaft detent
24 0553126 O ring, bearing housing
25 0432276 Bearing housing assy.
26 0386764 Bearing assy, front
27 0386765 Bearing assy, rear
28 0321467 . oil retainer
29 0328744 Screw, clamp 1 4 20 x .75
31 0313339 Nut, pinion to driveshaft
33 0438398 Driveshaft assy This part replaces 0435268.
33 0438399 Driveshaft assy This part replaces 0435269.
34 0398901 Bearing, driveshaft thrust
35 0333771 Thrust washer
36 0313273 Shim, 0.003 in. 0,07mm
36 0313274 Shim, 0.004 in. 0,10mm
36 0313275 Shim, 0.005 in. 0,12mm
36 0313276 Shim, 0.006 in. 0,14mm
36 0313277 Shim, 0.007 in. 0,16mm
37 0310327 "o" ring, gearcase head
38 0435274 Bearing housing assy.
39 0332205 Seal, adapter
40 0321466 . oil retainer, driveshaft
41 0302504 Pin, connector, shift rod
42 0332508 Connector, shift rod
44 0316506 Ball, detent
45 0316037 Screw, cover to gearcase
46 0332492 Lever, shift
47 0397538 Bearing, fwd gear thrust
48 0434588 Cover, shift rod
49 0318372 "o" ring, shift rod
50 0333780 Bushing, shift rod
51 0338522 O ring, cover to gearcase
52 0332509 Shift rod
52 0332510 Shift rod
53 0333725 Thrust washer, forward gear
54 0317178 O ring
55 0333770 Screw, shift lever
56 0317624 Screw, driveshaft hsg
57 0332494 Screen
58 0328694 Screw, bracket
59 0438544 Impeller housing This part replaces 0435594.
60 0333758 Grommet, water tube
61 0302325 Screw, impeller housing
62 0325539 Screw, sceen to gearcase
63 0398873 Anode ay
64 0341732 Grommet, housing This part replaces 0315748.
65 0336530 Gasket
66 0305282 Bolt, bowl suction piece
67 0330266 Washer, trail lock lever
68 0313697 Scr,grc to hsg.long
69 0330265 Washer
71 0330266 Washer, trail lock lever
72 0320305 Thrust bushing
73 0315810 Spacer, impeller nut
74 0314503 Nut, impeller
75 0314502 Cotter pin
76 0340539 Trim tab, gearcase This part replaces 0332475.
77 0330930 Screw, plate 3 8 16 x 1 This part replaces 0335021.
79 0341038 Plate, impeller housing This part replaces 0336251.
79 0341187 Plate This part replaces 0336723.
80 0334897 Cam, impeller to driveshaft
81 0432941 Impeller
82 0324981 Seal, impeller housing
86 0321940 Plate
86 0315145 Plate, chrome
87 0324980 Linder, impeller housing
87 0319587 Cup,impeller hsg
88 0386841 Propeller
88 0386786 Propeller, 11 3 4 x 15
89 0386787 Propeller bushing assy
90 0332543 Converging ring
91 0434590 Chrome pump kit
92 0438592 Water pump repair kit This part replaces 0433548.
92 0438592 Water pump repair kit This part replaces 0433549.
93 0433550 Gearcase seal kit
