EVINRUDE-JOHNSON 439893 Nipple Assy.

Write a Review
$33.99
SKU:
439893
Schematic Object Key:
35

EVINRUDE-JOHNSON 439893 Nipple Assy.

$33.99

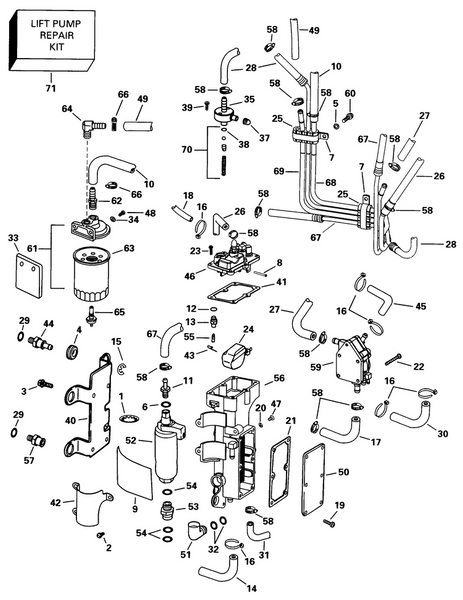

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 439893 Nipple Assy.

Schematic Object Key : 35

Product Description: Nipple Assy.

Category: JOHNSON / 1998 / 175 / J175FTLECS 1998 / FUEL COMPONENTS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0330523 Retaining ring
2 0332226 Screw, air temperature sensor This part replaces 0333673.
3 0328744 Screw, clamp 1 4 20 x .75
4 0329518 Grommet, esm mounting
5 0328702 Washer
6 0324660 O ring
7 0344212 Clamp, grommet, fuel lines
8 0344208 Float hinge pin
9 0343938 Sleeve, fuel pump
10 HOSE, Tube to filter inlet, 12 1/2 in. (318 mm)
11 0343934 Nipple, fuel outlet
12 0915882 Gasket, float needle seat
13 0344209 Seat, float needle
14 HOSE, Water, reservoir to tee,40 in. (1016mm)
15 0510487 Retaining ring
16 0320107 Tie strap
17 HOSE, Inlet tube to lift pump, 10 in. (254mm)
18 HOSE, Vapor sep. to port intake manifold nipp e, 12 in. (305mm)
19 0915957 Screw, cover
20 0305739 "o"ring,valve seat
21 0343915 Gasket, water cover
22 0314417 Screw, pump to base
23 0915957 Screw, cover
24 0915880 Float
25 0344235 Grommet, fuel tubes
26 0344578 Hose, tube to vapor separator
27 0343942 Hose, lift pump outlet to tube
28 0439172 Tube hose assy., injector return to pressur regulator
29 0324660 O ring
30 0345613 Hose, pulse nipple to lift pump, lower
31 0333635 Hose, filter to fuel manifold
32 0916017 O ring, elbow
33 0343898 Shield, fuel filter
34 0328701 Lockwasher, double ended bolt
35 0439893 Nipple assy.
37 0126341 Cap
38 0335230 O ring
39 3853620 Screw, circuit breaker This part replaces 0915982.
40 0343926 Bracket, vapor separator
41 0343918 Gasket, vapor separator cover
42 0343935 Clamp, fuel pump
43 0915884 Clip, needle to float
44 0343903 Nipple, mount, pulse hose fuel bracket, por
45 0334131 Hose
46 0439572 Cover assy., vapor separator
47 0327116 Screw, plug
48 0328744 Screw, clamp 1 4 20 x .75
49 0343946 Hose, blow off valve to head, port
50 0343914 Cover, water chamber
51 0343909 Elbow, fuel reservoir
52 5000334 Fuel pump, high pressure
53 5000336 Nipple o ring kit, fuel pump
54 0916017 O ring, elbow
55 0915883 Needle, float
56 0438934 Fuel reservoir
57 0343904 Nipple, mount, starboard
58 0343765 Clamp, lift pump
59 0439849 Lift pump assy.
60 0335200 Bonding lead
61 0438622 Fuel filter assy.
62 0173312 Nipple, water 3 8 in. i.d. This part replaces 0123200.
63 0438645 Filter
64 3853598 Elbow, hose to reservoir This part replaces 0915946.
65 0438644 Sensor assy.
66 0343765 Clamp, lift pump
67 0439171 Tube hose assy., fuel pump to injectors
68 0344238 Tube, lift pump to filter, inlet
69 0344239 Tube, filter outlet to vapor sep.
70 0438816 Repair kit, fuel pressure regulator includes 38
71 0439849 Lift pump assy. This part replaces 0438815.
71 0439881 Lift pump repair kit
