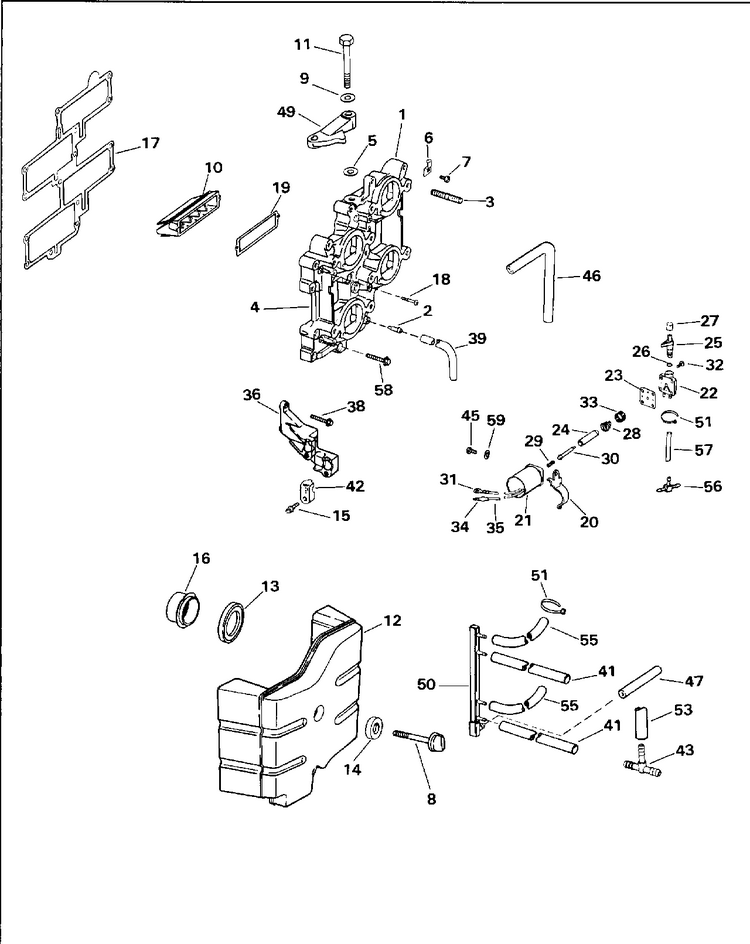

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 8
Replacement: This part (439922) replaces 0436547.
Product Description: Fastener, Air Silencer
Category: JOHNSON / 1994 / 140 / J140TLARR 1994 / INTAKE MANIFOLD - "C, E, M, R" SUFFIX MODELS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0437337 | Intake manifold assy. | This part replaces 0436856. |
1 | 0436825 | Intake manifold assy. | |
2 | 0325659 | Fitting | |
3 | 0310872 | Stud | |
4 | 0328789 | Fitting, primer | |
5 | 0320744 | Washer, stud | |
6 | 0340411 | Timing pointer, manifold | |
7 | 0310379 | Screw | |
8 | 0439922 | Fastener, air silencer | This part replaces 0436547. |
9 | 0127386 | Rondelle | This part replaces 0341381. |
10 | 0396201 | Leaf plate assy. | |
10 | 0397336 | Leaf plate assy. | |
11 | 0347338 | Screw, cam to c c | This part replaces 0332353. |
12 | 0436997 | Cover assy., air silencer | |
13 | 0339581 | Seal, air silencer to carburetor | |
14 | 0340840 | Seal | |
15 | 0328725 | Screw, cover to gearcase | |
16 | 0339842 | Sleeve, air silencer | |
17 | 0328622 | Gasket, manifold to crankcase | |
18 | 0321707 | Screw, leaf plate | |
18 | 0332265 | Screw, cover to base, long | |
19 | 0328626 | Gasket, leaf plate | |
19 | 0332266 | Gasket, leaf plate | |
20 | 0340381 | Bracket, primer solenoid | |
21 | 0435948 | Solenoid assy., primer | |
22 | 0511807 | Cover gasket ay | |
23 | 0333448 | Gasket | |
24 | 0511809 | Plunger | |
25 | 0175158 | Manual valve | |
26 | 0331365 | O ring | |
27 | 0126341 | Cap | |
28 | 0511986 | Spring valve | |
29 | 0511987 | Spring, plunger | |
30 | 0333447 | Valve, plunger | |
31 | 0510818 | Terminal, ring | |
32 | 0330121 | Screw, cover to housing | |
33 | 0332365 | Filter, valve housing | |
34 | 0512947 | Terminal, bullet | |
35 | 0513185 | Sleeve | |
36 | 0340132 | Block, trunnion | |
37 | 0307471 | Screw | |
38 | 0324430 | Screw, anode | |
39 | 0344783 | Hose, air silencer drain | This part replaces 0340716. |
41 | 0339747 | Hose, fuel manifold to 2, 4, 6, 8 carbur etors | |
42 | 0329271 | Clamp, trunnion cable | |
43 | 0329603 | Tee, fuel hose | |
44 | 0330118 | Clamp | |
45 | 0331036 | Screw | |
46 | HOSE, Vent, 22 in. | ||
47 | 0339768 | Hose, manifold to tee | |
49 | 0333094 | Throttle cam | |
50 | 0435898 | Fuel manifold | |
51 | 0317893 | Tie strap | |
52 | 0320107 | Tie strap | |
53 | 0333396 | Hose, tee to primer | |
55 | 0339746 | Hose, diaphragm to emm | |
56 | 0325569 | Tee, primer solenoid hoses | |
57 | HOSE, Primer to port upper tee, 14 in. | ||
57 | HOSE, Primer to stbd. upper tee, 18 in. | ||
57 | HOSE, Port tee to #1, 1 1/2 in. | ||
57 | HOSE, Stbd. tee to #2, 1 1/2 in. | ||
57 | HOSE, Port tee to #3, 9 in. | ||
57 | HOSE, Stbd. tee to #4, 9 in. | ||
58 | 0307471 | Screw | |
58 | 0307471 | Screw | |
58 | 0322906 | Screw, intake, long | |
59 | 0328735 | Washer, screw, ball joint |
