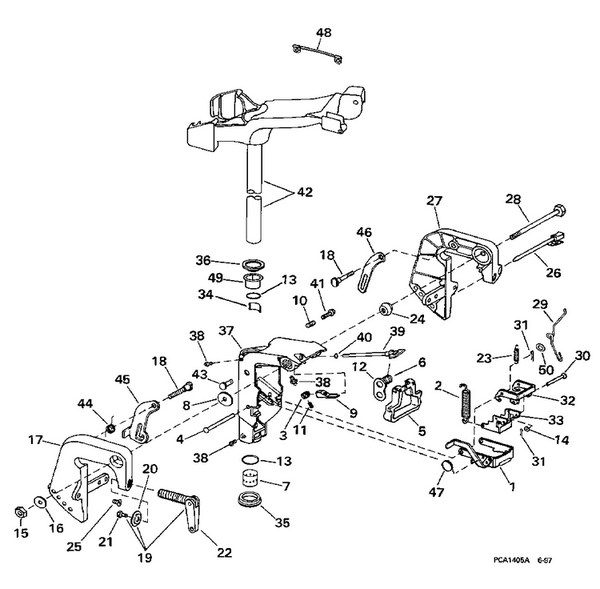

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 36
Product Description: Washer & Seal, Thrust
Category: JOHNSON / 1998 / 5 / BJ5FRBLECC 1998 / MIDSECTION
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0391317 | Link, shallow water drive | |
| 2 | 0441186 | Spring, reverse lock | |
| 3 | 0324586 | Lever, reverse lock release | |
| 4 | 0324583 | Pin, reverse lock | |
| 5 | 0394907 | Carrying handle | |
| 6 | 0330250 | Spring, carrying handle | |
| 7 | 0334360 | Bushing, lower, swivel bracket | |
| 8 | 0304278 | Washer | |
| 9 | 0324584 | Spacer, reverse lock release | |
| 10 | 0551113 | Ressort de friction de direction | |
| 11 | 0324967 | Screw | |
| 12 | 0336559 | Bracket, chain | |
| 13 | 0554545 | "o" ring, small | |
| 14 | 0303715 | Washer, rivet | |
| 15 | 0307160 | Locknut | |
| 16 | 0312874 | Spring washer, strg. handle | |
| 17 | 0335892 | Stern bracket assy, stbd. | |
| 18 | 0328895 | Screw, tilt lock | |
| 19 | 0433675 | Clamp scr. hand. assy. | |
| 19 | 0391421 | Clamp screw handle | |
| 20 | 0337017 | Plate, swivel | |
| 21 | 0321922 | Screw, shoulder | |
| 22 | 0398001 | Handle rivet | |
| 23 | 0202021 | Spring, link to shallow water drive | |
| 24 | 0301983 | Conicak washer,stern brkt | |
| 25 | 0901889 | Screw | |
| 26 | 0432453 | Knob tilt pin assy. | |
| 27 | 0335891 | Stern bracket assy, port | |
| 28 | 0336158 | Bolt, tilt | |
| 29 | 0324588 | Link , reverse lock arm | |
| 30 | 0324582 | Pin, link locking lever | |
| 31 | 0305650 | Cotter pin | |
| 32 | 0324580 | Link, reverse lock | |
| 33 | 0324581 | Lever, reverse lock | |
| 34 | 0441179 | Friction plate, pad bushing assy. | |
| 35 | 0324576 | Washer, thrust, seal pivot tube | |
| 36 | 0441180 | Washer seal, thrust | |
| 37 | 0441098 | Swivel bracket assy. | |
| 38 | 0313607 | Lube fitting | |
| 39 | 0433896 | Knob shaft assy | |
| 40 | 0202893 | "o" ring, drive shaft | |
| 41 | 0324603 | Screw, cover to base | |
| 42 | 0440169 | Steering bracket | |
| 43 | 0329531 | Pin, tilt arm | |
| 44 | 0329002 | Spring, tilt lock link | |
| 45 | 0328999 | Arm, tilt lock starboard | |
| 46 | 0328998 | Arm, tilt lock port. | |
| 47 | 0324355 | Spring, shallow water drive | |
| 48 | 0584472 | Bonding lead | |
| 49 | 0441178 | Bushing, pivot tube to swivel bracket | |
| 50 | 0303887 | Washeer, pin to swivel bracket |
