EVINRUDE-JOHNSON 446074 Seal, Exhaust Tube

Write a Review
$14.99
SKU:
446074

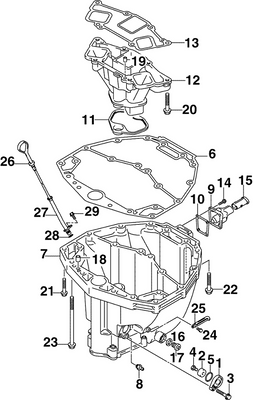

Schematic Object Key:
22

EVINRUDE-JOHNSON 446074 Seal, Exhaust Tube

$14.99

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 446074 Seal, Exhaust Tube

Schematic Object Key : 22

Product Description: Seal, Exhaust Tube

Category: JOHNSON / 1996 / 8 / BJ8FRBEDC 1996 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0449503 Cylinder crankcase assy.
2 0446047 Screw, block
3 0446048 Pin, dowel
4 0446046 Screw, cylinder to crankcase
5 0446108 Sleeve, dipstick
6 0445139 Cover, thermostat This part replaces 0449508.
7 0445002 Cylinder head seat assy.
9 0446046 Screw, cylinder to crankcase
10 0434671 Vernathern
11 0446801 Gasket, cylinder head This part replaces 0446114.
12 0446004 Seal, cover, cylinder head
13 0336179 Spring
14 0446009 Screw, reed stop
15 0449537 Spark plug, champion, rp10hc This part replaces 0445098.
16 0445037 Pressure switch
17 0336211 Spring, relief
18 0435957 Diaphragm
19 0336183 Cup
21 0445011 Tube assy., exhaust
21 0445095 Tube assy., exhaust
22 0446074 Seal, exhaust tube
23 0446075 Gasket, exhaust tube to cyl. head
24 0446081 Relief valve
25 0446080 Spring, relief valve
26 0445097 Housing, relief valve
27 0446311 Clamp, oil hose to housing
28 0446085 Hose, oil suction
29 0338520 Filter screen
30 0446046 Screw, cylinder to crankcase
31 0446001 Cover assy., breather
32 0446046 Screw, cylinder to crankcase
33 0445020 Dipstick, oil
34 0446032 Screw, power pack
35 0446082 Seal, housing, relief valve
36 0446008 Screw, rectifier to crankcase, short
37 0336185 Washer
38 0446065 Gasket, intake manifold
39 0446111 O ring, oil fill plug
40 0446110 Plug, oil fill
41 0446117 Screw, cylinder head
42 0446121 Washer, cylinder head to block
44 0446064 Intake manifold
45 0445083 Tube assy., exhaust probe
46 0341196 Cap, exhaust probe
47 0115499 Clamp, hose
48 0446071 Gasket, thermostat cover
51 0446314 Screw, exhaust tube to cyl. head
52 0446068 Screw, intake to cylinder head
53 0446119 Screw, cyl. head to cyl. block
55 0446120 Screw, cyl. head to cyl. block
57 HOSE, Overboard indicator, 11 13/16 in. (300 m)
58 0446113 O ring, cylinder head to block
60 0446000 Cover, cylinder head
61 0446002 Seal, cover, breather
62 0446003 Mesh, breather
63 0446005 Plate
64 0446006 Reed, breather
65 0446007 Stop, reed
66 0445044 Cover lead assy.
67 0446166 Cover, oil switch
68 0510780 8 ring termianl
69 0512947 Terminal, bullet
70 0513185 Sleeve
72 0320107 Tie strap
73 0307551 Screw
74 0311598 Seal
76 0446116 Stud, intake manifold
77 0336178 Housing, thermostat
78 0446107 Pin, dowel, bracket to crankcase
79 0446109 Pin, dowel, cylinder head
80 0446112 Pin, dowel, cylinder head
81 0446078 Washer, exhaust tube
82 HOSE, Breather, 24 1/2 in. (610mm)
83 0446283 Extension
84 HOSE, Thermostat to oil sump, 17 in. (430mm)
85 0445100 Temperature switch assy.
86 0446372 Grommet, temperature switch
87 0329562 Cache, interrupteur
88 0513357 Connector, 1 pin receptacle
89 0511469 Terminal, pin
