EVINRUDE-JOHNSON 449509 Ring Set, 0.5Mm O.S.

Write a Review
$33.99
SKU:
449509
Schematic Object Key:
2

EVINRUDE-JOHNSON 449509 Ring Set, 0.5Mm O.S.

$33.99

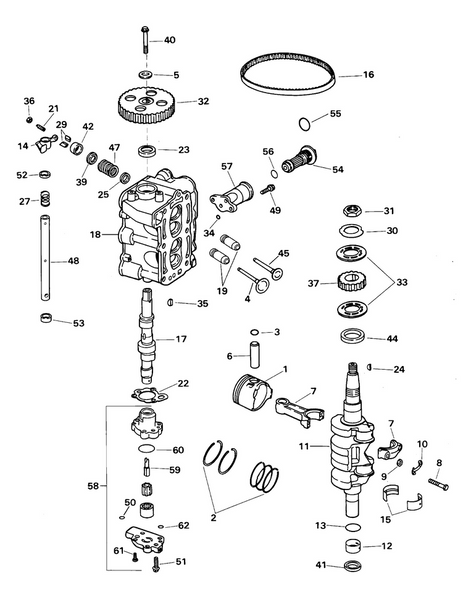

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 449509 Ring Set, 0.5Mm O.S.

Schematic Object Key : 2

Product Description: Ring Set, 0.5Mm O.S.

Category: EVINRUDE / 2001 / 8 / E8R4SIE 4-stroke, rope start, tiller, 15 in shaft 2001 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0446051 Piston assy., standard
1 0449510 Piston assy., 0.5mm o.s.
2 0449500 Ring set, standard
2 0449509 Ring set, 0.5mm o.s.
3 0446055 Retaining ring
4 0446024 Valve, intake
5 0446184 Washer, screw, camshaft pulley
6 0446054 Wrist pin
7 0445010 Connecting rod assy.
8 0446061 Screw, rod cap
9 0446105 Washer
10 0446062 Tab, locking
11 0446049 Crankshaft
12 0446273 Sleeve, lower
13 0446274 O ring, sleeve
14 0446025 Arm assy., rocker
15 0446050 Bearing assy., main
16 0446091 Belt, drive
17 0445122 Camshaft assy.
18 0445130 Cylinder head seat assy.
19 0337186 Guide, valve
21 0446017 Screw, cylinder valve adjustment
22 0446031 Gasket, oil pump to cylinder head
23 0446033 Seal, oil, camshaft
24 0446097 Key, crankshaft
25 0446022 Seat, valve spring
27 0446029 Spring, shaft, rocker arm
29 0446020 Keeper, valve
30 0446096 Plate, lock, camshaft pulley
31 0446095 Nut, pulley to crankshaft
32 0446093 Pulley, cam
33 0446094 Guide, belt, pulley
34 0446041 O ring, oil inlet
35 0446337 Key, pulley to camshaft
36 0446018 Nut, adjustment screw, rocker arm
37 0446092 Pulley, belt drive, crankshaft
39 0446019 Retainer, valve spring
40 0446099 Screw, bracket
41 0446207 Seal, crankshaft, lower
42 0337237 Seal, valve
44 0446058 Seal, crankshaft, upper
45 0446023 Valve, exhaust
47 0446021 Spring, valve
48 0446807 Shaft, rocker arm This part replaces 0445004.
49 0446032 Screw, power pack
50 0446041 O ring, oil inlet
51 0446032 Screw, power pack
52 0446027 Spacer, rocker arm, short
53 0446028 Spacer, rocker arm
54 0449534 Filter o ring assy.
55 0446209 O ring, cover to housing
56 0446210 O ring, filter to housing
57 0446063 Housing, filter
58 0445005 Pump assy., oil
59 0446037 Shaft, oil pump
60 0446040 O ring, cover to housing
61 0446043 Screw, cover to housing
62 0446041 O ring, oil inlet
