EVINRUDE-JOHNSON 5000616 Driveshaft Assy., Upper

Write a Review
$561.99
SKU:
5000616
Schematic Object Key:
58

EVINRUDE-JOHNSON 5000616 Driveshaft Assy., Upper

$561.99

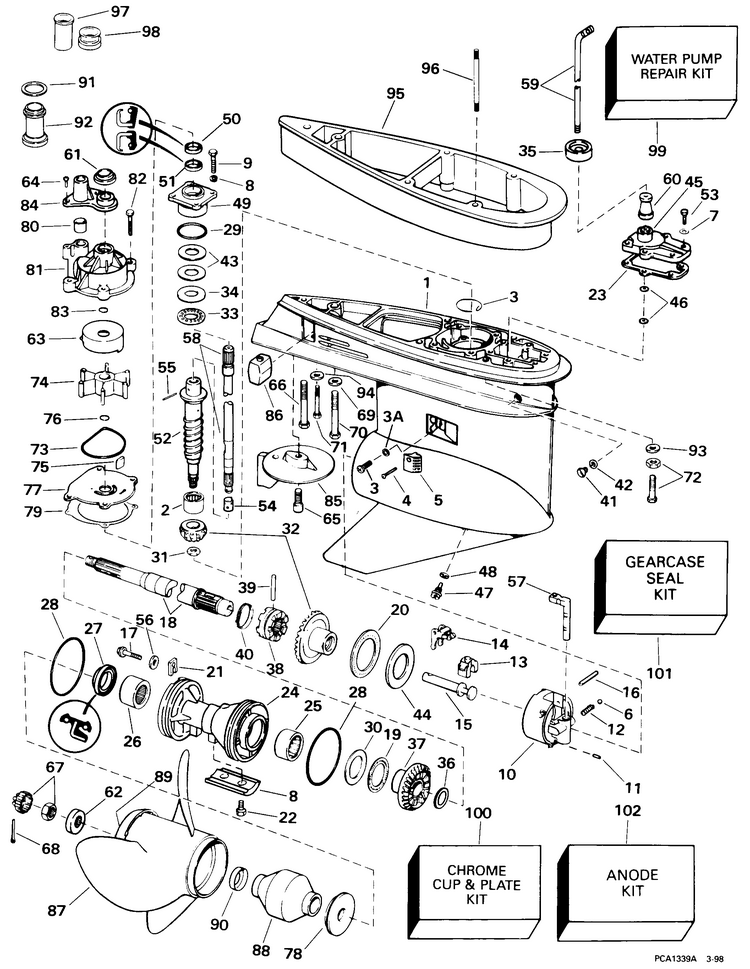

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5000616 Driveshaft Assy., Upper

Schematic Object Key : 58

Replacement: This part (5000616) replaces 0439583.

Product Description: Driveshaft Assy., Upper

Category: JOHNSON / 1998 / 105 / SJ105RWYH 1998 / GEARCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0439506 0439506 Gearcase assy., complete
0439982 0439982 Gearcase assy., complete
1 5007022 Gearcase bearing assembly This part replaces 0438048.
1 5007022 Gearcase bearing assembly This part replaces 0439972.
2 0387817 Bearing, pinion
3 0338778 Retaining ring
3 0324852 Retaining screw seal
3A 0332584 Washer, seal ring
4 0337061 Screw, water intake screens
5 0337778 Screen
6 0160084 Ball
7 0328702 Washer
8 0431708 Anode, bearing housing
9 0317624 Screw, driveshaft hsg
10 0389455 Bearing hsg assy, fwd gear
11 0331880 Pin, housing to gearcase
12 0911962 Spring
13 0334163 Cradle, shifter
14 0322938 Lever, shift
15 0322941 Arbre, commande de sens de marche
16 0328825 Pin, shift lever
17 0350271 Screw This part replaces 0341541.
18 5004765 Propeller shaft This part replaces 0435022.
19 0382408 Thrust bearing
20 0389042 Thrust bearing assembly, foward gear
21 0333957 Languette, de retenue
22 0908158 Screw, anode
23 0352165 Gasket, shift rod cover This part replaces 0324670.
24 5004257 Bearing housing seal assy. This part replaces 0438040.
25 0382407 Bearing assy, forward gear
26 0436752 Bearing, propshaft
27 0341281 Seal
28 0305123 O ring
29 0354731 O ring This part replaces 0314728.
30 0314731 Rondelle de butée, engrenage de marche arrière
31 0314730 Nut, pinion to driveshaft
32 0435123 Gear pinion assy.
33 0387656 Butée, arbre d'entraînement
34 0327656 Rondelle de butée, arbre d'entraînement
35 0321008 Grommet, exh hsg to shift rod
36 0336565 Thrust washer
37 0336574 Gear, reverse
38 0337774 Shifter, clutch dog
39 0313448 Pin, clutch dog
40 0324369 Spring, clutch dog pin
41 0318544 Screw, fill drain
42 0311598 Seal
43 0323362 Cale, 0,003" 0,07 mm
43 0323361 Cale, 0,004" 0,10 mm
43 0314745 Cale, 0,005" 0,12 mm
44 0397566 Thrust washer, forward gear
45 5006241 Couvercle joint, tige de commande de sens de marche This part replaces 0435482.
46 0318372 "o" ring, shift rod
47 0318544 Screw, fill drain
48 0311598 Seal
49 0439476 Bearing housing seal
50 0329922 Joint, supérieur
51 0329923 Joint, inférieur
52 0345905 Driveshaft, lower This part replaces 0335677.
53 0302325 Screw, impeller housing
54 0338504 Retainer, driveshaft
55 0311538 Roll pin, driveshaft
56 0328743 Rondelle
57 0915954 Detent, shifter This part replaces 0323946.
58 5000616 Driveshaft assy., upper This part replaces 0439583.
58 5000621 Driveshaft assy., upper This part replaces 0439584.
59 0342994 Shift rod
59 0342249 Shift rod
60 0328019 Spacer, shift rod
61 0320943 Bague, pompe vers carter d'échap.
62 0320570 Spacer, nut
63 0338486 Coupelle, turbine inox
63 0338551 Coupelle, turbine chrome
64 0306643 Screw
65 0313715 Screw, cap, hex hd, 7 16 14 x 1
66 0330263 Screw, upper mount retention
66 0333278 Screw, gearcase to housing, rear
67 5008966 Nut keeper, propeller This part replaces 0398042.
68 0306394 Cotter pin
69 0330265 Washer
70 0331998 Screw, gearcase to housing
70 0333279 Screw, gearcase to housing
71 0341219 Screw, anode
72 0331999 Screw, gearcase housing
72 0307160 Locknut
73 0331353 Seal, impeller housing plate.
74 5001593 Impeller assembly This part replaces 0435821.
75 0331107 Clavette, turbine
76 0302035 "o" ring, spacer to imp. hsg.
77 0338485 Plate, impeller
77 0338552 Plate, impeller
78 0126870 Bague, de butée
78 0127212 Bague, de butée
79 0338484 Gasket, imp. hsg. plate
80 0314008 Bague, tube à eau vers capot
81 0360347 Housing, impeller This part replaces 0435959.
82 0302325 Screw, impeller housing
83 0331188 O ring
84 0338893 Capot, carter de turbine
85 0338742 Compensateur de dérive
86 0436745 Anode
87 0389924 Prop, 14 1 2 x 19 sst
88 0387157 Bushing assy, prop, std
88 0175401 Bushing assy, prop, sst
89 0332394 Converging ring
90 0313926 Propeller hub sleeve
91 0333272 Seal, spacer to housing
92 0333275 Spacer, impeller housing
93 0308688 Washer
94 0307161 Lock washer, anode
95 0334552 Extension, gearcase
96 0333270 Stud, exhaust housing
97 0354580 Sleeve, extension This part replaces 0338636.
98 0338601 Grommet, sleeve to exh hsg
99 5001595 Water pump repair kit This part replaces 0435929.
100 0435526 Chrome cup plate kit
102 0392160 Anode kit
