EVINRUDE-JOHNSON 5004931 Cylinder Head, Port, 200

Write a Review
$575.99
SKU:
5004931
Schematic Object Key:
47

EVINRUDE-JOHNSON 5004931 Cylinder Head, Port, 200

$575.99

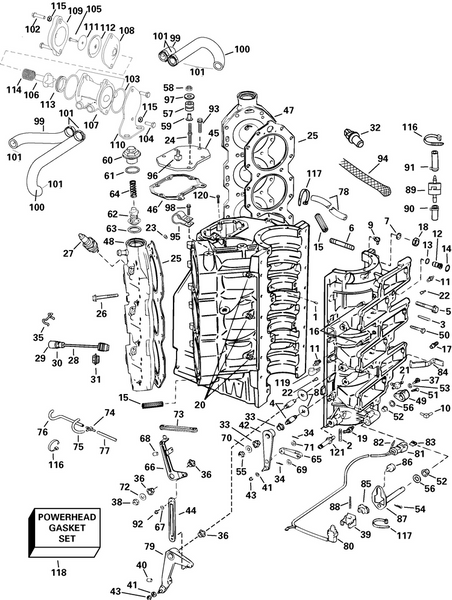

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5004931 Cylinder Head, Port, 200

Schematic Object Key : 47

Product Description: Cylinder Head, Port, 200

Category: EVINRUDE / 2005 / 250 / E250FCXSOB / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0304178 Pin, dowel
2 0314616 Stud
3 0331095 Pin, c c taper
4 0338653 Stud, shift throttle levers
5 0914024 Screw, c c to block
6 0348843 Stud, c c to block
7 0330265 Washer
8 0320744 Washer, stud
9 0321598 Crankcase fitting
10 0348471 Fitting, oil recirculation elbow
11 0436194 Check valve assy.
12 0436385 Check valve assy
13 0324660 O ring
14 0340052 O ring
15 0346237 Dam, c c water
16 0345702 Fitting, cooling hose
17 0345702 Fitting, cooling hose
18 0332291 Nut, c c to block stud
19 0319253 Fitting, c c lubrication
20 5000477 Check valve, recirculation
21 0345207 Tee, lower bearing vent
22 0344821 Fitting, crankcase oil inlet
23 0332135 Plug
24 0344402 Stud, blowoff bracket
25 0346007 Gasket, cylinder head
26 0352913 Bolt, cylinder head This part replaces 0345943.
27 5001866 Spark plug qc12pep
28 0585038 Temperature switch, starboard
29 0511469 Terminal, pin
30 0513357 Connector, 1 pin receptacle
31 0329562 Cache, interrupteur
32 3010674 Engine temperature sensor
33 0308532 Bague, levier de verrouillage
34 0305650 Cotter pin
35 0512741 Retainer, connector, 1 pin
36 0308532 Bague, levier de verrouillage
37 0327590 Pin, shift lever
38 0315077 Locknut, 3 8 24 ss
39 0513134 Bracket, neutral switch
40 0318660 Bumper, screw, throttle stop
41 0328737 Washer
42 0433481 Shift arm
43 0328064 Nut
44 0331224 Link, shift lever to shift arm
45 0347318 Cover
46 0344472 Gasket, rect. reg. to cyl. block
47 5004931 Cylinder head, port, 200
47 5001486 Cylinder head, port
48 5004932 Cylinder head, stbd, 200
48 5001487 Cylinder head, stbd, 225, 250
49 0335191 Lever, shift rod
50 0324334 Screw
51 0328695 Clamp, engine cable
52 0312708 Bushing
53 0302290 Washer
54 0330145 Cotter pin
55 0315077 Locknut, 3 8 24 ss
56 0202026 Washer, rod
57 0333040 Isolator
58 0313022 Locknut, double ended bolt
59 0338558 Entretoise, à collerette
60 0344771 Cover, thermostat
61 0301917 O ring
62 5001036 Thermostat assy
63 0339299 Seal, thermostat to cyl head
64 0345171 Spring, thermostat
65 0331737 Link, shift arm
66 5001497 Throttle lever, upper
67 0328737 Washer
68 0318660 Bumper, screw, throttle stop
69 0328702 Washer
70 0330266 Washer, trail lock lever
71 0328702 Washer
72 0330266 Washer, trail lock lever
73 0346912 Link, throttle
74 0325569 Tee, primer solenoid hoses
75 0345364 Hose, check valve to tee
76 HOSE, Tee to check valve | Cut to length from, P/N 332219
77 HOSE, Mfld to tee, 1.5 in. (38mm) | Cut to length from, P/N 332219
78 HOSE, #2 Check valve to - | Cut to length from, P/N 332219
79 5005094 Throttle lever, lower
80 0586437 Switch cable
81 0514679 Borne, broche
82 0514696 Connector, 2 pin receptacle
83 0514697 Lock wedge, 2 pin
84 0334169 Clamp, hose, control valve
85 0513811 Bracket, neutral switch slider
86 0331404 Axe, interrupteur de démarrage au point mort
87 0431908 Lever, neutral switch
88 0333749 Ressort, interrupteur de démarrage au point mort
89 5009201 Check valve assembly This part replaces 0348478.
90 HOSE, Lwr brg, 1.5 in. (38mm) | Cut to length from, P/N 327228
91 HOSE, Check valve to upper brg | Cut to length from, P/N 344249
92 0328064 Nut
93 0335687 Screw, clamp 1 4 20 x .75
94 0513816 Sleeve, motor cable sending unit
95 0511411 . . clamp
96 0345702 Fitting, cooling hose
97 0328703 Washer, screw hook
98 0335200 Bonding lead
99 0347248 Hose, head to valve
100 0347247 Hose, head to valve
101 0346152 Clamp, 25.6 mm some clamps not shown for clarity.
102 0124341 Screw, cover
104 0352322 Screw, bracket cover new for 2005
105 0328649 Screw, bowl to body
106 0347238 Plunger
107 0347239 Housing
108 0347240 Plate, housing
109 0347241 Cover, housing
110 0347242 Bracket, mount
111 0347243 Support, diaphragm
113 0347245 Seal, plunger
114 0348820 Spring
116 0317893 Tie strap
117 0320107 Tie strap
118 0787131 Powerhead gasket set
119 0350368 Clamp, oil hose
120 0335200 Bonding lead
121 0329743 Stud, cover mount
