EVINRUDE-JOHNSON 5004964 Coil, Bracket

Write a Review
$12.00
SKU:
5004964
Schematic Object Key:
90

EVINRUDE-JOHNSON 5004964 Coil, Bracket

$12.00

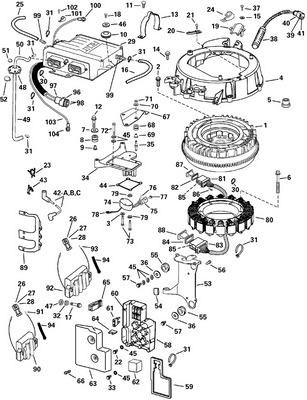

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5004964 Coil, Bracket

Schematic Object Key : 90

Product Description: Coil, Bracket

Category: EVINRUDE / 2004 / 115 / E115FSLSRE / ELECTRICAL SYSTEM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0586526 Flywheel assy
2 0336135 Screw, flywheel
3 0328703 Washer, screw hook
4 5004519 Cover assy, flywheel
5 0341613 Bague, pignon arbre vers carter moteur
6 0343525 Screw, stator
7 0328703 Washer, screw hook
8 0333040 Isolator
9 0338558 Entretoise, à collerette
10 0329518 Grommet, esm mounting
11 0332226 Screw, air temperature sensor
12 0324814 Ecrew,exhaust cover,1 1 2"long
13 0514891 Clamp, capacitor
14 0909533 Screw, adapter
15 0328735 Washer, screw, ball joint
16 0344789 Hose, ecu to 30ø fitting
17 0331025 Screw
18 0332226 Screw, air temperature sensor
19 0343468 Cover, sensor
20 0352846 Timing pointer This part replaces 0344776.
21 0315656 Screw
22 0328724 Screw
23 0350056 Retainer, high tension lead
24 0330151 Cable clamp, filter
25 0344794 Hose, water to emm from vapor sep
26 0176509 Connector, 4 pin
27 0514796 Seal, 4 pin connector
28 0127468 Lock wedge, 4 pin
29 0335328 Screw, connector
30 0317893 Tie strap
31 0320107 Tie strap
32 0328703 Washer, screw hook
33 0328724 Screw
34 0514766 Fuse, 10 amp, spare
35 0586224 Relay assy.
36 0328700 Washer
37 0315656 Screw
38 0586523 Sensor assy, crank position
39 0514679 Borne, broche
40 0514696 Connector, 2 pin receptacle
41 0514697 Lock wedge, 2 pin
42 5005810 Lead assy, ignition coil new p n for 2004
43 0350071 Retainer, high tension leads clip to injector 1 and 2 screw sleeves
44 0350357 Gasket, base plate included in powerhead gasket set.
45 0328701 Lockwasher, double ended bolt
46 0336316 Washer, screw, bracket to hood
47 0328701 Lockwasher, double ended bolt
48 5001301 Diaphragm hose assy, exhaust
49 *HOSE, Exhaust pressure inlet | (Cut to length from P/N 772572.)
50 *HOSE, Exhaust pressure to EMM | (Cut to length from P/N 772571.)
51 0346930 Clamp, 9.5mm
52 0346931 Clamp, 14mm
53 0514867 Bracket, fuse assy.
54 0343598 Bumper, bracket to block
55 0329518 Grommet, esm mounting
56 0328649 Screw, bowl to body
57 0328724 Screw
58 0586754 Power distribution panel
59 0345004 Seal, cover
60 3853299 Gasket, connector
61 0586300 Cover assy
62 0514766 Fuse, 10 amp, spare
63 0345005 Fuse, puller
64 0344233 Screw
65 3010815 Base plate
66 0346547 Bolt, double ended
67 0346538 Bracket, capacitor mounting
68 0333040 Isolator
69 0338558 Entretoise, à collerette
70 0328703 Washer, screw hook
71 0328740 Nut, throttle friction
72 0328695 Clamp, engine cable
73 0329110 Screw, clamp to cover
74 0586546 Filter assy
75 0514696 Connector, 2 pin receptacle
76 0514679 Borne, broche
77 0514697 Lock wedge, 2 pin
78 0510818 Terminal, ring
79 0328701 Lockwasher, double ended bolt
80 0586514 Stator assy
81 0176296 Connector, 8 socket
82 0514791 Seal, 8 socket
83 3010885 Connector, 12 pin
84 3010888 Seal
85 0514680 Socket
86 0514690 Bouchon, mâle
87 0127288 Lock wedge, 8 socket
88 3010959 Lock wedge
89 0328744 Screw, clamp 1 4 20 x .75
90 5004964 Coil, bracket
91 0307417 Grommet
92 0586738 Coil assy, dual
93 0514679 Borne, broche
94 *TUBING,Sleeve-ignition primary | (Cut to length from P/N 3011044.)
95 EMM | Refer to the current Parts and Accessories Bulletin with Subject "EMM Replacement" Or, refer to "EMM & ECU Order Info" in current P&A Catalog
96 0513663 Connector
97 0513665 Plug
98 0513666 Terminal
99 0330272 Fitting models using a steel fitting, use kit p n 5005269.
100 0204363 Terminal, ring
101 0316245 Clamp
102 0328714 Screw, clip
103 5004456 Fusable link kit
104 0514158 Ring terminal
