EVINRUDE-JOHNSON 5005105 Throttle Body Assy, 150 - Port | (Pl & Vl Models.)

Write a Review
$39.00
SKU:
5005105
Schematic Object Key:
1

EVINRUDE-JOHNSON 5005105 Throttle Body Assy, 150 - Port | (Pl & Vl Models.)

$39.00

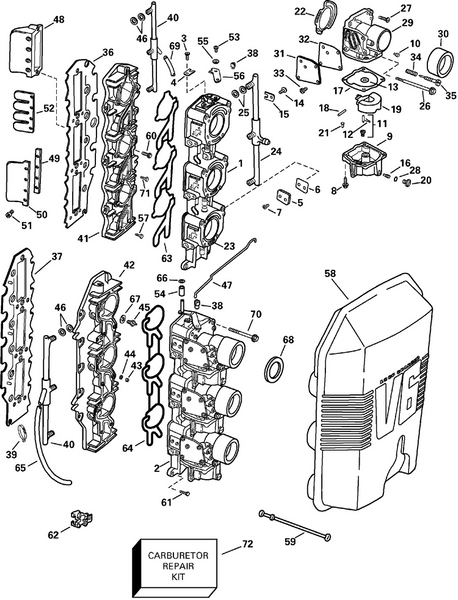

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5005105 Throttle Body Assy, 150 - Port | (Pl & Vl Models.)

Schematic Object Key : 1

Product Description: Throttle Body Assy, 150 - Port | (Pl & Vl Models.)

Category: JOHNSON / 2002 / 175 / J175CXSNF Carbureted, 25 in. shaft, White, Counter Rotation 2002 / CARBURETOR & INTAKE MANIFOLD

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0438797 CARB. ASSY., Port, 150GL, 150SL | (PL & VL Models.) This part replaces 5002132.
0438798 CARB. ASSY., Stbd., 150GL, 150SL | (PL & VL Models.) This part replaces 5002133.
0439211 CARB. ASSY., Port, 150 | (PX & CX Models.) This part replaces 5002130.
0439212 CARB. ASSY., Stbd., 150 | (PX & CX Models.) This part replaces 5002131.
1 0437291 Throttle body assy, 175 port
1 5005105 Throttle body assy, 150 port pl vl models.
1 5005107 Throttle body assy, 150 port px cx models.
2 0437290 Throttle body assy, 175 stbd
2 5005106 Throttle body assy, 150 stbd pl vl models.
2 5005108 Throttle body assy, 150 stbd px cx models.
3 0328714 Screw, clip
4 0328765 Attache
5 0340656 Couvercle, poche d'étalonnage
6 0340657 Gasket, cover included in carburetor repair kit.
7 0340654 Screw, cover
8 0328649 Screw, bowl to body
9 0433000 Chambre de flotteur
10 0334568 Orifice, 39
10 0317473 High speed orifice, no. 30 pl vl models.
10 0323703 High speed orifice, 36 px cx models.
11 0396522 Ensemble soupape à flotteur included in carburetor repair kit.
12 0336842 Clip, spring
13 0343512 Gasket, nozzle included in carburetor repair kit.
14 0328714 Screw, clip
15 0336366 Attache, collecteur vers carter de papillon
16 0327487 Orifice, high speed, 73
16 0328546 Orifice, high speed, 72d pl vl models.
16 0331433 Orifice, high speed, 62d 150 px cx models.
17 0335070 Gasket, float bowl included in carburetor repair kit.
18 0335077 Axe, flotteur included in carburetor repair kit.
19 0433167 Ensemble flotteur included in carburetor repair kit.
20 0327116 Screw, plug
21 0326164 Screw, hinge pin
22 0343613 Joint, corps de carburateur included in carburetor repair kit.
23 0335363 Crépine, carter de papillon
24 0433364 Fuel manifold, port stbd
25 0335362 Joint torique, tubulures carburant included in powerhead gasket kit.
26 0324643 Screw
27 0328649 Screw, bowl to body
28 0305739 "o"ring,valve seat included in carburetor repair kit.
29 0439785 Carburetor body assy.
29 5005099 Carburetor body assy, 150 pl vl models.
29 5005100 Carburetor body assy, 150 px cx models.
30 0335244 Seal, air silencer
31 0341084 Couvercle
32 0341085 Gasket, cover plate included in carburetor repair kit.
33 0315656 Screw
34 0332576 Ressort, soupape à pointeau
35 0342775 Needle valve
36 0336226 Gasket, manifold to block port included in powerhead gasket kit.
37 0336227 Gasket, manifold to block stbd included in powerhead gasket kit.
38 0318165 Dispositif de retenue, tringlerie de carburateur
39 0320107 Tie strap
40 0433521 Balance tube
41 0433241 Intake manifold assy, port
42 0433249 Intake manifold assy, stbd
43 0437773 Check valve
44 0336639 Crépine
45 0335121 Fitting, primer
46 0335362 Joint torique, tubulures carburant
47 0348947 Link, port to carburetor stbd
48 0389823 Clapet
49 0323412 Cale
50 0323601 Butée de clapet
51 0327074 Screw
52 0317739 Leaf valve
53 0335739 Screw, conn. brkt. to mntg. brkt.
54 0432639 Galet, contre came
55 0328735 Washer, screw, ball joint
56 0335257 Lever, linkage adjustment
57 0328744 Screw, clamp 1 4 20 x .75
58 0437372 Air silencer assy
59 0335242 Bungie, long
60 0333677 Screw
61 0323626 Screw
62 0335729 Retainer, balance tube
63 0335403 Seal, manifold to carb port included in powerhead gasket kit.
64 0335404 Seal, manifold to carb stbd included in powerhead gasket kit.
65 HOSE, Balance tube to lower main, Stbd, 15 in. (381mm) | (Cut to length from P/N 336317.)
66 0324678 O ring, valve core, lower
67 0303630 Washer
68 0336821 Gasket, air silencer included in powerhead gasket kit.
69 HOSE, Balance tube to air silencer drain, Port, 19 in. (483mm) | (Cut to length from P/N 336317.)
70 0324643 Screw
71 0344038 Screw, inner manifold
72 0438996 Carburetor repair kit
