EVINRUDE-JOHNSON 5005187 Throttle Lever

Write a Review
$23.49
SKU:
5005187
Schematic Object Key:
10

EVINRUDE-JOHNSON 5005187 Throttle Lever

$23.49

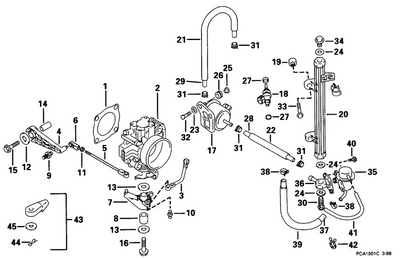

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5005187 Throttle Lever

Schematic Object Key : 10

Product Description: Throttle Lever

Category: EVINRUDE / 2011 / 25 / E25DPSLIIS / THROTTLE & SHIFT LINKAGE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0353592 Screw, cam to intake
2 0553766 Bow washer
3 5008208 Throttle cam 15 hp
3 5006475 Throttle cam
4 0908398 Washer
5 5006478 Link, cam to shaft tps
6 0353592 Screw, cam to intake
7 0127386 Rondelle
8 0324678 O ring, valve core, lower
9 0432639 Galet, contre came
10 5005187 Throttle lever
11 0353036 Spring, throttle lever return
12 0908398 Washer
13 0333774 Attache, commande vers tringlerie de sens de marche remote models
13 0333774 Attache, commande vers tringlerie de sens de marche tiller models
14 0328702 Washer remote models
14 0328702 Washer tiller models
15 0353897 Screw
16 0353761 Rondelle, levier de sens de marche
17 0360630 Nut, m6 This part replaces 0353694.
18 5007059 Lever pin assembly, shift shaft
19 0353968 Detent, shift lever
20 0315164 . . ball, valve shift
21 0334241 Guide
22 0334338 Screw, lever to shift rod
23 0315081 Bushing, shoulder screw
24 0353804 Spacer, shift lever to block
25 5007060 Lever shaft assembly, shift
26 0353705 Shift rod 15 inch
26 0353706 Shift rod 20 inch
26 0355256 Shift rod 25 inch
27 0334119 Connector
28 0338630 Clip, link
29 0587071 Cable assy, neutral switch g suffix remote models
29 0586994 Cable assy, tiller hand e g suffix tiller models
29 0586780 Interrupteur, point mort c, h, r, or s suffix models
30 3011153 Connecteur, fiche 2 positions
31 3011147 Contact, female receptacle
32 3011225 Seal, wire
33 0354619 Bracket, neutral switch to block use on serial number 08750338 higher
34 0353753 Screw, bracket to cyl c c
35 0334192 Screw, neutral start
36 0353740 Washer, neutral switch screw
37 0351928 Retainer, control cable trunnion remote models
38 0353897 Screw remote models
NS 0317893 Tie strap
NS 0320107 Tie strap
