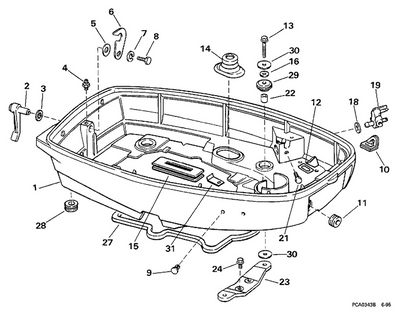

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 19A
Product Description: Connector Assy
Category: EVINRUDE / 2004 / 250 / E250FPXSRM / FUEL SYSTEM
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5005196 | Injector assy, port | |
2 | 5005197 | Injector assy, stbd | |
5 | 5001911 | Spring button assy | |
6 | 0348496 | O ring | |
7 | 5001901 | Spring button | |
8 | 5004270 | Cap sleeve assy | |
9 | 0348107 | O ring | |
10 | 0349870 | Screw, injector to adaptor | |
11 | 0348224 | Washer, injector to adaptor | |
12 | 0349272 | Screw, injector to cyl head | |
13 | 0318941 | Washer | |
14 | 0349090 | Screw | |
15 | 0349080 | Retainer, fuel line to injector | |
16 | 0349424 | Sleeve, 1 injector | |
17 | 5001513 | Lift pump assy, fuel | |
18 | 0349511 | Hose, pump to filter | |
19 | 0348839 | Clamp, 17 mm | |
19A | 5005459 | Connector assy | |
20 | 0346786 | Clamp | |
21 | 0345714 | Hose, pump to filter | |
22 | 0345612 | Hose, upper c c pulse | |
24 | 0331683 | Hose, lift pump pulse, lower to 5 | |
25 | 0439947 | Connector tube assy, filter | |
26 | HOSE, Fuel in to tee 26 in. (66cm) | Cut to length from P/N 125115 | ||
27 | HOSE, Oil outlet to tee | Cut to length from P/N 772571 | ||
28 | 0333040 | Isolator | |
29 | 0338558 | Entretoise, Ã collerette | |
30 | 0313022 | Locknut, double ended bolt | |
31 | 0328703 | Washer, screw hook | |
32 | 0345707 | Stud | |
33 | 0345701 | Fitting, fuel to oil tee | |
35 | 0348939 | Connector, fuel inlet | |
36 | 0345702 | Fitting, cooling hose | |
37 | 5001252 | Filter housing assy, fuel | |
38 | 0345169 | Bracket, filter housing to c c | |
39 | 0336481 | Screw, stop switch mount | |
40 | 0344609 | Retainer | |
41 | 5011090 | Filter, fuel | This part replaces 0502906. |
42 | 5001502 | Sensor, water | |
43 | 0915352 | O ring, water sensor | This part replaces 3850819. |
44 | 0332026 | Screw oil brkt to fuel brkt | |
45 | 0313022 | Locknut, double ended bolt | |
46 | 0345756 | Spacer, bracket lift pump to c c | |
47 | 0333710 | Screw, anchor bracket | |
49 | 0320107 | Tie strap | |
50 | 5004986 | Manifold assy., fuel feed | |
51 | 0344828 | O ring, black | |
52 | 5005413 | Manifold assy., fuel return | |
53 | 0343585 | O ring, brown | |
54 | TUBING, Convoluted | Cut to length from P/N 348472 | ||
56 | 5004429 | Reservoir pump | |
57 | 0510487 | Retaining ring | |
58 | 0302325 | Screw, impeller housing | |
59 | 0328700 | Washer | |
60 | 0335328 | Screw, connector | |
61 | 0329518 | Grommet, esm mounting | |
62 | 0344848 | Goujon, montage esm | |
63 | 0324005 | Orifice, 20 | |
64 | 0347034 | Hose, block to adapter | |
65 | 0333395 | Hose, connector to filter | |
66 | 0345529 | Hose, vapor separator to throttle body | |
67 | 0346150 | Clamp, 18.5mm | |
68 | 0348838 | Clamp, 10.5 mm | |
69 | 0318322 | Attache câble | |
70 | 0320107 | Tie strap | |
71 | 0350055 | Retainer, high tension leads | |
72 | 0350056 | Retainer, high tension lead |
