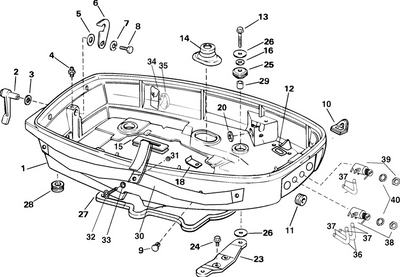

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 39
Product Description: Valve,Dewatering | New P/N For 2003
Category: JOHNSON / 2003 / 30 / J30MLSTS / LOWER ENGINE COVER
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5005541 | Engine cover, lower new p n for 2003 | |
2 | 0395910 | Handle shaft assy, latch | |
3 | 0321863 | Washer, latch | |
4 | 0313607 | Lube fitting | |
5 | 0553766 | Bow washer | |
6 | 0321319 | Lever, latch, lower engine cover | |
7 | 0328703 | Washer, screw hook | |
8 | 0912127 | Screw, hook | |
9 | 0334983 | Plug | |
10 | 0331370 | Grommet | |
10 | 0331584 | Grommet, ac lighting optional | |
11 | 0336255 | Grommet, shift rod | |
12 | 0335343 | Grommet, throttle cable | |
13 | 0329240 | Screw | |
14 | 0304019 | Crommet, control shaft | |
15 | 0325327 | Grommet, actuator cam | |
16 | 0329241 | Washer | |
17 | 0339266 | Hose, lower manifold to carb 7 new p n for 2003 | |
18 | 0316487 | Retainer | |
20 | 0329518 | Grommet, esm mounting new p n for 2003 | |
23 | 0325868 | Bracket, cove to exh. hsg., front | |
24 | 0908158 | Screw, anode | |
25 | 0316354 | Engine cover support grommet | |
26 | 0203622 | Washer | |
27 | 0320158 | Seal, housing to cover | |
28 | 0329518 | Grommet, esm mounting new p n for 2003 | |
29 | 0302406 | Sleeve | |
30 | 0350997 | Strap,carry new p n for 2003 | |
31 | 0313022 | Locknut, double ended bolt new p n for 2003 | |
32 | 0343505 | Screw new p n for 2003 | |
33 | 0901893 | Rondelle new p n for 2003 | |
34 | 0314494 | Bag emergency starter rope new p n for 2003 | |
35 | 0378347 | Rope ay, starter new p n for 2003 | |
36 | HOSE, Dewater valves | New P/N for 2003, Cut to length from P/N 333485 | ||
37 | 0346785 | Clamp, 14.5 mm new p n for 2003 | |
38 | 5005503 | Valve,dewatering new p n for 2003 | |
39 | 5005504 | Valve,dewatering new p n for 2003 | |
40 | 0349889 | Retaining ring, water valve new p n for 2003 |
