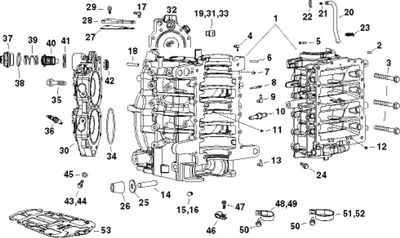

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 33
Product Description: Head, Cylinder Head - Port
Category: EVINRUDE / 2008 / 250 - (90° V6, 3.3 L) / E250DCXSCM / CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5005909 | Cylinder crankcase assy | |
1 | 5007634 | Cylinder crankcase assy, 225 250 hp with multi point oiling | |
1 | 5005916 | Cylinder crankcase assy | |
1 | 5007635 | Cylinder crankcase assy, 200 hp with multi point oiling | |
2 | 0304178 | Pin, dowel | |
3 | 0331095 | Pin, c c taper | |
4 | 0331880 | Pin, housing to gearcase | |
5 | 0319253 | Fitting, c c lubrication | |
6 | 0435681 | Check valve assembly main bearing drain | |
7 | 5000477 | Check valve, recirculation | |
NS | 0321598 | Crankcase fitting see "recirculation hoses" not shown | |
NS | 0348471 | Fitting, oil recirculation elbow see "recirculation hoses" not shown | |
NS | 0353862 | Nipple, crankcase drain see "recirculation hoses" not shown | |
NS | 0437784 | Ens. clapet anti retour see "recirculation hoses" not shown | |
NS | 0352336 | Tee see "recirculation hoses" not shown | |
NS | 0772569 | Hose, recirculation see "recirculation hoses" not shown | |
NS | 0772571 | Hose see "recirculation hoses" not shown | |
8 | 0345702 | Fitting, cooling hose | |
9 | 0344821 | Fitting, crankcase oil inlet | |
NS | 0346137 | Fitting, cylinder oil inlet | |
NS | 0353862 | Nipple, crankcase drain | |
10 | 0331894 | Elbow | |
11 | 0332135 | Plug | |
12 | 0314616 | Stud | |
13 | 0914024 | Screw, c c to block | |
14 | 0348843 | Stud, c c to block | |
15 | 0330265 | Washer | |
16 | 0332291 | Nut, c c to block stud | |
17 | 0344402 | Stud, blowoff bracket | |
18 | 0346237 | Dam, c c water | |
19 | 0301250 | Rondelle | |
20 | 0306422 | Nut | |
21 | 0324334 | Screw | |
22 | 0316487 | Retainer | |
23 | 0351745 | Clamp, harness to block | |
24 | 0335200 | Bonding lead | |
25 | 0347318 | Cover | |
26 | 0344472 | Gasket, rect. reg. to cyl. block included in cyl crankcase gasket seal kit | |
27 | 0335687 | Screw, clamp 1 4 20 x .75 | |
28 | 0352767 | Clamp, fuel return rail | |
29 | 0338558 | Entretoise, à collerette | |
30 | 0333040 | Isolator | |
31 | 0328703 | Washer, screw hook | |
32 | 0313022 | Locknut, double ended bolt | |
33 | 5007298 | Head, cylinder head port | |
33 | 5007606 | Head, cylinder head port | |
34 | 5007299 | Head, cylinder head starboard | |
34 | 5007607 | Head, cylinder head starboard | |
35 | 0346007 | Gasket, cylinder head included in cyl crankcase gasket seal kit | |
36 | 0352913 | Bolt, cylinder head | |
37 | 0344771 | Cover, thermostat | |
38 | 0301917 | O ring included in cyl crankcase gasket seal kit | |
39 | 0345171 | Spring, thermostat | |
40 | 5005440 | Thermostat | |
41 | 0339299 | Seal, thermostat to cyl head included in cyl crankcase gasket seal kit | |
42 | 0335200 | Bonding lead | |
43 | 0328701 | Lockwasher, double ended bolt | |
44 | 5007419 | Spark plug | |
45 | 0329743 | Stud, cover mount | |
46 | 0349557 | Mount | |
47 | 0349556 | Washer | |
48 | 0351535 | Gasket, c c to adapter included in cyl crankcase gasket seal kit |
