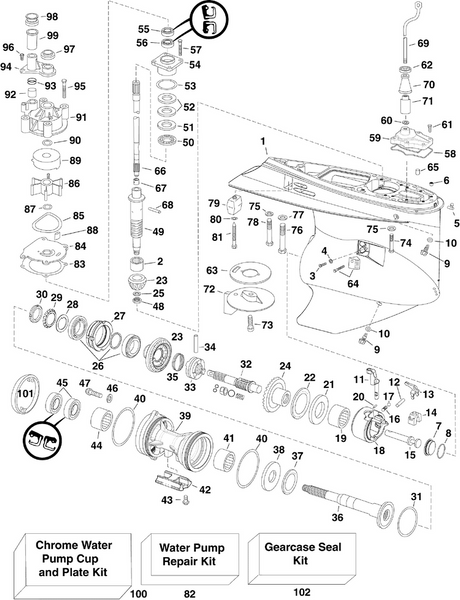

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 18
Product Description: Bearing Housing Assembly, Reverse Gear
Category: EVINRUDE / 2011 / 300 / DE300CZIIC / GEARCASE, M2-Type, Counter Rotation
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5009085 | Gearcase bearing assembly | This part replaces 5007368. |
2 | 0387817 | Bearing, pinion | |
3 | 0324852 | Retaining screw seal | |
4 | 0332584 | Washer, seal ring | |
5 | 0336535 | Fitting, pitot tube | |
6 | 0321164 | Plug | |
7 | 5007386 | Plug, gearcase contents of gearcase seal kit. | |
8 | 0354731 | O ring | |
9 | 0318544 | Screw, fill drain contents of gearcase seal kit. | |
10 | 0311598 | Seal | |
11 | 0353375 | Detent, shift | |
12 | 0353973 | Pin, shift lever | |
13 | 0334160 | Lever, shift | |
14 | 0334163 | Cradle, shifter | |
15 | 0348484 | Shaft, shift | |
16 | 0911962 | Spring | |
17 | 0160084 | Ball | |
18 | 5007370 | Bearing housing assembly, reverse gear | |
19 | 0389039 | Bearing, forward gear | |
20 | 0353338 | Pin, housing | |
21 | 0353039 | Thrust washer, forward gear | |
22 | 0391473 | Thrust bearing, forward gear | |
23 | 5007388 | Gear set, fwd, rev, pinion | |
24 | 5008224 | Gear, reverse | |
25 | 0350038 | Washer, pinion nut | |
26 | 5007359 | Bearing spacer, forward gear | |
27 | 0352713 | Housing, forward gear bearing | |
28 | 0353551 | Thrust washer | |
29 | 0353336 | Washer, lock | |
30 | 0353096 | Nut, spanner | |
31 | 0353097 | Shim, 0.003 in. 0,07mm | |
31 | 0353098 | Shim, 0.004 in. 0,10mm | |
31 | 0353099 | Shim, 0.005 in. 0,12mm | |
31 | 0353334 | Shim, 0.01 in. 0,25mm | |
32 | 5007404 | Clutch shaft assembly | |
33 | 0337774 | Shifter, clutch dog | |
34 | 0313448 | Pin, clutch dog | |
35 | 0324369 | Spring, clutch dog pin | |
36 | 5007360 | Propeller shaft | |
37 | 0382408 | Thrust bearing | |
38 | 0313447 | Thrust washer | |
39 | 5007372 | Bearing housing assembly, propshaft | |
40 | 0911700 | O ring, propshaft housing contents of gearcase seal kit. | |
41 | 0431926 | Needle bearing assembly, front | |
42 | 0431708 | Anode, bearing housing | |
43 | 0908158 | Screw, anode | |
44 | 0436752 | Bearing, propshaft | |
45 | 0334950 | Seal contents of gearcase seal kit. | |
46 | 0328743 | Rondelle | |
47 | 0353355 | Screw, propshaft housing | |
48 | 0314730 | Nut, pinion to driveshaft | |
49 | 0356900 | Driveshaft, lower | This part replaces 0347371. |
50 | 0387656 | Butée, arbre d'entraînement | |
51 | 0327656 | Rondelle de butée, arbre d'entraînement | |
52 | 0323362 | Cale, 0,003" 0,07 mm | |
52 | 0323361 | Cale, 0,004" 0,10 mm | |
52 | 0314745 | Cale, 0,005" 0,12 mm | |
53 | 0354731 | O ring contents of gearcase seal kit. | |
54 | 0439476 | Bearing housing seal | |
55 | 0329922 | Joint, supérieur contents of gearcase seal kit. | |
56 | 0329923 | Joint, inférieur contents of gearcase seal kit. | |
57 | 0317624 | Screw, driveshaft hsg | |
58 | 0353162 | Seal, shift rod cover contents of gearcase seal kit. | |
59 | 5007367 | Cover, shift rod | |
60 | 0318372 | "o" ring, shift rod contents of gearcase seal kit. | |
61 | 0328725 | Screw, cover to gearcase | |
62 | 0321008 | Grommet, exh hsg to shift rod | |
63 | 0331409 | Seal, trim tab | |
64 | 5006337 | Water screen kit, ultra high flow optional accessory | |
- | 0350946 | Screen, wtr intake port | |
- | 0350945 | Screen, wtr intake stbd | |
- | 0337061 | Screw, water intake screens | |
64 | 5005063 | Water screen kit, high flow | |
64 | 5005124 | Water screen kit, high perf. optional accessory | |
64 | 5011694 | Water screen kit, ultra high flow 0.410 in optional accessory | This part replaces 5007081. |
65 | 0350943 | Pin | |
66 | 5007672 | Driveshaft assembly, upper | |
66 | 5007673 | Driveshaft assembly, upper | |
67 | 0338504 | Retainer, driveshaft | |
68 | 0311538 | Roll pin, driveshaft | |
69 | 0347301 | Shift rod | |
69 | 0347391 | Shift rod | |
70 | 0321122 | Spacer, shift rod | |
71 | 0339346 | Extension, shift rod spacer | |
72 | 0338743 | Trim tab | |
73 | 0313715 | Screw, cap, hex hd, 7 16 14 x 1 | |
74 | 0331999 | Screw, gearcase housing | |
75 | 0330266 | Washer, trail lock lever | |
76 | 0331998 | Screw, gearcase to housing | |
77 | 0330265 | Washer | |
78 | 0330263 | Screw, upper mount retention | |
79 | 0436745 | Anode | |
80 | 0307161 | Lock washer, anode | |
81 | 0341219 | Screw, anode | |
82 | 5001595 | Water pump repair kit 3.3 l models | |
82 | 5007972 | Water pump repair kit 3.4 l models | |
83 | 0338484 | Gasket, imp. hsg. plate contents of gearcase seal kit. | |
84 | 0338485 | Plate, impeller | |
85 | 0331353 | Seal, impeller housing plate. | |
86 | 5001593 | Impeller assembly | |
87 | 0302035 | "o" ring, spacer to imp. hsg. | |
88 | 0331107 | Clavette, turbine | |
89 | 0338486 | Coupelle, turbine inox | |
90 | 0331188 | O ring | |
91 | 0360347 | Housing, impeller | This part replaces 5007968. |
92 | 0314008 | Bague, tube à eau vers capot 3.3 l models | |
93 | 0346865 | O ring, water tube 3.4 l models | |
94 | 0354578 | Cover, impeller housing 3.4 l models | |
94 | 0338893 | Capot, carter de turbine 3.3 l models | |
95 | 0302325 | Screw, impeller housing | |
96 | 0306643 | Screw | |
97 | 0320943 | Bague, pompe vers carter d'échap. | |
98 | 0338601 | Grommet, sleeve to exh hsg | |
99 | 0354580 | Sleeve, extension | |
99 | 0354579 | Sleeve, extension | |
100 | 0435526 | Chrome cup plate kit optional accessory | |
- | 0338551 | Coupelle, turbine chrome | |
- | 0338552 | Plate, impeller | |
101 | 0126669 | Renegade bass weed ring optional accessory | |
102 | 5007700 | Gearcase seal kit |
