Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 53
Product Description: Interrupteur De Demarrage Au Point Mort Et Faisceau | Without Key Switch

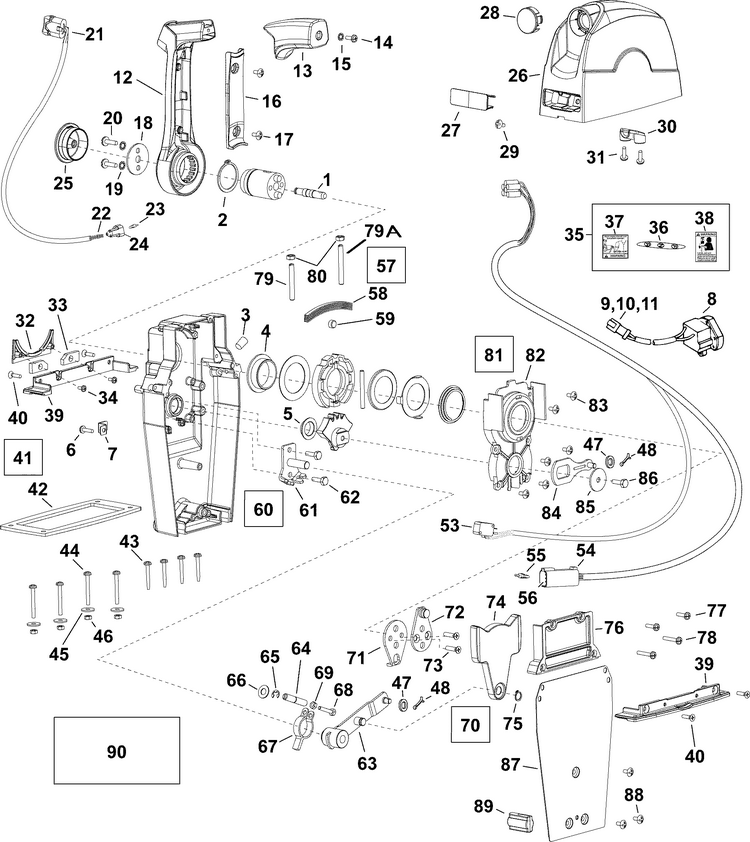

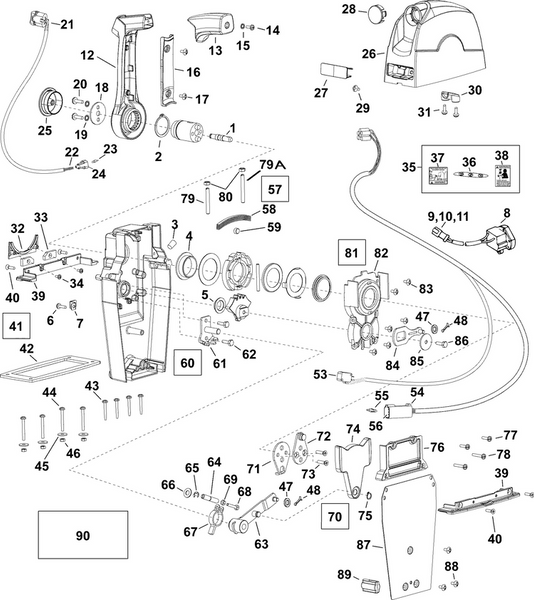

Category: EVINRUDE / 2012 / 9.8 PORTABLE / E10TPL4INS / 19-1_BINNACLE MOUNT REMOTE CONTROL
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
- | 0766578 | Remote control assembly with out tilt or key switch use with 2012 or newer portable outboards | |
1 | 0353628 | Release rod | |
2 | *C-RING | Included in Bushing & Hardware Kit, P/N 5007499 | ||
3 | *GROMMET | Included in Bushing & Hardware Kit, P/N 5007499 | ||
4 | *BUSHING | Included in Bushing & Hardware Kit, P/N 5007499 | ||
5 | *BUSHING | Included in Bushing & Hardware Kit, P/N 5007499 | ||
6 | *SCREW (M5 x 0.8 x 16) | Included in Bushing & Hardware Kit, P/N 5007499 | ||
7 | *BRACKET | Included in Bushing & Hardware Kit, P/N 5007499 | ||
8 | 0353629 | Avertisseur | |
9 | 0514679 | Borne, broche | |
10 | 0514696 | Connector, 2 pin receptacle | |
11 | 0514697 | Lock wedge, 2 pin | |
12 | 5007481 | Control lever assembly | |
13 | 5007482 | Grip kit | |
14 | ***SCREW (M5 x 0.8 x 12) | ||
15 | ***WASHER (M5) | ||
16 | 5007483 | Lever cover kit | |
17 | ***SCREW (M5 x 0.8 x 10) | ||
18 | 5007486 | Kit de retenue, bras d'accélération included in bushing hardware kit, p n 5007499 | |
19 | ****WASHER | Included in Bushing & Hardware Kit, P/N 5007499 | ||
20 | ****SCREW (M6 x 1.0 x 18) | Included in Bushing & Hardware Kit, P/N 5007499 | ||
21 | 5007485 | Interrupteur de correction d assiette relevage | |
22 | 0514679 | Borne, broche | |
23 | 0512682 | Cale verrouillage, 3 broches | |
24 | 0514686 | Connecteur, 3 broches | |
25 | 0767754 | Release button cover | This part replaces 0353627. |
26 | 5007487 | Control cover kit | |
27 | **CAP, Friction Adjustment | ||
28 | **CAP, Key switch opening | Without Key Switch | ||
29 | **SCREW (M5 x 0.8 x 10) | ||
30 | **WIRE HOLDER | ||
31 | **SCREW (M5 x 0.8 x 12) | ||
32 | **SIDE COVER | ||
33 | **SEAL | ||
34 | **SCREW (M4 x 0.7 x 8) | Included in Bushing & Hardware Kit, P/N 5007499 | ||
35 | 5007488 | Decal kit | |
36 | ***DECAL (Forward - Neutral - Reverse) | ||
37 | ***DECAL Warning 1 | ||
38 | ***DECAL Warning 2 | ||
39 | 5007489 | Kit bride de montage | |
40 | **SCREW (M5 x 0.8 x 18) | Included in Bushing & Hardware Kit, P/N 5007499 | ||
41 | 5007498 | Kit de montage, commande câble | |
42 | **SEAL | ||
43 | **SCREW, Self-tapping | ||
44 | **SCREW (M5 x 0.8 x 40) | ||
45 | **WASHER | ||
46 | **NUT | ||
47 | 0901893 | Rondelle | |
48 | 0305650 | Cotter pin | |
53 | 5007496 | Interrupteur de démarrage au point mort et faisceau without key switch | |
54 | 0514688 | Connector, 6 pin | |
55 | 0514684 | Lock wedge, 6 pin | |
56 | 0514679 | Borne, broche | |
57 | 5007490 | Kit dispositif de blocage de commande de sens de marche | |
58 | **SPRING | ||
59 | **ROLLER, Detent | ||
60 | 5007493 | Brake arm kit | |
61 | **BRACKET | ||
62 | **SCREW (M6 x 1.0 x 18) | Included in Bushing & Hardware Kit, P/N 5007499 | ||
63 | **THROTTLE ARM Assembly | Included in Throttle Arm Kit, P/N 766860 | ||
64 | ***BRAKE ADJUST | ||
65 | ***E-RING | ||
66 | ***WASHER | ||
67 | ***BRAKE ARM Assembly | ||
68 | ****SCREW | ||
69 | ****NUT | ||
70 | 0766860 | Throttle arm kit | |
71 | **STOPPER | ||
72 | **THROTTLE LEVER | ||
73 | **SCREW (M6 x 1.0 x 20) | Included in Bushing & Hardware Kit, P/N 5007499 | ||
74 | **DWELL PLATE | ||
75 | **C-RING | Included in Bushing & Hardware Kit, P/N 5007499 | ||
76 | **DWELL PLATE RETAINER | ||
77 | **SCREW (M5 x 0.8 x 16) | Included in Bushing & Hardware Kit, P/N 5007499 | ||
78 | **SCREW (M5 x 0.8 x 25) | Included in Bushing & Hardware Kit, P/N 5007499 | ||
79 | **BOLT, Stopper | Included in Bushing & Hardware Kit, P/N 5007499 | ||
80 | **NUT, Stopper bolt | Included in Bushing & Hardware Kit, P/N 5007499 | ||
81 | 5007491 | Dispositif de retenue interrupteur de point mort | |
82 | **GEAR CASE | ||
83 | **SCREW (M5 x 0.8 x 10) | Included in Bushing & Hardware Kit, P/N 5007499 | ||
84 | 0766861 | Shift arm kit | |
85 | **WASHER | ||
86 | **SCREW (M6 x 1.0 x 18) | Included in Bushing & Hardware Kit, P/N 5007499 | ||
87 | 5007495 | Panel, control box back | |
88 | **SCREW (M5 x 0.8 x 10) | Included in Bushing & Hardware Kit, P/N 5007499 | ||
89 | **CABLE PLUG | ||
90 | 5007499 | Bushing hardware kit |
