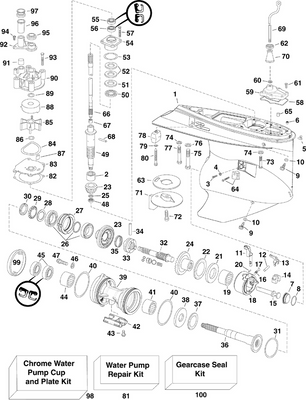

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 57
Replacement: This part (5007672) replaces 0435766.
Product Description: Driveshaft Assembly, Upper
Category: JOHNSON / 1993 / 120 / VJ120TLETF 1993 / GEARCASE - 120TL & 140TL 120TX & 125ESX "S" SUFFIX ONLY
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
0435474 | 0435474 | Gearcase assy., complete | |
1 | 0431642 | Gearcase bearing assy. | |
2 | 0384195 | Bearing, pinion | |
3 | 0324852 | Retaining screw seal | |
3A | 0332584 | Washer, seal ring | |
4 | 0323466 | . screen, water intake | |
5 | 0436746 | Gear pinion assy. | This part replaces 0434063. |
6 | 0439476 | Bearing housing seal | This part replaces 0435675. |
7 | 0329923 | Joint, inférieur | |
8 | 0329922 | Joint, supérieur | |
9 | 0317624 | Screw, driveshaft hsg | |
10 | 0321008 | Grommet, exh hsg to shift rod | |
11 | 0431708 | Anode, bearing housing | |
12 | 0382408 | Thrust bearing | |
13 | 0334163 | Cradle, shifter | |
14 | 0324037 | Lever, shift | |
15 | 0915954 | Detent, shifter | This part replaces 0323946. |
16 | 0322941 | Arbre, commande de sens de marche | |
17 | 0391365 | Bearing housing assembly. | This part replaces 0436240. |
18 | 0331880 | Pin, housing to gearcase | |
19 | 0911961 | Spring, detent | |
20 | 0327345 | Ball, detent | |
21 | 0320145 | Pin, lever to housing | |
22 | 0313445 | Retaining ring | |
23 | 0324766 | Thrust washer, forward gear | |
24 | 5006241 | Couvercle joint, tige de commande de sens de marche | This part replaces 0435482. |
25 | 0318372 | "o" ring, shift rod | |
26 | 0314732 | ,retainer plate, brg hsg | |
27 | 0352165 | Gasket, shift rod cover | This part replaces 0324670. |
28 | 0397087 | Bearing housing seal assy. | |
29 | 0382407 | Bearing assy, forward gear | |
30 | 0379504 | Propshaft bearing assembly | |
31 | 0330137 | Seal | |
32 | 0316563 | Screw | |
32A | 0332583 | Screw seal assy. | |
33 | 0908158 | Screw, anode | |
34 | 0314731 | Rondelle de butée, engrenage de marche arrière | |
35 | 0314730 | Nut, pinion to driveshaft | |
36 | 0321122 | Spacer, shift rod | |
37 | 0387656 | Butée, arbre d'entraînement | |
38 | 0327656 | Rondelle de butée, arbre d'entraînement | |
39 | 0323664 | Commande de sens de marche, crabot d'embrayage | |
40 | 0338504 | Retainer, driveshaft | |
41 | 0311538 | Roll pin, driveshaft | |
42 | 0335722 | Driveshaft, lower | |
43 | 0313448 | Pin, clutch dog | |
44 | 0324369 | Spring, clutch dog pin | |
45 | 0318544 | Screw, fill drain | |
46 | 0333572 | O ring | |
46 | 0311598 | Seal | |
47 | 0328702 | Washer | |
48 | 0354731 | O ring | This part replaces 0314728. |
49 | 0313446 | "o" riing, brg. hsg | |
50 | 0385043 | Thrust bearing assy. | |
51 | 0323362 | Cale, 0,003" 0,07 mm | |
51 | 0323361 | Cale, 0,004" 0,10 mm | |
51 | 0314745 | Cale, 0,005" 0,12 mm | |
52 | 0302325 | Screw, impeller housing | |
54 | 0436888 | Propeller shaft assy. | This part replaces 0387818. |
55 | 0338484 | Gasket, imp. hsg. plate | |
56 | 0345992 | Engrenage, marche arrière | This part replaces 0333077. |
57 | 5007671 | Driveshaft assembly, upper | This part replaces 0435765. |
57 | 5007672 | Driveshaft assembly, upper | This part replaces 0435766. |
58 | 0333005 | Shift rod | |
58 | 0333006 | Shift rod | |
59 | 0436745 | Anode | This part replaces 0393023. |
60 | 0331353 | Seal, impeller housing plate. | |
61 | 0314502 | Cotter pin | |
62 | 0315810 | Spacer, impeller nut | |
63 | 0331998 | Screw, gearcase to housing | |
64 | 0338485 | Plate, impeller | |
64 | 0338552 | Plate, impeller | |
65 | 0435990 | Impeller housing | |
66 | 0331188 | O ring | |
67 | 0302325 | Screw, impeller housing | |
68 | 0338742 | Compensateur de dérive | This part replaces 0327640. |
69 | 0314008 | Bague, tube à eau vers capot | |
70 | 0338893 | Capot, carter de turbine | |
71 | 0330265 | Washer | |
72 | 0320943 | Bague, pompe vers carter d'échap. | |
73 | 0328096 | Screw | |
74 | 0314503 | Nut, impeller | |
75 | 0306643 | Screw | |
76 | 0313715 | Screw, cap, hex hd, 7 16 14 x 1 | |
77 | 0127084 | Thrust bushing | This part replaces 0318841. |
78 | 0331999 | Screw, gearcase housing | |
79 | 5001593 | Impeller assembly | This part replaces 0435821. |
80 | 0302035 | "o" ring, spacer to imp. hsg. | |
81 | 0331107 | Clavette, turbine | |
82 | 0338486 | Coupelle, turbine inox | |
82 | 0338551 | Coupelle, turbine chrome | |
83 | PROPELLER | ||
84 | 0332393 | Converging ring | |
85 | 0384977 | Bushing assy, prop, 3 blade | |
86 | 0313926 | Propeller hub sleeve | |
87 | 5006373 | Gearcase seal kit | This part replaces 0396354. |
88 | 5001594 | Water pump repair kit | This part replaces 0434421. |
89 | 0435526 | Chrome cup plate kit | This part replaces 0395059. |
