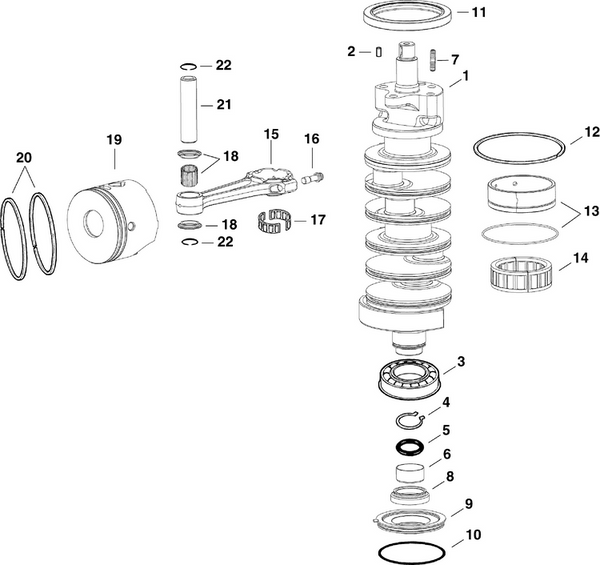

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description: Crankshaft Assembly
Category: EVINRUDE / AF Models / 90 - (60° V4) / E90HGXAFI / 05-2_CRANKSHAFT & PISTONS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5007728 | Crankshaft assembly | |
| 2 | 0354131 | Roll pin, flywheel | |
| 3 | 0433503 | Bearing assembly, ball | |
| 4 | 0326047 | Retaining ring | |
| 5 | 0337087 | O ring included in powerhead gasket seal kit | |
| 6 | 0337030 | Sleeve, crankshaft | |
| 7 | 0354069 | Stud, flywheel mounting | |
| 8 | 0337085 | Seal included in powerhead gasket seal kit | |
| 9 | 0340559 | Corps, joint, palier inférieur | |
| 10 | 0338518 | O ring, bearing housing included in powerhead gasket seal kit | |
| 11 | 0336232 | Seal, upper crankshaft included in powerhead gasket seal kit | |
| 12 | 0319244 | Joint annulaire | |
| 13 | 0352960 | Bearing race, center main | |
| 14 | 5007190 | Bearing assembly, center main | |
| 15 | 5006383 | Connecting rod | |
| 16 | 0308186 | Screw, rod cap | |
| 17 | 0387787 | Bearing assembly, connecting rod | |
| 18 | 0395627 | Bearing retainer | |
| 19 | 5007541 | Piston ring assy, port standard standard size | |
| 19 | 5007037 | Piston ring assy, stbd standard standard size | |
| 19 | 5007038 | Piston ring assy, port 0.030 o.s. 0.030 in. oversize | |
| 19 | 5007039 | Piston ring assy, stbd 0.030 o.s. 0.030 in. oversize | |
| 20 | 5000819 | Piston ring standard size | |
| 20 | 5000820 | Piston ring os .030 0.030 in. oversize | |
| 21 | 0327861 | Wrist pin | |
| 22 | 0317831 | Circlip |
