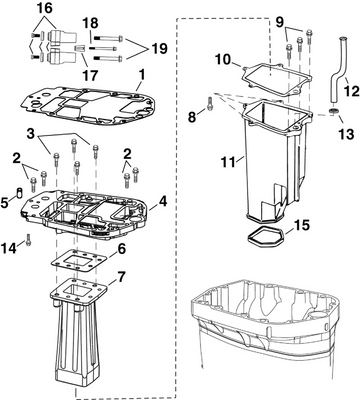

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 17
Product Description: Mount Assembly, Upper
Category: EVINRUDE / 2012 / 15 / E15HPSLINC / EXHAUST HOUSING
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5008165 | Exhaust housing | |
| 1 | 5008164 | Exhaust housing | |
| 1 | 5008254 | Exhaust housing | |
| 2 | 0355261 | Stud, extension | |
| 3 | 0355128 | Housing, inner exhaust | |
| 4 | 0355927 | Megaphone, exh housing | |
| 5 | 0353553 | Screw m6 x 30 | |
| 6 | 0353330 | Seal, inner exh, lower | |
| 7 | 5007443 | Muffler, exhaust | |
| 8 | 0351685 | Clamp, 34.6 mm | |
| 9 | 0353495 | Grommet, muffler to exh housing | |
| 10 | 0354116 | Hose, muffler to lower motor cover | |
| 11 | 0353756 | Fitting, exhaust grommet | |
| 12 | 0354162 | Grommet | |
| 13 | 0353676 | Screw, adapter to exhaust housing front | |
| 14 | 0353674 | Washer, bumper stop upper mount | |
| 15 | 0354437 | Washer, bumper upper mount | |
| 16 | 0353556 | Screw, crankcase to block | |
| 17 | 5007920 | Mount assembly, upper | |
| 18 | 0353676 | Screw, adapter to exhaust housing front | |
| 19 | 0353674 | Washer, bumper stop upper mount | |
| 20 | 0354437 | Washer, bumper upper mount | |
| 21 | 0353556 | Screw, crankcase to block | |
| 22 | 5007508 | Mount assembly, lower | |
| 23 | 0352787 | Mount, rubber lower mount bracket | |
| 24 | 0359150 | Screw, anode | This part replaces 0353557. |
| 25 | 0355129 | Mount bracket, lower | |
| 26 | 0353735 | Washer, end cap screws | |
| 27 | 0353728 | Nut, flanged | |
| 28 | 0353625 | Tube, water | |
| 28 | 0353306 | Tube, water | |
| 28 | 0355257 | Tube, water | |
| 29 | 0353319 | Grommet, water tube to exh hsng | |
| 30 | 0302497 | Grommet, lower water tube | |
| 31 | 0353556 | Screw, crankcase to block | |
| 32 | 0353735 | Washer, end cap screws | |
| 33 | 0353703 | Stud cyl crankcase to exhaust housing front | |
| 34 | 0353735 | Washer, end cap screws | |
| 35 | 0353704 | Nut gearcase to extension | |
| 36 | 5008232 | Extension | |
| 37 | 0353931 | Pin, alignment | |
| 38 | 0353735 | Washer, end cap screws | |
| 39 | 0353704 | Nut gearcase to extension | |
| 40 | 0353298 | Gasket, exhaust housing to powerhead | |
| NS | 0320107 | Tie strap | |
| NS | 5008176 | Seal kit, lower cover to exhaust |
