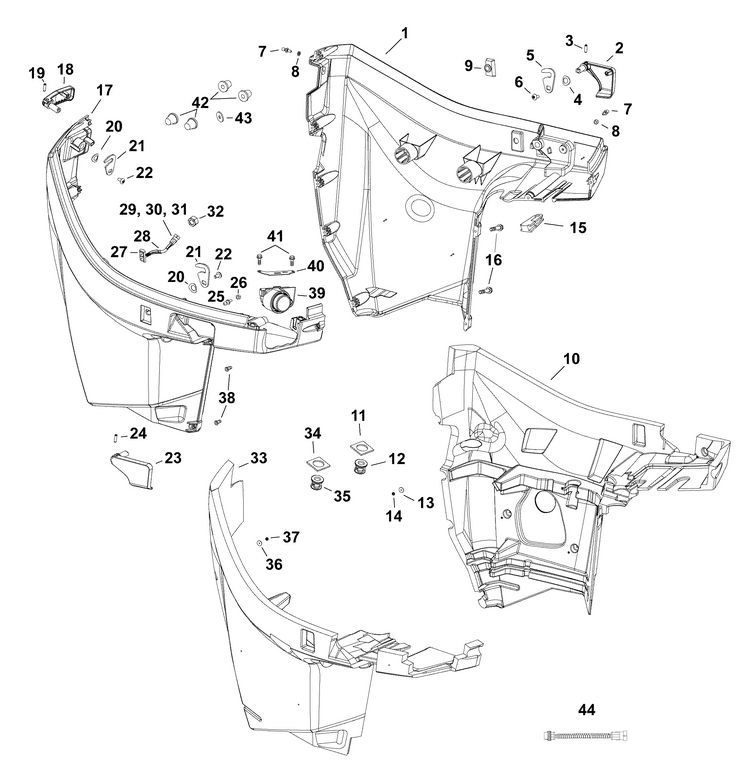

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description: Lower Cover, Port | Graphite Models
Category: EVINRUDE / AB Models / 200 - (60° V6, 2.6 L) / DE200PXABH / 01-3_LOWER ENGINE COVER
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5008261 | Lower cover assy., port "blue" blue models | |
1 | 5008263 | Lower cover assy., port "white" white models | |
1 | 5008267 | Lower cover, port graphite models | |
2 | 5005707 | Handle, latch | |
3 | 0344630 | Pin, roll | |
4 | 0330234 | Bow washer | |
5 | 0343578 | Crochet, avant arrière | |
6 | 0342191 | Screw, cam | |
7 | 0339575 | Screw, ball joint | |
8 | 0309485 | Ecrou, vis, rotule | |
9 | 0335694 | Plug, lower cover | |
10 | 0354136 | Foam barrier, lower | |
11 | 0351029 | Plate, valve | |
12 | 5004576 | Ensemble soupape | |
13 | 0352566 | Washer, foam barrier | |
14 | 0352567 | Nut, push foam barrier | |
15 | 0350771 | Grommet, trim tilt lead to cover | |
16 | 0351152 | Screw, port cover to starboard cover | |
17 | 5008262 | Lower cover assy., starboard "blue" blue models | |
17 | 5008264 | Lower cover assy., starboard "white" white models | |
17 | 5008268 | Lower cover, starboard graphite models | |
18 | 5005709 | Handle, rear latch | |
19 | 0344630 | Pin, roll | |
20 | 0330234 | Bow washer | |
21 | 0343578 | Crochet, avant arrière | |
22 | 0342191 | Screw, cam | |
23 | 5005708 | Handle, latch | |
24 | 0344630 | Pin, roll | |
25 | 0339575 | Screw, ball joint | |
26 | 0309485 | Ecrou, vis, rotule | |
27 | 0586789 | Switch assembly, trim tilt | |
28 | 0317893 | Tie strap | |
29 | 3011148 | Contact, tab | |
30 | 3011225 | Seal, wire | |
31 | 3011156 | Connector, 3 position | |
32 | 0334656 | Nut | |
33 | 0354137 | Foam barrier, lower | |
34 | 0351029 | Plate, valve | |
35 | 5004576 | Ensemble soupape | |
36 | 0352707 | Washer, foam barrier to cover | |
37 | 0352567 | Nut, push foam barrier | |
38 | 0354835 | Insert, nut | |
39 | 0351277 | Grommet, fuel electric | |
40 | 0351463 | Bracket, grommet to lower cover | |
41 | 0308743 | Screw, injector to manifold | |
42 | 0349557 | Mount | |
43 | 0349556 | Washer | |
44 | 5006201 | Extension lead, tilt trim tilt switch optional accessory | |
NS | 0215774 | 3 star see administrative bulletin 2004 02 a for order requirements |
