EVINRUDE-JOHNSON 5009259 Gearcase Assembly, Complete | Painted White

Write a Review
$5,760.49
SKU:
5009259
Schematic Object Key:
1

EVINRUDE-JOHNSON 5009259 Gearcase Assembly, Complete | Painted White

$5,760.49

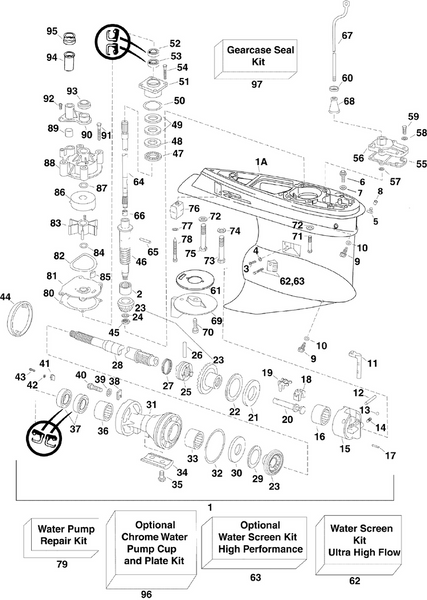

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5009259 Gearcase Assembly, Complete | Painted White

Schematic Object Key : 1

Replacement: This part (5009259) replaces 5005549.

Product Description: Gearcase Assembly, Complete | Painted White

Category: EVINRUDE / 2006 / 150 / E150FPXSDR / GEARCASE - PX MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5009259 Gearcase assembly, complete painted white This part replaces 5005549.
1A 5001589 Gearcase bearing assy
2 0387817 Bearing, pinion
3 0324852 Retaining screw seal
4 0332584 Washer, seal ring
5 0336535 Fitting, pitot tube
6 0341220 Screw, pitot seal
7 0437330 Rondelle joint, tube de pitot contents of gearcase seal kit.
8 0305749 Cap, nipple
9 0318544 Screw, fill drain contents of gearcase seal kit.
10 0311598 Seal
11 0356754 Detent, shifter This part replaces 0347377.
12 0317274 Pin, shift lever
13 0160084 Ball
14 0911962 Spring
15 5001601 Bearing hsg assy, fwd gear
16 0389039 Bearing, forward gear
17 0331880 Pin, housing to gearcase
18 0334163 Cradle, shifter
19 0322938 Lever, shift
20 0348483 Shaft, shift
21 0327669 Thrust washer, forward gear
22 0389042 Thrust bearing assembly, foward gear
23 5001582 Gear set, fwd, rev, pinion
24 0350038 Washer, pinion nut
25 0337774 Shifter, clutch dog
26 0313448 Pin, clutch dog
27 0324369 Spring, clutch dog pin
28 5004765 Propeller shaft
29 0389042 Thrust bearing assembly, foward gear
30 0349193 Thrust washer, reverse gear
31 5001587 Bearing hsg assy, propshaft
32 0326849 O ring, propshaft housing contents of gearcase seal kit.
33 0382407 Bearing assy, forward gear
34 0431708 Anode, bearing housing
35 0908158 Screw, anode
36 0436752 Bearing, propshaft
37 0334950 Seal contents of gearcase seal kit.
38 0352741 Tab, retainer
39 0328743 Rondelle
40 0350271 Screw
41 0349001 Wedge
42 0345998 Spring washer
43 0916070 Screw, wedge
44 0346462 Ring, propeller seal
44 0350626 Ring, propeller seal 4 blade renegade optional
45 0314730 Nut, pinion to driveshaft
46 0356900 Driveshaft, lower This part replaces 0347371.
47 0387656 Butée, arbre d'entraînement
48 0327656 Rondelle de butée, arbre d'entraînement
49 0323362 Cale, 0,003" 0,07 mm
49 0323361 Cale, 0,004" 0,10 mm
49 0314745 Cale, 0,005" 0,12 mm
50 0354731 O ring contents of gearcase seal kit. This part replaces 0314728.
51 0439476 Bearing housing seal
52 0329922 Joint, supérieur contents of gearcase seal kit.
53 0329923 Joint, inférieur contents of gearcase seal kit.
54 0317624 Screw, driveshaft hsg
55 0352165 Gasket, shift rod cover contents of gearcase seal kit.
56 5006241 Couvercle joint, tige de commande de sens de marche
57 0318372 "o" ring, shift rod contents of gearcase seal kit.
58 0328702 Washer
59 0302325 Screw, impeller housing
60 0321008 Grommet, exh hsg to shift rod
61 0331409 Seal, trim tab
62 5006337 Water screen kit, ultra high flow
63 5005124 Water screen kit, high perf.
64 5000624 Driveshaft assembly, upper
65 0311538 Roll pin, driveshaft
66 0338504 Retainer, driveshaft
67 0349591 Shift rod
68 0321122 Spacer, shift rod
69 0338742 Compensateur de dérive
70 0313715 Screw, cap, hex hd, 7 16 14 x 1
71 0331999 Screw, gearcase housing
72 0330266 Washer, trail lock lever
73 0331998 Screw, gearcase to housing
74 0330265 Washer
75 0330263 Screw, upper mount retention
76 0436745 Anode
77 0307161 Lock washer, anode
78 0341219 Screw, anode
79 5001595 Water pump repair kit
80 0338484 Gasket, imp. hsg. plate contents of gearcase seal kit.
81 0338485 Plate, impeller
82 0331353 Seal, impeller housing plate.
83 5001593 Impeller assembly
84 0302035 "o" ring, spacer to imp. hsg.
85 0331107 Clavette, turbine
86 0338486 Coupelle, turbine inox
87 0331188 O ring
88 0360347 Housing, impeller This part replaces 0435959.
89 0314008 Bague, tube à eau vers capot
90 0338893 Capot, carter de turbine
91 0302325 Screw, impeller housing
92 0306643 Screw
93 0320943 Bague, pompe vers carter d'échap.
94 0354580 Sleeve, extension This part replaces 0338636.
95 0338601 Grommet, sleeve to exh hsg
96 0435526 Chrome cup plate kit optional
97 5006373 Gearcase seal kit
