EVINRUDE-JOHNSON 5009352 Gearcase Assembly, Complete | Blue Models

Write a Review
$1,675.99
SKU:
5009352
Schematic Object Key:
-

EVINRUDE-JOHNSON 5009352 Gearcase Assembly, Complete | Blue Models

$1,675.99

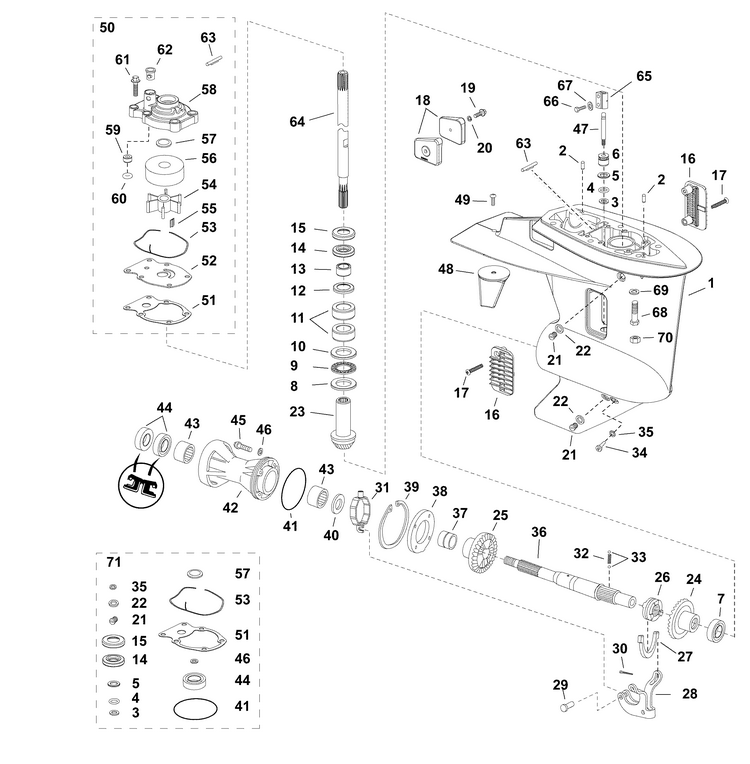

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5009352 Gearcase Assembly, Complete | Blue Models

Schematic Object Key : -

Product Description: Gearcase Assembly, Complete | Blue Models

Category: EVINRUDE / AB Models / 30 / E30DRGABB / 07-1_GEARCASE, H-Type

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
- 5009352 Gearcase assembly, complete blue models
- 5009354 Gearcase assembly, complete white models
- 5009358 Gearcase assembly, complete graphite models
1 5009360 Gearcase housing assembly
2 0353931 Pin, alignment
3 0321738 Washer, seal, shift rod contents of gearcase seal kit
4 0301877 O ring shift rod contents of gearcase seal kit
5 0303347 "o" ring, lower bearing contents of gearcase seal kit
6 0326361 Bushing, shift rod lower
7 0386186 Roller bearing, forward gear
8 0330441 Thrust washer, lower
9 0388027 Thrust bearing, pinion
10 0327716 Thrust washer, upper
11 0376856 Bearing assembly, pinion
12 0322018 Housing, bearing
13 0386473 Bearing assembly
14 0321928 Retainer, oil, , lower contents of gearcase seal kit
15 0332261 Seal, driveshaft upper contents of gearcase seal kit
16 0336206 Screen, intake
17 0325539 Screw, sceen to gearcase
18 5007582 Anode kit
19 0353588 Screw, anode mounting new
20 0304454 Lock washer
21 0307551 Screw contents of gearcase seal kit
22 0311598 Seal
23 0351147 Gear, pinion
24 0392475 Gear bushing assy., forward ratio 13 28 0.465 2.15 1
25 0327655 Gear, reverse
26 0337020 Shifter, clutch dog
27 0328311 Cradle, clutch dog
28 0337019 Lever, shifter
29 0302504 Pin, connector, shift rod
30 0303049 Cotter pin
31 0390023 Yoke connector assy
32 0327070 Spring, detent propeller shaft
33 0316506 Ball, detent
34 0308376 Pivot pin, shift lever
35 0332584 Washer, seal ring contents of gearcase seal kit
36 0439143 Propeller shaft
37 0319635 Bushing, reverse gear
38 0319746 Retainer plate, housing
39 0319747 Retaiining ring
40 0319684 Thrust washer
41 0338518 O ring, bearing housing
42 5008160 Bearing housing seal
43 0437288 Bearing assembly, propeller shaft
44 0321453 Seal, propeller shaft contents of gearcase seal kit
45 0319743 Screw, propeller shaft bearing housing
46 0332584 Washer, seal ring contents of gearcase seal kit
47 0353714 Shift rod, lower
48 5008161 Trim tab assy
48 0355125 Trim tab
49 0353589 Screw, trim tab
50 5008972 Water pump repair kit new
51 0325537 Gasket, plate to gearcase
52 0328755 Plate, impeller housing
53 0328753 Seal, impeller housing to plate contents of gearcase seal kit
54 5008968 Impeller assembly new
55 0344470 Key, impeller
56 0360633 Cup, impeller housing This part replaces 0328751.
57 0554545 "o" ring, small contents of gearcase seal kit
58 0393632 Impeller housing
59 0328754 Bushing, impeller housing
60 0301877 O ring shift rod
61 0353590 Screw
62 0302497 Grommet, lower water tube
63 5007770 Seal pin assy
- 0342370 Seal, gearcase to exhaust housing
- 0354156 Pin
64 0352898 Driveshaft 15 in. models
64 0352899 Driveshaft 20 in. models
64 0355258 Driveshaft 25 in. models
65 0303794 Connector
66 0304024 Screw
67 0301551 Washer, lock
68 0353554 Screw, starter to crankcase
69 0353735 Washer, end cap screws
70 0353704 Nut gearcase to extension 25 in. models
71 5007987 Gearcase seal kit
