EVINRUDE-JOHNSON 5009432 Bearing Housing Assembly

Write a Review
$203.49
SKU:
5009432
Schematic Object Key:
35

EVINRUDE-JOHNSON 5009432 Bearing Housing Assembly

$203.49

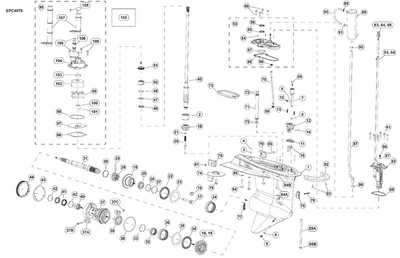

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5009432 Bearing Housing Assembly

Schematic Object Key : 35

Product Description: Bearing Housing Assembly

Category: EVINRUDE / AF Models / 150 - (G2, 66° V6, 2.7 L) / C150HWLFAFE - (G2 66° V6, 2.7 L) / 07-1_GEARCASE, SLX-Type (Ratio: 12:26, 0.46, 2.16:1)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
5011636 Gearcase assembly, complete less shift actuator upper driveshaft.
5011638 Gearcase assembly, complete, idock only less shift actuator upper driveshaft.
5011644 Gearcase assembly, complete less shift actuator upper driveshaft.
5011646 Gearcase assembly, complete, idock only less shift actuator upper driveshaft.
1 5008429 Gearcase bearing assembly
1 5011161 Gearcase bearing assembly non camberrd skeg, idock models only
1 5011721 Gearcase bearing assembly, white
1 5011720 Gearcase bearing assembly, white non camberrd skeg, idock models only
2 5008904 Bearing, pinion
3 0353931 Pin, alignment
4 0318544 Screw, fill drain contents of gearcase seal kit
5 0311598 Seal
6 0319344 "o" ring, crankshaft
7 0357872 Bushing, shift rod
8 0318372 "o" ring, shift rod
9 0355232 Stud, gearcase mounting
10 0321164 Plug
11 0321357 O ring
12 5009160 Detent, shifter
13 0317274 Pin, shift lever
14 0357672 Magnet
15 5009468 Bearing housing assembly forward gear
16 0389039 Bearing, forward gear
17 0356890 Pin, housing
18 0911962 Spring
19 0160084 Ball
20 0322938 Lever, shift contents of gearcase seal kit
21 0334163 Cradle, shifter contents of gearcase seal kit
22 0348483 Shaft, shift
23 0327669 Thrust washer, forward gear
24 0389042 Thrust bearing assembly, foward gear
25 5010202 Gearset, forward, reverse pinion gear ratio 12 26 0.46 2.16 1
26 0358403 Gear, reverse
27 0350038 Washer, pinion nut included with gearset
28 0314730 Nut, pinion to driveshaft included with gearset
29 0337774 Shifter, clutch dog
30 0313448 Pin, clutch dog
31 0324369 Spring, clutch dog pin
32 0357396 Propeller shaft
33 0389042 Thrust bearing assembly, foward gear
34 0357203 Thrust washer, reverse gear
35 5009432 Bearing housing assembly
36 0431708 Anode, bearing housing
37 0353785 Screw, anode
38 0911700 O ring, propshaft housing
39 5009135 Needle bearing assembly, front
40 5009136 Needle bearing assembly, rear
41 0358792 Ring, retaining contents of gearcase seal kit
42 5009137 Seal, propeller shaft
43 0358792 Ring, retaining contents of gearcase seal kit
44 0357146 Lock ring contents of gearcase seal kit
45 0357145 Spanner nut contents of gearcase seal kit
46 0357320 Anti ventilation ring
47 0355479 Screw pump, oil
48 0355485 Retainer, oil screw pump
49 0357377 Driveshaft, lower
50 0387656 Butée, arbre d'entraînement
51 0327656 Rondelle de butée, arbre d'entraînement
52 0323362 Cale, 0,003" 0,07 mm
52 0323361 Cale, 0,004" 0,10 mm
52 0314745 Cale, 0,005" 0,12 mm
53 0354731 O ring
54 0439476 Bearing housing seal
55 0329923 Joint, inférieur contents of gearcase seal kit
56 0329922 Joint, supérieur contents of gearcase seal kit
57 0357429 Screw m8 x 25
58 0353553 Screw m6 x 30
59 5010335 Shift actuator assembly This part replaces 5009433.
60 0355835 Seal, shift actuator cover
61 0307551 Screw
62 0311598 Seal
63 3011704 Connector, 6 socket plug
64 3011705 Lockwedge, 6 socket plug
65 3011706 Terminal, socket
66 0358817 Shift rod
67 5011599 Water pump repair kit
68 0355285 Gasket, impeller plate contents of gearcase seal kit
69 0362812 Plate, impeller housing stainless
70 0355401 Seal, impeller housing plate
71 5011603 Impeller repair kit
72 0302035 "o" ring, spacer to imp. hsg.
73 0331107 Clavette, turbine
74 0355170 Cup, impeller stainless
75 0331188 O ring
76 0355171 Impeller housing
77 0353579 Screw, impeller housing
78 0363426 Retainer, seal
79 0362956 Seal
80 0358565 Nut, flanged
81 0353741 Washer gearcase to exhaust housing or extension
82 0355964 Anode insert
83 0306486 Washer, screw, negative
84 0353554 Screw, starter to crankcase
85 WATER SCREEN KITS | Select from choices below:
85A 5009436 Water screen kit
85B 5010501 Water screen kit, high flow 0.060 in optional accessory
85C 5010502 Water screen kit, ultra high flow 0.160 in optional accessory
85D 5011694 Water screen kit, ultra high flow 0.410 in optional accessory
86 *SCREEN, Water intake - Starboard | Not available individually
87 *SCREEN, Water intake - Port | Not available individually
88 0337061 Screw, water intake screens
89 5009437 Water screen kit, low water pick up
90 *SCREEN, Water intake-Port | Not available individually
91 *SCREEN, Water intake-Starboard | Not available individually
92 0355403 Screw, water intake screens
93 0121470 Locknut, hook bolt to cross bar
94 0357226 Hose, gearcase to oil reservoir to expansion reservoir
95 0346786 Clamp
96 0357555 Sleeve, plastic long
NS 0357577 Sleeve
97 0357068 Driveshaft, upper 20 in. models
97 0357069 Driveshaft, upper 25 in. models
97 0357070 Driveshaft, upper 30 in. models
98 0302035 "o" ring, spacer to imp. hsg.
99 5008843 Plug tie strap shift actuator cable to block
100 5009873 Oil reservoir, gearcase see starboard covers
101 0348838 Clamp, 10.5 mm
102 0357427 Hose 0.25 in. 6.35 mm diameter bulk roll 25 ft. 7.62 m
103 0339276 Clamp
104 0346786 Clamp
NS 0315656 Screw see starboard engine cover
105 0355463 Seal, adapter all models
106 5009438 Gearcase seal kit
