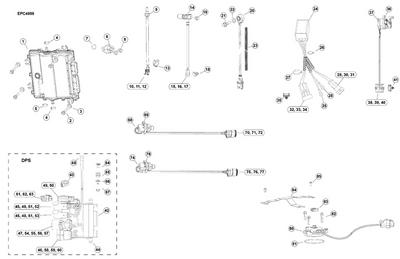

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 86
Product Description: Steering Sensor Assembly | Dps Models Only
Category: EVINRUDE / AA Models / 175 - (G2, 66° V6, 2.7 L) / C175PXAAF - (G2 66° V6, 2.7 L) / 02-4_MODULES & SENSORS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0587334 | Emm | |
NS | 0356614 | Hose, back pressure | |
NS | 0353038 | Restrictor, 0.013 back pressure hose | |
NS | 0346786 | Clamp back pressure hose to emm | |
NS | 0320107 | Tie strap back pressure hose to fitting | |
2 | 0356844 | Screw, emm mounting emm to baffle | |
3 | 0356845 | Screw m6 x 25 emm to center frame | |
4 | 0333040 | Isolator emm mounting | |
5 | 0338558 | Entretoise, Ã collerette | |
6 | 3010673 | Sensor, air temperature intake air | |
7 | 0304174 | "o" ring, tube adapter | |
8 | 0353753 | Screw, bracket to cyl c c m5 x 12 | |
9 | 3011989 | Sensor, engine temperature | |
10 | 3011147 | Contact, female receptacle | |
11 | 3011149 | Seal, wire | |
12 | 3011957 | Contact, receptacle | |
13 | 0587376 | Sensor, exhaust temperature | This part replaces 3012065. |
14 | 3011153 | Connecteur, fiche 2 positions | |
15 | 3011149 | Seal, wire | |
16 | 3011147 | Contact, female receptacle | |
NS | 0317893 | Tie strap | |
17 | 0587402 | Sensor, crankshaft position cps | This part replaces 0587014. |
18 | 3011148 | Contact, tab | |
19 | 3011149 | Seal, wire | |
20 | 3011156 | Connector, 3 position | |
21 | 3011292 | Clip, mounting cps connector | |
22 | 0353589 | Screw, trim tab | |
23 | 0587042 | Sensor, knock | |
24 | 0359272 | Screw, crankcase cover m8 x 35 | This part replaces 0353572. |
25 | 0301250 | Rondelle | |
26 | 3011666 | Tubing, convoluted | |
27 | 0586767 | Cable relay assembly trim tilt | |
28 | 0204053 | Borne, anneau 0,312" 7,9 mm diamètre 0.312 in. 7.9mm diameter | |
29 | 0317893 | Tie strap | |
30 | 0320107 | Tie strap | |
31 | 0600138 | Ring terminal 0.250 in. 6.3mm diameter | |
32 | 3010484 | Connector, 2 pin recpticle to trim motor | |
33 | 3010023 | Seal, wire | |
34 | 3010485 | Terminal | |
35 | 3011154 | Connector, 2 position plug to trim switch | |
36 | 3011149 | Seal, wire | |
37 | 3011148 | Contact, tab | |
38 | 0358999 | Clip,connector mounting trim motor relay | |
39 | 0587333 | Sending unit assembly trac models only | |
39 | 0587196 | Sending unit assembly all dps ihs models | |
40 | 0513323 | Ring terminal, 10 10 | |
41 | 3011147 | Contact, female receptacle | |
42 | 3011149 | Seal, wire | |
43 | 3011420 | Connector | |
44 | 0358999 | Clip,connector mounting | |
45 | 0587430 | Dps control module | |
46 | 0317893 | Tie strap | |
47 | 0330272 | Fitting | |
48 | 0357114 | Clip, retainer steering position connectors | |
49 | 3011292 | Clip, mounting can connector | |
50 | 5009587 | Plug tie strap assembly dps power connector | |
51 | 0600138 | Ring terminal 0.250 in. 6.3mm diameter | |
52 | 0514679 | Borne, broche | |
53 | 3012060 | Connector, 3 position cap | |
54 | 3011967 | Connector, 3 pin receptacle | |
55 | 3011961 | Lockwedge, 3 pin receptacle | |
56 | 0514682 | Lock wedge, 3 pin | |
57 | 3011920 | Connector, 3 position cap | |
58 | 3010485 | Terminal | |
59 | 3010023 | Seal, wire | |
60 | 3011919 | Secondary lock | |
61 | 3011421 | Connecteur, emm | |
62 | 3011148 | Contact, tab | |
63 | 3011225 | Seal, wire | |
64 | 0587328 | Connector seal | |
65 | 0514690 | Bouchon, mâle | |
66 | 3012061 | Connector, 3 position | |
67 | 0338558 | Entretoise, Ã collerette | |
68 | 0333040 | Isolator dps module mounting | |
69 | 0353761 | Rondelle, levier de sens de marche | |
70 | 0353553 | Screw m6 x 30 | |
71 | 0587478 | Sensor, pressure starboard | This part replaces 0587329. |
72 | 3011984 | Plug | |
73 | 3012083 | Lockwedge, blue | |
74 | 0514680 | Socket | |
75 | 0587342 | Clamp, ferrite | |
76 | 0587479 | Sensor, pressure port | This part replaces 0587317. |
77 | 3011984 | Plug | |
78 | 0514681 | Lock wedge, 3 socket | |
79 | 0514680 | Socket | |
80 | 0320107 | Tie strap | |
81 | 0587342 | Clamp, ferrite | |
82 | 0587312 | Lead assembly center frame, positive post to dps module | |
83 | 0204053 | Borne, anneau 0,312" 7,9 mm diamètre 0.312 in. 7.9mm diameter | |
84 | 3010023 | Seal, wire | |
85 | 0514823 | Terminal | |
86 | 5009680 | Steering sensor assembly dps models only | |
87 | 3012061 | Connector, 3 position | |
88 | 0514680 | Socket | |
89 | 0358350 | Screw, m5 x 25 | |
90 | 0358340 | Screw, m5x14 | |
NS | 0320107 | Tie strap steering sensor lead | |
91 | 0587342 | Clamp, ferrite | |
92 | 0587451 | Pressure sensor module idock models only | |
93 | 3011469 | Connector, 2 pin receptacle | |
94 | 0514697 | Lock wedge, 2 pin | |
95 | 0514679 | Borne, broche | |
96 | 0361102 | Clamp, pressure sensor | |
97 | 0361148 | Screws | |
98 | 5010559 | Steering position sensor kit incl 43 45 idock models only | |
99 | 0341620 | O ring | |
100 | 0353590 | Screw | |
102 | 0360838 | Grommet | |
104 | 0587422 | Cable assembly connects idock control module to power ground | |
105 | 0600138 | Ring terminal | |
106 | 3010048 | Connector, 2 pin | |
107 | 0514823 | Terminal | |
108 | 3010023 | Seal, wire | |
109 | 5010557 | Control module kit idock models only | |
â | 0587399 | Control module, idock not serviced | |
110 | 3011920 | Connector, 3 position cap to idock motor | |
111 | 3010485 | Terminal | |
112 | 3010023 | Seal, wire | |
113 | 3011919 | Secondary lock | |
114 | 5009587 | Plug tie strap assembly | |
NS | 0320107 | Tie strap | |
115 | 3010484 | Connector, 2 pin recpticle power ground | |
116 | 3010023 | Seal, wire | |
117 | 3010485 | Terminal | |
NS | 0346786 | Clamp | |
118 | 3011450 | Clip |
