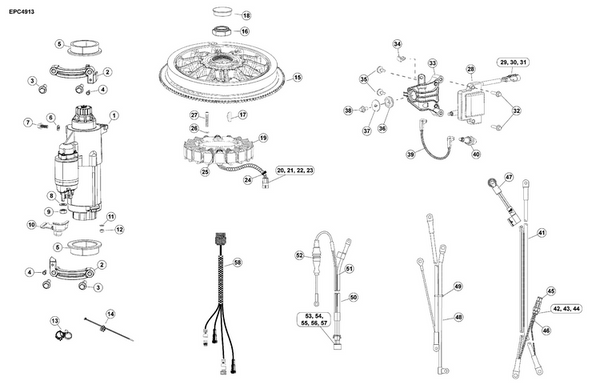

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 39
Product Description: Spark Plug Lead
Category: EVINRUDE / AF Models / 150 - (G2, 66° V6, 2.7 L) / C150GLPAFA - (G2 66° V6, 2.7 L) / 02-2_ELECTRICAL & IGNITION
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0587485 | Starter motor | |
2 | 0358912 | Bracket, starter motor | |
3 | 0362173 | Screw, m8 x 35 m8 x 35 | |
4 | 0353589 | Screw, trim tab engine harness ground to upper starter bracket | |
5 | 0355427 | Grommet, starter mounting | |
6 | 0356939 | Washer, m6 | |
7 | 0356534 | Screw, battery ground to starter motor | |
8 | 0327283 | Lockwasher | |
9 | 0356466 | Nut, m8x1.25 starter cable to solenoid | |
10 | 0354321 | Boot, starter cable | |
11 | 0327283 | Lockwasher | |
12 | 0356234 | Nut, m5 cable to starter solenoid | |
13 | 5009376 | Clip tie strap starter cable to starter motor | |
14 | 5009141 | Mount tie strap starter cable to crankcase | |
15 | 5011559 | Flywheel assembly | This part replaces 5008961. |
16 | 0326042 | Nut, flywheel | |
17 | 0307480 | Key | |
18 | 0357323 | Plug thread protector | |
19 | 0587245 | Stator ay,switcher | |
20 | 3011401 | Terminal, pin | |
21 | 3011167 | Seal, wire 14 gauge | |
22 | 3011392 | Connector | |
23 | 3011393 | Seal | |
24 | 0320107 | Tie strap | |
25 | 0317893 | Tie strap | |
26 | 0360252 | Washer stator screw | |
27 | 0343525 | Screw, stator | |
28 | 0587270 | Ignition coil | |
29 | 3011148 | Contact, tab | |
30 | 3011149 | Seal, wire | |
31 | 3011156 | Connector, 3 position | |
32 | 0359035 | Screw, ignition coil to bracket m6x30 | |
33 | 0358436 | Bracket, ignition coil mounting | |
34 | 3011292 | Clip, mounting ignition coil connector to bracket | |
35 | 0356491 | Bumper, ignition coil mounting bracket | |
36 | 0329518 | Grommet, esm mounting | |
37 | 0328700 | Washer | |
38 | 0353897 | Screw ignition coil bracket to fuel injector | |
39 | 5009781 | Spark plug lead | |
40 | 5010808 | Spark plug, champion qc10wepi champion qc10wepi | This part replaces 5010260. |
41 | 0587205 | Battery cable, 10 ft. 3.0 m | |
41 | 0587301 | Battery cable, 15 ft. 4.5 m | |
41 | 0587302 | Battery cable, 20 ft. 6.0 m | |
42 | 3011153 | Connecteur, fiche 2 positions | |
43 | 3011147 | Contact, female receptacle | |
44 | 3011225 | Seal, wire | |
45 | 3011154 | Connector, 2 position plug | |
46 | 0320107 | Tie strap | |
47 | 0322815 | Cover | |
48 | 0587132 | Cable assembly, starter to rigging center | |
49 | 0320107 | Tie strap | |
50 | 5009079 | Auxiliary battery charging kit optional accessory | |
51 | 0502359 | Battery cable, 8 gauge bulk roll 50 ft. 15.24 m | |
52 | 0982019 | Fuse, 50 amp | |
53 | 3011920 | Connector, 3 position cap | |
54 | 3011919 | Secondary lock | |
55 | 3010485 | Terminal | |
56 | 3010023 | Seal, wire | |
57 | 3011916 | Plug, cavity | |
58 | 0587411 | Cable assembly, "y" adapter idock models only. connects nmea remote control networks to idock module |
