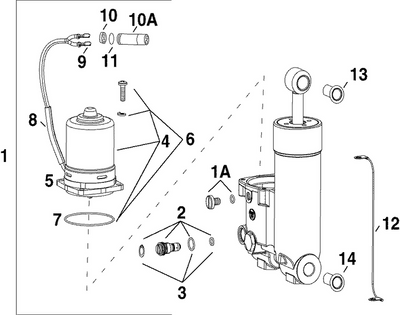

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 11
Product Description: Manual Release Valve Kit
Category: EVINRUDE / AB Models / 300 - (G2, 74° V6, 3.4 L) / E300ZUABA - (G2 74° V6, 3.4 L) / 08-1.2_TRIM & TILT MANIFOLD ASSEMBLY
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5009808 | Trim pump manifold assembly | |
| 1 | 5009818 | Trim tilt manifold assembly see dps manifold assembly | |
| 2 | 5009809 | Motor, o ring coupler kit | |
| NS | 3010049 | Connector, 2 position, motor lead | |
| NS | 3010050 | Secondary lock | |
| NS | 3010063 | Joint, fil | |
| NS | 0514823 | Terminal | |
| 3 | 0321163 | O ring, motor | |
| 4 | **COUPLER | ||
| 5 | 0358754 | Washer, motor screw | |
| 6 | 0358755 | Screw, motor to manifold | |
| 7 | 5009810 | Tank assembly includes items 14, 15, 16 | |
| 8 | 0358756 | Cap, tank | |
| 9 | 0358757 | Washer, tank screw | |
| 10 | 0358758 | Screw, tank | |
| 11 | 5009811 | Manual release valve kit | |
| 12 | **MANUAL RELEASE VALVE | ||
| 13 | **RETAINING RING, Manual release valve | ||
| 14 | 0318372 | "o" ring, shift rod | |
| 15 | 0909747 | O ring | |
| 16 | 0356937 | Filter | |
| 17 | 0359589 | Screw, m8 x 50 m8 x 50 | This part replaces 0357818. |
| 18 | 0587196 | Sending unit assembly | |
| 19 | 0320689 | Ecrou | |
| 20 | 0334885 | Spring arm return | |
| 21 | 0356354 | Arm | |
| 22 | 0511527 | Retainer | |
| 23 | 0513323 | Ring terminal, 10 10 | |
| 24 | 3011147 | Contact, female receptacle | |
| 25 | 3011149 | Seal, wire | |
| 26 | 3011420 | Connector | |
| 27 | 0362483 | Screw sending unit to swivel bracket | This part replaces 0358259. |
| 28 | 0358261 | Screw, m5 x 25 sending unit and ground lead to swivel bracket | |
| 29 | 0357134 | Washer, m5 ground lead to swivel bracket | |
| 30 | 0357117 | Cover,crankcase front ground lead to swivel bracket | |
| 31 | 5010081 | Trim rod kit includes anode kit, p n 0359580. | |
| 32 | *TUBE | ||
| 33 | *ANODE KIT | Original trim rods MUST be replaced inorder to add anode to AB models | ||
| 34 | 5009271 | Cover ball assembly integrated hydraulic steering ihs models only | |
| 35 | 0354818 | Screw, anode | |
| 36 | 0326956 | O ring | |
| 37 | 0357513 | Tube o ring trim manifold to tank | |
| NS | 0503955 | Split convoluted tubing max dia. in. 3 4 0.75 in. 19 mm diameter bulk roll 50 ft. 6.0 m | |
| NS | 0320107 | Tie strap | |
| NS | 3011450 | Clip trim sender connector to fuel inlet hose | |
| NS | 0508364 | Braided sleeve 0.625 in. 15.8 mm diameter bulk roll 75 ft. 22.9 m | |
| NS | 0587266 | Bonding lead tnt to swivel bracket |
