EVINRUDE-JOHNSON 5009824 Vent Assembly

Write a Review
$3.62
SKU:
5009824
Schematic Object Key:
2

EVINRUDE-JOHNSON 5009824 Vent Assembly

$3.62

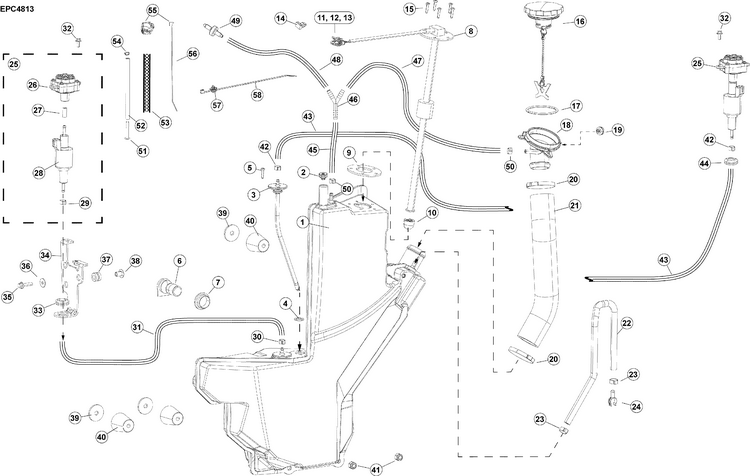

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5009824 Vent Assembly

Schematic Object Key : 2

Product Description: Vent Assembly

Category: EVINRUDE / AA Models / 150 - (G2, 66° V6, 2.7 L) / C150PLHAAC - (G2 66° V6, 2.7 L) / 03-6_OIL TANK & PUMP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5010119 Oil tank assembly, complete
0358630 Oil tank
2 5009824 Vent assembly
3 5009903 Oil pick up assembly
4 0358770 O ring
5 0328649 Screw, bowl to body
6 0357892 Oil level switch
7 0362027 Grommet, oil switch This part replaces 0353920.
8 5010118 Sender, oil level
9 0359348 Gasket, oil level sender
10 0358992 Stabilizer, oil sender
11 3011153 Connecteur, fiche 2 positions
12 3011147 Contact, female receptacle
13 3011149 Seal, wire
14 3011292 Clip, mounting oil level sensor connector
15 0328649 Screw, bowl to body
16 5009787 Oil cap assembly
17 0356504 O ring
18 0360213 Oil fill neck
19 5009824 Vent assembly
20 0357516 Clamp, 51.5 mm
21 0356081 Hose, oil fill
22 0358778 Hose, oil inlet connector to oil tank remote oil fill
23 0346785 Clamp, 14.5 mm
24 0329661 Holder, plug
25 5008808 Oil pump manifold assembly
26 5007914 Oil manifold assembly
27 0355823 Hose, manifold to pump sealing
28 5009440 Oil pump kit
29 0348838 Clamp, 10.5 mm
30 0348838 Clamp, 10.5 mm oil supply hose to oil pick up
31 0359584 Hose, oil tank to rear oil pump
32 0353753 Screw, bracket to cyl c c
33 0329518 Grommet, esm mounting
34 0358884 Bracket, oil pump
35 0353590 Screw
36 0353761 Rondelle, levier de sens de marche
37 0333040 Isolator
38 0338558 Entretoise, à collerette
39 0357106 Washer
40 0356901 Mount, rubber
41 0353728 Nut, flanged lower mount
42 0348838 Clamp, 10.5 mm oil supply hose to oil pick up and oil pump
43 0772571 Hose 5 32 in. 3.96 mm diameter bulk roll 25 ft. 7.62 m
44 0329518 Grommet, esm mounting
45 0357427 Hose 1 4 in. 6 mm diameter bulk roll 25 ft. 7.62 m
46 0359768 "y" fitting, 1 4 in. 6 mm
47 0357427 Hose 1 4 in. 6 mm diameter bulk roll 25 ft. 7.62 m
48 0357427 Hose 1 4 in. 6 mm diameter bulk roll 25 ft. 7.62 m
49 0359850 Check valve
50 0348838 Clamp, 10.5 mm oil tank vent hose
51 0349898 Hose, support
52 0778708 Hose 0.093 in. 2.36 mm diameter, bulk roll 25 ft. 7.62 m
53 0356715 Sleeve, braided oil manifold to crankcase oil hose
54 0320107 Tie strap
55 5009376 Clip tie strap retain oil hoses to fuel injector tubes
56 0320107 Tie strap
57 5008843 Plug tie strap retain oil vent and hose to center frame
58 0320107 Tie strap
