EVINRUDE-JOHNSON 5009941 Motor, O-Ring & Coupler Kit | Dps Pump

Write a Review
$197.49
SKU:
5009941
Schematic Object Key:
10

EVINRUDE-JOHNSON 5009941 Motor, O-Ring & Coupler Kit | Dps Pump

$197.49

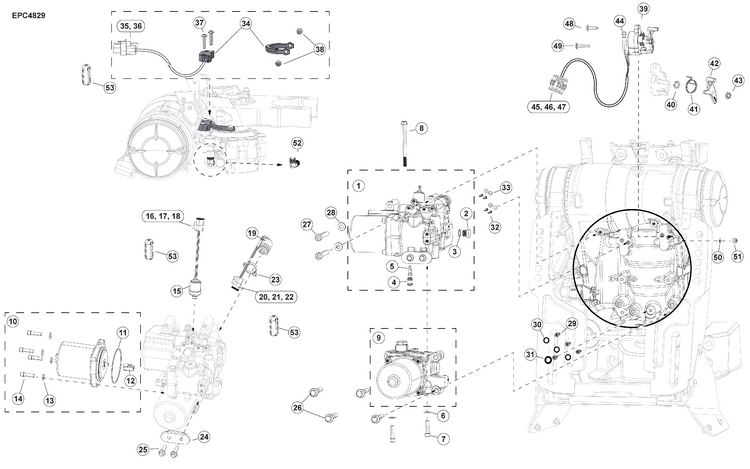

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5009941 Motor, O-Ring & Coupler Kit | Dps Pump

Schematic Object Key : 10

Product Description: Motor, O-Ring & Coupler Kit | Dps Pump

Category: EVINRUDE / AG Models / 225 - (G2, 74° V6, 3.4 L) / E225XAGG - (G2 74° V6, 3.4 L) / 06-5.1_DPS MANIFOLD ASSEMBLY (FULL FEATURED)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5009945 Dps manifold assembly includes items 29, 30, 31, 32, 33
2 0362843 Cap, trim fluid reservoir This part replaces 0357695.
3 0362846 O ring This part replaces 0357511.
4 0357513 Tube o ring trim manifold to dps manifold, lower
5 0356937 Filter trim manifold to reservoir
6 0329241 Washer trim manifold to dps manifold
7 0361002 Screw trim manifold to dps manifold, lower This part replaces 0357512.
8 0324643 Screw dps manifold to trim manifold
9 5009818 Trim tilt manifold assembly includes items 26, 27, 28, 29, 30, 31, 32, 33
10 5009941 Motor, o ring coupler kit dps pump
NS 3011918 Connector, 3 posiiton plug
NS 3011919 Secondary lock
NS 3010023 Seal, wire
NS 0514823 Terminal
11 0321163 O ring, motor
12 0359280 Coupler
13 0329241 Washer motor screw
14 0357510 Screw, motor to pump 1 4 20 x 0.88
15 0587478 Sensor, pressure starboard steering pressure This part replaces 0587329.
NS 0587342 Clamp, ferrite
16 3011984 Plug
17 0514681 Lock wedge, 3 socket
18 0514680 Socket
19 0587479 Sensor, pressure port steering pressure This part replaces 0587317.
20 3011984 Plug
21 0514681 Lock wedge, 3 socket
22 0514680 Socket
23 0320107 Tie strap
24 0357507 Anode
25 0353590 Screw m6x25
26 0359589 Screw, m8 x 50 trim manifold to swivel bracket This part replaces 0357818.
27 0357487 Screw, m8 x 60 dps manifold to swivel bracket
28 0353735 Washer, end cap screws dps manifold to swivel bracket
29 0356937 Filter trim manifold to swivel bracket
30 0909747 O ring
31 0318372 "o" ring, shift rod
32 0357367 Filter, oil steering manifold swivel bracket to steering manifold
33 0326956 O ring
34 5009680 Steering sensor assembly
NS 0587342 Clamp, ferrite
35 3012061 Connector, 3 position
36 0514680 Socket
37 0358350 Screw, m5 x 25 sensor
38 0358340 Screw, m5x14 sensor magnet
NS 0320107 Tie strap steering sensor lead
39 0587196 Sending unit assembly
40 0320689 Écrou
41 0511528 Spring
42 0342386 Arm
43 0511527 Retainer
44 0513323 Ring terminal, 10 10
45 3011420 Connector
46 3011147 Contact, female receptacle
47 3011149 Seal, wire
NS 0320107 Tie strap sending unit lead
48 0362483 Screw sending unit to swivel bracket This part replaces 0358259.
49 0358261 Screw, m5 x 25 sending unit and ground lead to swivel bracket
50 0357134 Washer, m5 ground lead to swivel bracket
51 0357117 Cover,crankcase front ground lead to swivel bracket
NS 0587266 Bonding lead tnt to swivel bracket
52 0355965 Fitting, elbow hydraulic steering hoses
53 0587342 Clamp, ferrite not included with sensor.
NS 0357696 Plug screw, 3 4 in.
NS 0911729 O ring
