EVINRUDE-JOHNSON 5010502 Water Screen Kit, Ultra-High Flow (+0.160 In) | Optional Accessory

Write a Review
$27.99
SKU:
5010502
Schematic Object Key:
90C

EVINRUDE-JOHNSON 5010502 Water Screen Kit, Ultra-High Flow (+0.160 In) | Optional Accessory

$27.99

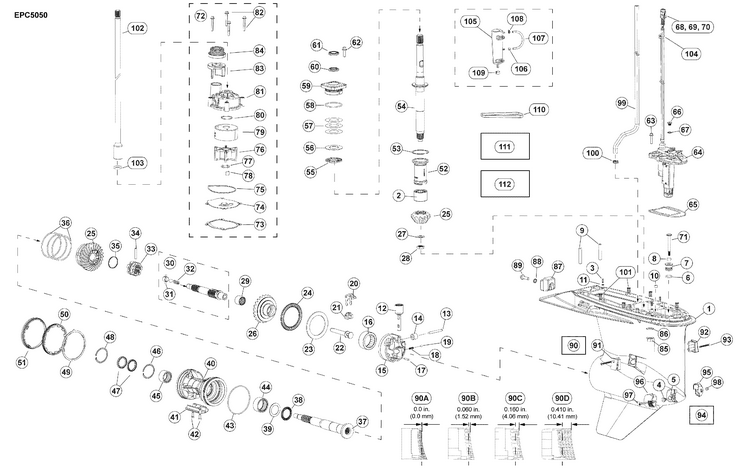

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5010502 Water Screen Kit, Ultra-High Flow (+0.160 In) | Optional Accessory

Schematic Object Key : 90C

Product Description: Water Screen Kit, Ultra-High Flow (+0.160 In) | Optional Accessory

Category: EVINRUDE / AF Models / 175 - (G2, 66° V6, 2.7 L) / C175WXCPAFB - (G2 66° V6, 2.7 L) / 07-1_GEARCASE, SLX-Type - Counter Rotation (Ratio: 12:26, 0.46, 2.16:1)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
5011640 Gearcase assembly, complete less shift actuator upper driveshaft.
5011642 Gearcase assembly, complete, idock only less shift actuator upper driveshaft.
5011648 Gearcase assembly, complete less shift actuator upper driveshaft.
5011650 Gearcase assembly, complete, idock only less shift actuator upper driveshaft.
1 5008429 Gearcase bearing assembly gray
1 5011161 Gearcase bearing assembly non camberrd skeg, idock models only
1 5011721 Gearcase bearing assembly, white
1 5011720 Gearcase bearing assembly, white non camberrd skeg, idock models only
2 5008904 Bearing, pinion
3 0353931 Pin, alignment
4 0318544 Screw, fill drain contents of gearcase seal kit
5 0311598 Seal
6 0319344 "o" ring, crankshaft
7 0357872 Bushing, shift rod
8 0318372 "o" ring, shift rod
9 0355232 Stud, gearcase mounting
10 0321164 Plug
11 0321357 O ring
12 5009160 Detent, shifter
13 0317274 Pin, shift lever
14 0357672 Magnet
15 5009468 Bearing housing assembly reverse gear
16 0389039 Bearing, forward gear
17 0356890 Pin, housing
18 0911962 Spring
19 0160084 Ball
20 0322938 Lever, shift
21 0334163 Cradle, shifter
22 0348483 Shaft, shift
23 0327669 Thrust washer, forward gear
24 0389042 Thrust bearing assembly, foward gear
25 5010203 Gearset, forward, reverse pinion counter rotation, ratio 12 26 0.46 2.16 1
26 0358738 Gear, reverse
27 0350038 Washer, pinion nut
28 0314730 Nut, pinion to driveshaft
29 0377868 Bearing, clutch shaft to reverse gear
30 5007404 Clutch shaft assembly
31 0160084 Ball
32 0360001 Spring
33 0337774 Shifter, clutch dog
34 0313448 Pin, clutch dog
35 0324369 Spring, clutch dog pin
36 0353097 Shim, 0.003 in. 0,07mm
36 0353098 Shim, 0.004 in. 0,10mm
36 0353099 Shim, 0.005 in. 0,12mm
36 0353334 Shim, 0.01 in. 0,25mm
37 0357204 Propeller shaft
38 0382408 Thrust bearing
39 0313447 Thrust washer
40 5009489 Bearing housing assembly propeller shaft
41 0431708 Anode, bearing housing
42 0353785 Screw, anode
43 0911700 O ring, propshaft housing
44 0431926 Needle bearing assembly, front
45 5009136 Needle bearing assembly, rear
46 0358792 Ring, retaining contents of gearcase seal kit
47 5009137 Seal, propeller shaft
48 0358792 Ring, retaining
49 0357146 Lock ring contents of gearcase seal kit
50 0357145 Spanner nut contents of gearcase seal kit
51 0357320 Anti ventilation ring
52 0355479 Screw pump, oil
53 0355485 Retainer, oil screw pump
54 0357377 Driveshaft, lower
55 0387656 Butée, arbre d'entraînement
56 0327656 Rondelle de butée, arbre d'entraînement
57 0323362 Cale, 0,003" 0,07 mm
57 0323361 Cale, 0,004" 0,10 mm
57 0314745 Cale, 0,005" 0,12 mm
58 0354731 O ring contents of gearcase seal kit
59 0439476 Bearing housing seal
60 0329923 Joint, inférieur contents of gearcase seal kit
61 0329922 Joint, supérieur contents of gearcase seal kit
62 0357429 Screw m8 x 25 contents of gearcase seal kit
63 0353553 Screw m6 x 30
64 5010335 Shift actuator assembly
65 0355835 Seal, shift actuator cover contents of gearcase seal kit
66 0307551 Screw contents of gearcase seal kit
67 0311598 Seal contents of gearcase seal kit
68 3011704 Connector, 6 socket plug
69 3011705 Lockwedge, 6 socket plug
70 3011706 Terminal, socket
71 0358817 Shift rod
72 5011599 Water pump repair kit
73 0355285 Gasket, impeller plate contents of gearcase seal kit
74 0362812 Plate, impeller housing stainless
75 0355401 Seal, impeller housing plate
76 5011603 Impeller repair kit
77 0302035 "o" ring, spacer to imp. hsg.
78 0331107 Clavette, turbine
79 0355170 Cup, impeller stainless
80 0331188 O ring
81 0355171 Impeller housing
82 0353579 Screw, impeller housing
83 0363426 Retainer, seal
84 0362956 Seal
85 0358565 Nut, flanged
86 0353741 Washer gearcase to exhaust housing or extension
87 0355964 Anode insert
88 0306486 Washer, screw, negative
89 0353554 Screw, starter to crankcase
90 WATER SCREEN KITS | Select from choices below:
90A 5009436 Water screen kit
90B 5010501 Water screen kit, high flow 0.060 in optional accessory
90C 5010502 Water screen kit, ultra high flow 0.160 in optional accessory
90D 5011694 Water screen kit, ultra high flow 0.410 in optional accessory
91 *SCREEN, Water intake-Starboard | Not available individually
92 *SCREEN, Water intake-Port | Not available individually
93 0337061 Screw, water intake screens
94 5009437 Water screen kit, low water pick up
95 *SCREEN, Water intake-Port | Not available individually
96 *SCREEN, Water intake-Starboard | Not available individually
97 0355403 Screw, water intake screens
98 0121470 Locknut, hook bolt to cross bar
99 0357226 Hose, gearcase to oil reservoir to expansion reservoir
100 0346786 Clamp
101 0357555 Sleeve, plastic long
NS 0357577 Sleeve
102 0357068 Driveshaft, upper 20 in. models
102 0357069 Driveshaft, upper 25 in. models
102 0357070 Driveshaft, upper 30 in. models
103 0302035 "o" ring, spacer to imp. hsg.
104 5008843 Plug tie strap shift actuator cable to block
105 5009873 Oil reservoir, gearcase see starboard covers
106 0348838 Clamp, 10.5 mm
107 0357427 Hose 0.25 in. 6.35 mm diameter, bulk roll 25 ft. 7.62 m
108 0339276 Clamp
109 0346786 Clamp
NS 0315656 Screw oil bottle mounting
110 0355463 Seal, adapter all models
111 5009438 Gearcase seal kit
