EVINRUDE-JOHNSON 5011001 Frame Assembly, Port | Slate Gray

Write a Review
$685.99
SKU:
5011001
Schematic Object Key:
8

EVINRUDE-JOHNSON 5011001 Frame Assembly, Port | Slate Gray

$685.99

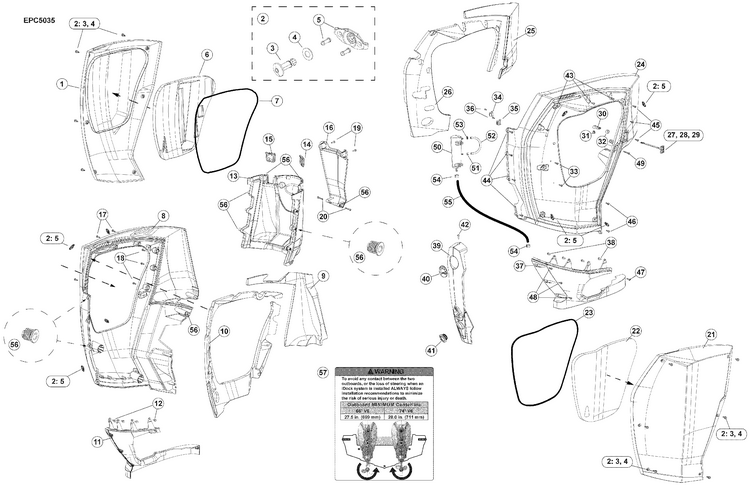

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5011001 Frame Assembly, Port | Slate Gray

Schematic Object Key : 8

Product Description: Frame Assembly, Port | Slate Gray

Category: EVINRUDE / AK Models / 200 - (G2, 74° V6, 3.4 L) / H200GXCAAKA - (G2 74° V6, 3.4 L) / 01-2.2_ENGINE COVERS (PORT & STARBOARD)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0286127 Cover assembly, port standard deep black
1 0286128 Cover assembly, port standard bright white
1 0286129 Cover assembly, port radical red
1 0286130 Cover assembly, port orbital blue
1 0286131 Cover assembly, port hyper silver
1 0286147 Cover assembly, port ice blue
1 0286083 Cover assembly, port unpainted, does not include decals, or hardware
1 0286151 Cover assembly, port classic white
2 5009991 Screw, retainer and clip kit kit services 6 quarter turn screws
3 **SCREW, Quarter-turn | Not available individually
4 **RETAINER, Screw | Not available individually
5 **CLIP, Quarter-turn screw | Not available individually
NS 0358016 Rivet
6 0357090 Blanket, sound
7 0359757 Seal
8 5011001 Frame assembly, port slate gray
8 5010995 Frame assembly, port white
9 0357325 Blanket, sound
10 0357093 Blanket, sound
11 0362168 Cover, exhaust housing port slate gray
11 0362130 Cover, exhaust housing port white
12 0323229 Screw, tilt handle, front inner
13 5009172 Frame, front
NS 0357095 Blanket, sound
14 0356489 Grommet, starboard
15 0356490 Grommet, port
16 0357604 Cover assembly, front standard deep black
16 0357605 Cover assembly, front bright white
16 0357606 Cover assembly, front radical red
16 0357607 Cover assembly, front orbital blue
16 0357608 Cover assembly, front hyper silver
16 0359961 Cover assembly, front ice blue
16 0361083 Cover assembly, front unpainted, does not include decals, or hardware
16 0362125 Cover assembly, front classic white
17 0362483 Screw port frame to center frame upper
18 0362483 Screw port frame to motor frame upper, front
19 0362483 Screw front cover to motor frame front
20 0358285 Screw, side frame to lower front cover side frame to lower front cover This part replaces 0357658.
NS 0358257 Insert, m5 x 0.8 oversized o.d. for replacement
21 0286134 Cover assembly, starboard deep black
21 0286135 Cover assembly, starboard bright white
21 0286136 Cover assembly, starboard radical red
21 0286137 Cover assembly, starboard orbital blue
21 0286138 Cover assembly, starboard hyper silver
21 0286139 Cover assembly, starboard ice blue
21 0286084 Cover assembly, starboard unpainted, does not include decals, or hardware
21 0286152 Cover assembly, starboard classic white
22 0357091 Blanket, sound
23 0359757 Seal
24 5011002 Frame assembly, starboard slate gray
24 5010996 Frame assembly, starboard white
25 0357324 Blanket, sound
26 0357094 Blanket, sound
27 0586789 Switch assembly, trim tilt
28 3011148 Contact, tab
29 3011225 Seal, wire
30 3011156 Connector, 3 position
31 3011912 Mount, connector
32 0334656 Nut
33 0358892 Screw oil reservoir mounting
34 3011913 Cap, 3 pin connector
35 3011914 Cap, 6 pin connector
36 0343245 Screw
37 0362169 Cover, exhaust housing starboard slate gray
37 0362129 Cover, exhaust housing starboard white
38 0323229 Screw, tilt handle, front exhaust housing cover to starboard frame
39 5010998 Cover assembly, rear frame slate gray This part replaces 5010041.
39 5010997 Cover assembly, rear frame white
40 0217004 Lens, logo 68 mm
41 0356286 Retainer
42 0362483 Screw rear cover to frames
43 0362483 Screw starboard frame to center frame upper
44 0362483 Screw starboard frame to port frame rear
45 0362483 Screw starboard frame to port frame lower, front
46 0362483 Screw starboard frame to motor frame upper, front
47 0362483 Screw starboard to port exhaust cover front
48 0362483 Screw starboard to port exhaust cover rear
49 0359149 Screw, m5 x 550 starboard to port frame to lower front
NS 0358257 Insert, m5 x 0.8 oversized o.d. for replacement
50 5009873 Oil reservoir, gearcase
51 0348838 Clamp, 10.5 mm
52 0357427 Hose 0.25 in. 6.35 mm diameter bulk roll 25 ft. 7.62 m
53 0339276 Clamp
54 0346786 Clamp
55 0357226 Hose, gearcase to oil reservoir
56 0358257 Insert, m5 x 0.8 oversized o.d. for replacement
57 0361546 Decal, idock warning front frame
