EVINRUDE-JOHNSON 5011126 Stern & Swivel Bracket Assembly, Complete | White - For Warratny Use Only

Write a Review
$3,973.49
SKU:
5011126
Schematic Object Key:
–

EVINRUDE-JOHNSON 5011126 Stern & Swivel Bracket Assembly, Complete | White - For Warratny Use Only

$3,973.49

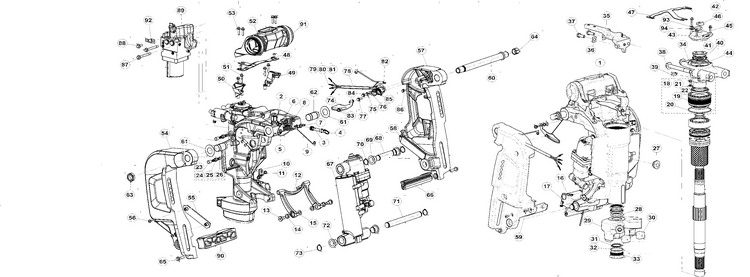

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5011126 Stern & Swivel Bracket Assembly, Complete | White - For Warratny Use Only

Schematic Object Key : –

Product Description: Stern & Swivel Bracket Assembly, Complete | White - For Warratny Use Only

Category: EVINRUDE / AA Models / 150 - (G2, Inline 3-Cyl, 1.865 L) / K150GXTAAB - (G2, Inline 3-Cyl., 1.865 L) / 06-3 POWER TILLER STERN & SWIVEL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
– 5011896 Stern swivel bracket assembly, complete slate gray for warratny use only
– 5011126 Stern swivel bracket assembly, complete white for warratny use only
1 *SWIVEL BRACKET ASSEMBLY | Not serviced separately
2 0362044 Bushing, steering lock
3 0361925 Grommet, steering lock pin
4 0361824 Pin, steering lock
5 0361142 Lanyard assembly
6 0358340 Screw, m5x14
7 0313607 Lube fitting
8 0328724 Screw
9 0584472 Bonding lead
10 0359665 Retainer, trail lock lever
11 0328724 Screw
12 5011147 Lever assembly, painted trail lock
12 5011148 Lever assembly, painted trail lock
– 0360573 Lever, trail lock
13 0335487 Screw, trail lock lever
14 0335701 Bushing, trail lock lever
15 0330266 Washer, trail lock lever
16 0335814 Retainer, trail lock
17 0336210 Spring, trail lock spring
18 5011127 End cap seal kit
19 ***END CAP & SEAL ASSEMBLY | Not serviced separately
20 0359969 O ring
21 0328724 Screw
22 0359673 Tab, retaining
23 5009972 Kit, bleed valve existing service kit
24 0315391 Cover
25 ***FITTING, Bleed valve | Not serviced separately
26 0303191 "o" ring, lever shaft
27 0361341 Grommet
28 0357814 O ring
29 5011128 Steering bracket lower, painted slate gray
29 5011129 Steering bracket lower, painted white
– 0362108 Bracket, lower steering
30 0362109 Bumper
31 0355028 Retaining ring
32 0313754 O ring
33 0354962 Plug
34 5011130 Steering bracket upper painted slate gray
34 5011131 Steering bracket upper painted white
35 5011551 Bracket assembly power tiller incl sensor
36 0360498 Washer, locking tab
37 0362482 Screw, m10 x 30
38 0362479 Screw, steering bracket to upper mount
39 0358999 Clip,connector mounting
40 0356876 Washer, tab
41 0356877 Nut, steering shaft
42 5010559 Steering position sensor kit incl 43 45 existing service kit
43 **STEERING POSITION SENSOR ASSEMBLY | Not serviced separately
44 0341620 O ring
45 0361622 Screw, m6 x 25
46 0360838 Grommet
47 0361773 Bracket, steering position sensor
48 0361677 Screw, m6 x 10 steering position sensor to brackets
49 0361710 Bracket, port rigging
50 0361712 Bracket, starboard rigging
51 0353553 Screw m6 x 30 rigging brackets to swivel bracket assembly
52 5010729 Rigging housing assembly also see rigging housing
53 0353553 Screw m6 x 30 rigging housing to rigging brackets
54 5010979 Stern bracket assembly, painted starboard slate gray
54 5011132 Stern bracket assembly, painted starboard white
55 0362141 Trim pad, starboard
56 0362121 Screw, trim pad
57 5010980 Stern bracket assembly, painted port slate gray
57 5011133 Stern bracket assembly, painted port white
58 0362055 Trim pad, port
59 0362121 Screw, trim pad
60 5010675 Tilt tube assembly
61 0910992 Rondelle, tube de relevage
62 0337579 Bushing, lower pivot shaft
63 0335554 Locknut, tilt tube
64 0317894 Cap, tilt tube
65 0362173 Screw, m8 x 35 anode to stern brackets
66 5009241 Anode assembly
67 5011186 Trim tilt hydraulic assembly also see trim tilt hydraulic unit This part replaces 5010780.
68 0335480 Tilt pin, upper
69 0335479 Bushing, tilt pin
70 0336534 Retaining ring, lower tilt pin
71 0335463 Tilt pin, lower
72 0335479 Bushing, tilt pin
73 0336534 Retaining ring, lower tilt pin
74 0333739 Retainer, fuel hose to cover This part replaces 0329610.
75 0328743 Rondelle
76 0309750 Washer, spring
77 0329160 Screw, anchor to bracket
78 0587333 Sending unit assembly
79 3011149 Seal, wire
80 3011147 Contact, female receptacle
81 3011420 Connector not shown
82 0513323 Ring terminal, 10
83 0329160 Screw, anchor to bracket
84 0328744 Screw, clamp 1 4 20 x .75
85 0328702 Washer
86 0332226 Screw, air temperature sensor
87 0360972 Screw, anode
88 0354818 Screw, anode
89 5011825 Power tiller manifold assembly
90 0362590 Grommet, water deflector
91 0362719 Grommet rigging housing power tiller only
92 362716 Clip incl in 1
93 328701 Washer power tiller only
94 316487 Bracket power tiller sensor
