EVINRUDE-JOHNSON 5011135 Stern & Swivel Bracket Assembly, Complete | White - For Warratny Use Only

Write a Review
$3,309.49
SKU:
5011135
Schematic Object Key:

EVINRUDE-JOHNSON 5011135 Stern & Swivel Bracket Assembly, Complete | White - For Warratny Use Only

$3,309.49

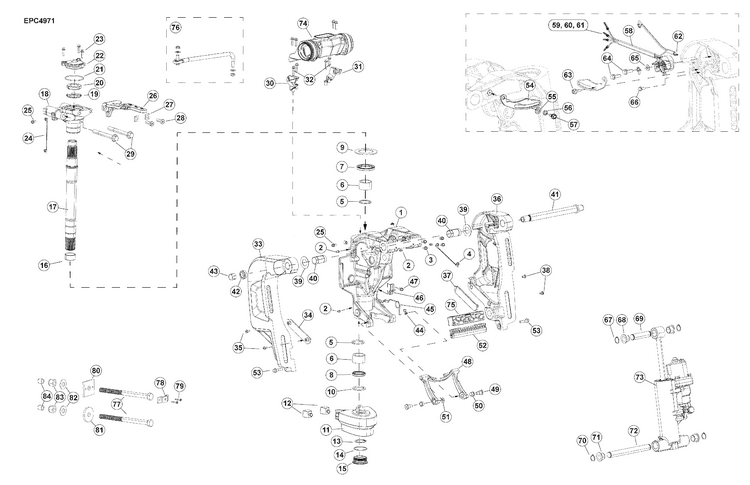

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5011135 Stern & Swivel Bracket Assembly, Complete | White - For Warratny Use Only

Schematic Object Key :

Product Description: Stern & Swivel Bracket Assembly, Complete | White - For Warratny Use Only

Category: EVINRUDE / AA Models / 115 - (G2, Inline 3-Cyl, 1.865 L) / K115HGXPAAA - (G2, Inline 3-Cyl., 1.865 L) / 06-3_STERN & SWIVEL BRACKET (Non-DPS)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
5010978 Stern swivel bracket assembly, complete gray for warratny use only
11 5011128 Steering bracket lower, painted gray
5011135 Stern swivel bracket assembly, complete white for warratny use only
1 5011155 Swivel bracket assembly, painted gray for warratny use only
1 5011156 Swivel bracket assembly, painted white for warratny use only
2 0313607 Lube fitting
3 0328724 Screw
4 0584472 Bonding lead
5 0360530 O ring
6 0360598 Bearing
7 0357697 Seal
8 0355455 Seal
9 0361892 Washer, thrust
10 0357814 O ring
11 5011129 Steering bracket lower, painted white
12 0362109 Bumper
13 0355028 Retaining ring
14 0313754 O ring
15 0354962 Plug
16 0354682 Sleeve, steeriing shaft
17 0362182 Shaft, steering
18 5011130 Steering bracket upper painted gray
18 5011131 Steering bracket upper painted white
0361891 Bracket, upper steering
19 0356876 Washer, tab
20 0356877 Nut, steering shaft
21 0341620 O ring
22 0355137 Cover
23 0361622 Screw, m6 x 25
24 0335200 Bonding lead
25 0335200 Bonding lead
26 5011182 Steering arm, assembly, painted gray
26 5011183 Steering arm, assembly, painted white
27 0360498 Washer, locking tab
28 0362482 Screw, m10 x 30 steering arm to steering bracket
29 0362479 Screw, steering bracket to upper mount
30 0361712 Bracket, starboard rigging
31 0361710 Bracket, port rigging
32 0353553 Screw m6 x 30
33 5010979 Stern bracket assembly, painted starboard gray
33 5011132 Stern bracket assembly, painted starboard white
34 0362141 Trim pad, starboard
35 0362121 Screw, trim pad
36 5010980 Stern bracket assembly, painted port gray
36 5011133 Stern bracket assembly, painted port white
37 0362055 Trim pad, port
38 0362121 Screw, trim pad
39 0910992 Rondelle, tube de relevage
40 0337579 Bushing, lower pivot shaft
41 5010675 Tilt tube assembly
42 0335554 Locknut, tilt tube
43 0317894 Cap, tilt tube
44 0335814 Retainer, trail lock
45 0336210 Spring, trail lock spring
46 0359665 Retainer, trail lock lever
47 0328724 Screw
48 5011147 Lever assembly, painted trail lock
48 5011148 Lever assembly, painted trail lock
0360573 Lever, trail lock unpainted
49 0335487 Screw, trail lock lever
50 0335701 Bushing, trail lock lever
51 0330266 Washer, trail lock lever
52 5009241 Anode assembly
53 0362173 Screw, m8 x 35 anode to stern brackets
54 0359480 Lever, sending unit
55 0328743 Rondelle
56 0309750 Washer, spring
57 0329160 Screw, anchor to bracket
58 0587333 Sending unit assembly
59 3011149 Seal, wire
60 3011147 Contact, female receptacle
61 3011420 Connector not shown
62 0513323 Ring terminal, 10
63 0329160 Screw, anchor to bracket
64 0328744 Screw, clamp 1 4 20 x .75
65 0328702 Washer
66 0332226 Screw, air temperature sensor
67 0336534 Retaining ring, lower tilt pin
68 0335479 Bushing, tilt pin
69 0335480 Tilt pin, upper
70 0336534 Retaining ring, lower tilt pin
71 0335479 Bushing, tilt pin
72 0335463 Tilt pin, lower
73 5011186 Trim tilt hydraulic assembly also see trim tilt hydraulic unit This part replaces 5010780.
74 5010729 Rigging housing assembly also see rigging housing
75 0362590 Grommet, water deflector
76 5011172 Steering connector kit
77 0363012 Screw, bracket mounting
77 0363011 Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm optional
77 0363011 Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm optional This part replaces 0358240.
77 0354102 Screw, bracket mount, 1 2 x 7 in. optional
77 0354103 Screw, bracket mount, 1 2 x 8 in. optional
77 0354104 Screw, bracket mount, 1 2 x 9 in. optional
78 0318273 Bolt hex retainer 1 2 in. optional
79 0319886 Screw optional
80 0318272 Nut backing plate square 1 2 in.
81 0307238 Rondelle
82 0320248 Rondelle, écrou
83 0363254 Nut, stern bracket screw
84 0318572 Bolt thread protective cap 1 2 in.
