EVINRUDE-JOHNSON 5011478 Bearing Housing Assembly

Write a Review
$47.49
SKU:
5011478
Schematic Object Key:
50

EVINRUDE-JOHNSON 5011478 Bearing Housing Assembly

$47.49

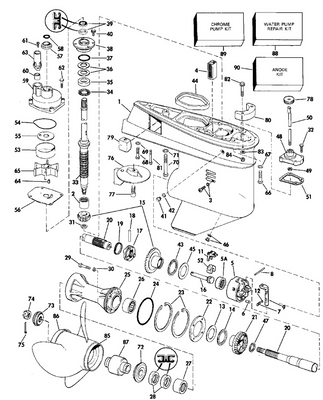

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5011478 Bearing Housing Assembly

Schematic Object Key : 50

Product Description: Bearing Housing Assembly

Category: EVINRUDE / AA Models / 115 - (G2, Inline 3-Cyl, 1.865 L) / K115HGLPAAB - (G2, Inline 3-Cyl., 1.865 L) / 07-1_GEARCASE, SLX2-Type (Ratio: 13:27, 0.48, 2.08:1)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
5010982 Gearcase complete id code gstna20 gray, standard rotation, no actuator, 20 inch shaft
5011021 Gearcase complete id code gstna25 gray, standard rotation, no actuator, 25 inch shaft
5010984 Gearcase complete id code gcrna25 gray, counter rotation, no actuator, 25 inch shaft
5011113 Gearcase complete id code wstna20 white, standard rotation, no actuator, 20 inch shaft
5011117 Gearcase complete id code wstna25 white, standard rotation, no actuator, 25 inch shaft
5011121 Gearcase complete id code wcrna25 white, counter rotation, no actuator, 25 inch shaft
1 5010985 Gearcase bearing assembly
2 5008904 Bearing, pinion 5008904 This part replaces 5010332.
3 0353931 Pin, alignment
4 0321357 O ring
5 0318544 Screw, fill drain contents of gearcase seal kit
6 0311598 Seal contents of gearcase seal kit
7 5011718 Detent assembly
8 0360491 O ring, detent
9 0160084 Ball
10 0911962 Spring
11 0361212 Seal
12 0361888 Housing, shifter
13 0360691 Screw, shifter housing
14 0360225 Pin, shift lever
15 0322938 Lever, shift
16 0334163 Cradle, shifter
17 0359256 Shaft, shifter
18 5010986 Gearset, forward, reverse pinion standard rotaion ratio 976
18 5011307 Gearset, forward, reverse pinion counter rotaion ratio 13 27, 0.48 , 2.08 1
18 **GEAR, Front | Not available separately
18 **GEAR, Pinion | Not available separately
19 **GEAR, Reverse | Not available separately
20 0359432 Screw, pinion gear 3 8 24 x 2.500
21 0360540 Washer, pinion gear screw
22 0385043 Thrust bearing assy.
23 0324766 Thrust washer, forward gear
24 5009768 Bearing assembly, needle outer
25 5009769 Bearing assembly, tapered roller inner
26 0359338 Spacer tapered roller bearing to retaining ring
27 0358571 Ring, retaining
28 0352317 Shifter, clutch dog
29 0313448 Pin, clutch dog
30 0324369 Spring, clutch dog pin
31 0359303 Propeller shaft
32 5010341 Bearing assembly, roller inner
33 0358571 Ring, retaining
34 0385043 Thrust bearing assy.
35 0324766 Thrust washer, forward gear
36 5009768 Bearing assembly, needle outer
37 5011166 Bearing housing assembly, propeller shaft
37A 0363178 Anode
37B 0325115 Screw
37C 0313022 Locknut, double ended bolt
38 0360749 O ring, propeller shaft housing
39 5010042 Bearing assembly, ball
40 0379504 Propshaft bearing assembly
41 0330137 Seal
42 0360028 Ring, retaining
43 0359300 Lock ring
44 0359299 Spanner nut
45 0362333 Driveshaft, 20 inch for k150 aaa models
45 0362334 Driveshaft, 25 inch for k150 aaa models
45 0363425 Driveshaft, 20 inch for k150 aab models
45 0363642 Driveshaft, 25 inch for k150 aab models
46 5011083 Thrust bearing
47 0362340 Thrust washer
48 0362337 Shim, 0.003 inch
48 0362338 Shim, 0.004 inch
48 0362339 Shim, 0.005 inch
50 5011478 Bearing housing assembly
51 0362335 Spanner nut
53 5010987 Manifold assembly
54 0353931 Pin, alignment manifold housing to impeller housing
55 0329923 Joint, inférieur contents of gearcase seal kit
56 0329922 Joint, supérieur contents of gearcase seal kit
57 0362028 O ring, manifold to driveshaft bearing contents of gearcase seal kit
58 0361893 Seal, manifold
59 0362382 Seal, oil tube
60 0353590 Screw contents of gearcase seal kit
61 0360339 Screw, shift actuator m6 x 35
62 5010988 Shift actuator assembly
63 3011704 Connector, 6 socket plug
64 3011705 Lockwedge, 6 socket plug
65 3011706 Terminal, socket
66 0307551 Screw contents of gearcase seal kit
67 0311598 Seal contents of gearcase seal kit
68 0359311 Seal, shift actuator to manifold contents of gearcase seal kit
69 0361154 Shift rod
70 0361570 Tube, oil
71 0361376 Tube, water
72 0362029 O ring, water tube
73 5010736 Seal pin assembly
74 0362085 Trim tab, standard gray
74 0362376 Trim tab, standard white
74 0362820 Trim tab, counter rotation gray
74 0362821 Trim tab, counter rotation white
75 0313715 Screw, cap, hex hd, 7 16 14 x 1
77 5011392 Water screen kit, standard flow
77 5011393 Water screen kit, high flow
78 0337061 Screw, water intake screens
79 0360661 Anode insert, rear
80 0325115 Screw
81 0313022 Locknut, double ended bolt
82 5011570 Anode kit, front
83 0363371 Screw, anode
84A 0362476 Screw, gearcase to exhaust housing 20 inch models
84B 0353741 Washer all models
85A 0363263 Stud, m10 x 172 gearcase retention to exhaust housing 25 inch models
85B 0358565 Nut, flanged 25 inch models
86 0346786 Clamp
87 0361716 Hose, gearcase manifold to oil reservoir
86 0346786 Clamp
87 0361716 Hose, gearcase manifold to oil reservoir
88 5009873 Oil reservoir, gearcase
0358892 Screw
89 0339276 Clamp This part replaces 0357477.
90 0357427 Hose 0.25 in. 6.35 mm diameter bulk roll 25 ft. 7.62 m
91 0348838 Clamp, 10.5 mm
92 0346786 Clamp
93 5008843 Plug tie strap
94 0320107 Tie strap
95 5010989 Water pump repair kit
96 0360148 Gasket, impeller plate contents of gearcase seal kit
97 0338485 Plate, impeller stainless
98 0331353 Seal, impeller housing plate.
99 5010990 Impeller repair kit
5001469 Impeller assembly
100 0302035 "o" ring, spacer to imp. hsg. contents of gearcase seal kit
101 0331107 Clavette, turbine
102 0338486 Coupelle, turbine inox
103 0362670 O ring, cup to housing
104 0360347 Housing, impeller
105 0346865 O ring, water tube
106 0360836 Water tube
107 0360230 Tube, 20 in
107 0360281 Tube, 25 in
108 0360643 Screw, tube to impeller housing
109 0353590 Screw
110 5010991 Gearcase seal kit
