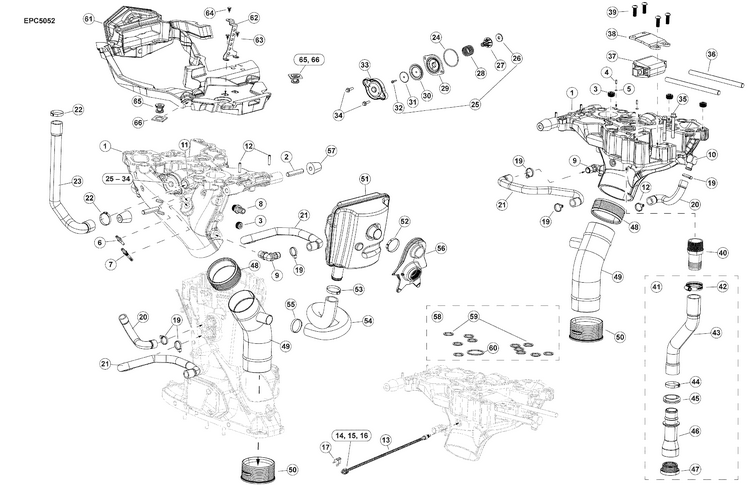

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description: Exhaust Adapter | Order O-Ring Kit, Item 58 Separately
Category: EVINRUDE / AK Models / 200 - (G2, 74° V6, 3.4 L) / H200GXCAAKB - (G2 74° V6, 3.4 L) / 06-2_EXHAUST ADAPTER & MUFFLER
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5011621 | Exhaust adapter order o ring kit, item 58 separately | |
2 | 0336630 | Goupille, cylindrique | |
3 | 0335852 | Plug | |
4 | 0353931 | Pin, alignment | |
5 | 0321357 | O ring | |
6 | 5007618 | Fitting, exhaust back pressure | |
7 | 0358875 | Fitting, spray | |
8 | 0357085 | Fitting, straight | |
9 | 0357086 | Fitting, elbow rear | |
10 | *FITTING, Hose | Not sold separately | ||
11 | *FITTING, Straight | Not sold separately | ||
12 | 0357560 | Pin, roll muffler to adaptor | |
13 | 0587376 | Sensor, exhaust temperature | |
14 | 3011153 | Connecteur, fiche 2 positions | |
15 | 3011149 | Seal, wire | |
16 | 3011147 | Contact, female receptacle | |
NS | 0317893 | Tie strap | |
NS | 0320107 | Tie strap | |
NS | 0361251 | Clamp, 38.1 mm | |
NS | 0358005 | Clamp, 45.5 mm exhaust grommet to muffler | |
NS | 0363204 | Fitting, hose water supply from water pump | |
17 | 3011450 | Clip | |
NS | 0356614 | Hose, back pressure | |
NS | 0353038 | Restrictor, 0.013 back pressure hose | |
NS | 0346786 | Clamp back pressure hose to emm | |
NS | 0320107 | Tie strap back pressure hose to fitting | |
18 | 0356921 | Hose, adaptor drain to exhaust housing rear | |
19 | 0320107 | Tie strap | |
20 | 0363155 | Hose, adaptor drain to exhaust housing front | |
21 | 0363156 | Hose, exhaust adapter to exhaust housing rear | |
22 | 0361251 | Clamp, 38.1 mm cylinder head water out to y fitting | |
23 | 0363153 | Hose, y fitting to cylinder block adaptor | |
24 | 0354759 | O ring | |
25 | 5008108 | Pressure relief valve assembly | |
26 | 0357798 | Seal | |
27 | 0357800 | Plunger | |
28 | 0357468 | Spring | |
29 | 0347240 | Plate, housing | |
30 | 0347244 | Diaphragm | |
31 | 0347243 | Support, diaphragm | |
32 | 0328649 | Screw, bowl to body | |
33 | 0347241 | Cover, housing | |
34 | 0353590 | Screw m6 x 25 | |
35 | 0353676 | Screw, adapter to exhaust housing front m10 x 70 | |
36 | 0356554 | Stud m14 | |
37 | 5009387 | Rubber mount assembly, upper | |
38 | 0330929 | Plate, upper mount | |
39 | 0356263 | Screw, upper mount plate m10 | |
40 | 0363204 | Fitting, hose water supply from water pump | |
41 | 5011624 | Hose tube kit | |
42 | 0363495 | Clamp, gear | |
43 | 0363219 | Hose | |
44 | 0361558 | Clamp, 50.0 mm | This part replaces 0363497. |
45 | 0362950 | Grommet | |
46 | 0362952 | Tube | |
47 | 0362956 | Seal | |
48 | 0355458 | Seal, exhaust adapter to exhaust pipe | |
49 | 0356259 | Exhaust pipe | |
50 | 0356006 | Seal | |
51 | 5010778 | Muffler kit serial number 5510030 and higher | |
52 | 0358005 | Clamp, 45.5 mm exhaust grommet to muffler | |
53 | 0351862 | Clamp, 42.5 mm exhaust hose to muffler | |
NS | 0346786 | Clamp cooling water hose to muffler fitting | |
54 | 5010516 | Exhaust hose kit | |
55 | 0351862 | Clamp, 42.5 mm | |
56 | 0360653 | Grommet assembly, exhaust relief | |
57 | 0349557 | Mount | |
58 | 5009481 | O ring kit | |
59 | 0356865 | O ring | |
60 | 0356864 | O ring | |
61 | 0361560 | Seal, exhaust housing to frames | |
62 | 0357559 | Bracket foam seal to adapter | |
63 | 0357679 | Pin, push bracket to foam seal | |
64 | 0357679 | Pin, push bracket to adaptor | |
65 | 5004576 | Ensemble soupape | |
66 | 0351029 | Plate, valve |
