EVINRUDE-JOHNSON 5011674 Stern & Swivel Bracket Complete | Slate Gray, Idock Counter Rotation Models

Write a Review
$7,697.49
SKU:
5011674
Schematic Object Key:
1

EVINRUDE-JOHNSON 5011674 Stern & Swivel Bracket Complete | Slate Gray, Idock Counter Rotation Models

$7,697.49

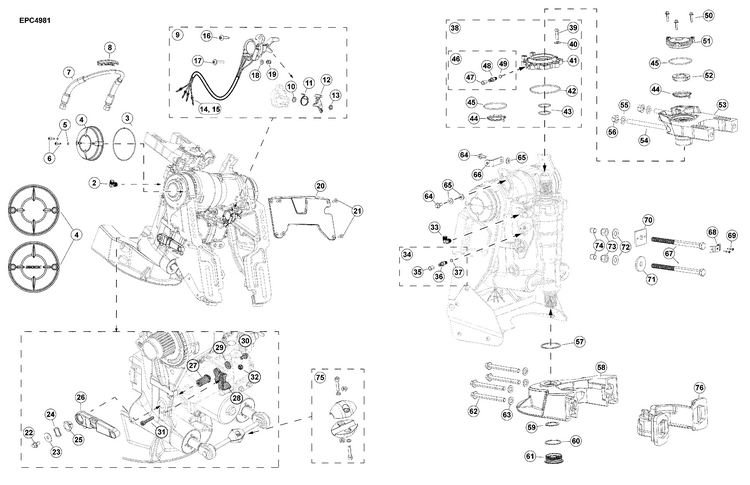

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5011674 Stern & Swivel Bracket Complete | Slate Gray, Idock Counter Rotation Models

Schematic Object Key : 1

Product Description: Stern & Swivel Bracket Complete | Slate Gray, Idock Counter Rotation Models

Category: EVINRUDE / AF Models / 150 - (G2, 66° V6, 2.7 L) / C150HGLFAFF - (G2 66° V6, 2.7 L) / 06-3.2_SWIVEL BRACKET (Full Featured Models)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5011662 Stern swivel bracket complete johnson white. idock starboard standard rotation models This part replaces 5011467.
1 5011668 Stern swivel bracket complete slate gray, dps models
1 5011670 Stern swivel bracket complete slate gray, ihs models
1 5011674 Stern swivel bracket complete slate gray, idock counter rotation models
1 5011672 Stern swivel bracket complete slate gray, idock starboard standard rotation models
1 5011660 Stern swivel bracket complete white. dps models
1 5011666 Stern swivel bracket complete white. ihs models
1 5011664 Stern swivel bracket complete white. idock port counter rotation models
1 5011662 Stern swivel bracket complete white. idock starboard standard rotation models
1 5011660 Stern swivel bracket complete johnson white. dps models This part replaces 5011379.
1 5011666 Stern swivel bracket complete johnson white. ihs models This part replaces 5011381.
1 5011664 Stern swivel bracket complete johnson white. idock port counter rotation models This part replaces 5011465.
1 5011662 Stern swivel bracket complete johnson white. idock starboard standard rotation models This part replaces 5011467.
2 0355965 Fitting, elbow starboard, dps ihs models
2 0358193 Elbow starboard, idock models
3 0354992 O ring
4 0359476 Cover all models
4 5010572 Cover idock models only
0360940 Decal, idock idock models only
5 0321357 O ring
6 0362483 Screw This part replaces 0358259.
7 5009496 Hose assembly ihs models only
8 0357893 Steering hose anti kink retainer
9 0587196 Sending unit assembly
10 0320689 Ecrou
11 0511528 Spring
12 0342386 Arm
13 0511527 Retainer
NS 0513323 Ring terminal, 10 10
NS 3011420 Connector
14 3011147 Contact, female receptacle
15 3011149 Seal, wire
NS 0320107 Tie strap sending unit lead
16 0362483 Screw m5 x 20
17 0358261 Screw, m5 x 25 m5 x 25
18 0357134 Washer, m5 ground lead to swivel bracket
19 0357117 Cover,crankcase front ground lead to swivel bracket
20 0357363 Plate
21 0358258 Screw m6 x 16 flathead
22 0353897 Screw retainer
23 0357083 Washer
24 0356413 Spring washer
25 0335486 Bague, levier de relevage
26 0356444 Lever
27 0357035 Bushing
28 0356313 Retainer
29 0353761 Rondelle, levier de sens de marche
30 0353897 Screw trail lock lever
31 0356315 Screw, m6 x 30
32 0360630 Nut, m6
33 0355965 Fitting, elbow port, all models
34 5009972 Kit, bleed valve
35 0315391 Cover
36 **FITTING, Bleed valve
37 0303191 "o" ring, lever shaft
38 5009971 End cap kit
39 0357639 Screw, end cap m8 x 30
40 0353735 Washer, end cap screws see service bulletin 2018 06 s
41 *END CAP ASSEMBLY
42 0358324 O ring, end cap
43 0357985 O ring, steering shaft
44 0356876 Washer, tab
45 0341620 O ring
46 5009972 Kit, bleed valve
47 0315391 Cover
48 ***FITTING, Bleed valve
49 0303191 "o" ring, lever shaft
50 0353590 Screw m6 x 25
51 0355137 Cover ihs models only.
52 0356877 Nut, steering shaft 1 5 16 in.
53 0363151 Steering bracket, upper slate gray This part replaces 0361858.
53 0362983 Steering bracket, upper johnson white
54 0356554 Stud m14 x 220
55 0356233 Washer m14
56 0356555 Nut, flanged m14
57 0357814 O ring
58 0356442 Steering bracket, lower slate gray
58 0362982 Steering bracket, lower johnson white
59 0355028 Retaining ring
60 0313754 O ring
61 0354962 Plug
62 0356071 Screw m12 x 120
63 0356264 Washer, m12 steering bracket to lower mount
64 0354818 Screw, anode
65 0357979 Washer, shipping bracket
66 0356810 Shipping bracket
67 0363011 Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm This part replaces 0358240.
67 0363011 Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm optional This part replaces 0354101.
67 0354102 Screw, bracket mount, 1 2 x 7 in. optional
67 0354103 Screw, bracket mount, 1 2 x 8 in. optional
67 0354104 Screw, bracket mount, 1 2 x 9 in. optional
68 0318273 Bolt hex retainer 1 2 in. optional
69 0319886 Screw optional
70 0318272 Nut backing plate square 1 2 in.
71 0307238 Rondelle
72 0320248 Rondelle, écrou
73 0363254 Nut, stern bracket screw This part replaces 0313623.
74 0318572 Bolt thread protective cap 1 2 in.
75 0359580 Anode kit
76 0360207 Seal
