EVINRUDE-JOHNSON 5030174 Screw

Write a Review
$6.23
SKU:
5030174
Schematic Object Key:
29

EVINRUDE-JOHNSON 5030174 Screw

$6.23

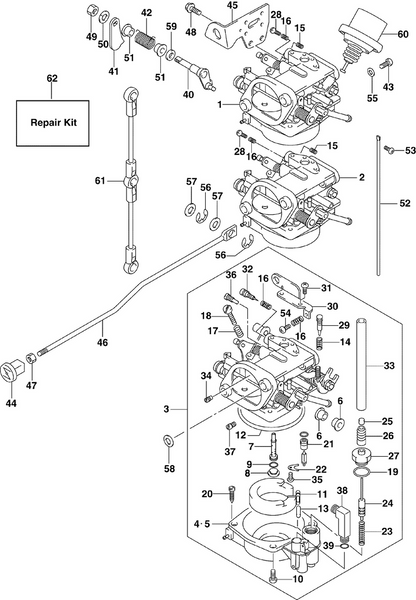

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5030174 Screw

Schematic Object Key : 29

Product Description: Screw

Category: JOHNSON / 2007 / 30 / J30TEL4SUA / CARBURETORS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5032201 Carburetor assy, top
2 5032202 Carburetor assy, 2nd
3 5032203 Carburetor assy, 3rd
4 5032373 Chamber, float 1 2
5 5032374 Chamber, float 3
6 5032375 Bushing
7 5032377 Nozzle, main
8 5032378 Plug
9 5032379 O ring
10 5032380 Screw
11 5032381 Float
12 5032382 Gasket, float chamber
13 5030168 Pin
14 5030169 Spring
15 5030170 Spring
16 5030170 Spring
17 5032387 Spring 3
18 5032388 Screw 3
19 5032389 O ring
20 5032390 Adjuster
21 5032391 Valve assy, needle
22 5032392 Plate
23 5032393 Spring
24 5032394 Plunger
25 5032395 Cap
26 5032396 Cap
27 5032397 Guide, holder
28 5032398 Screw 1 2
29 5030174 Screw
30 5032400 Bracket
31 5032401 Screw
32 5032402 Adjuster
33 5032403 Hose 1 2 l 125mm
33 5032403 Hose 1 2 l 125mm
34 5032405 Jet, main air 0.7
35 5032406 Screw
36 5032408 Jet, pilot 40
37 5032410 Jet, main 110
38 5037548 Union
39 5036039 O ring
40 5032404 Shaft assy
41 5032411 Lever
42 5032412 Spring
43 5032413 Screw
44 5031969 Knob, starter tel model
45 5032279 Protector, carburetor
46 5032414 Rod, choke tel model
47 5030415 Nut tel model
48 5030988 Bolt, rectifier regula
49 5032415 Nut
50 5030068 Rondelle
51 5032375 Bushing
52 5032418 Cable
53 5032419 Screw
54 5032420 Screw
55 5032421 Washer
56 5032422 E ring, retainer tel model
57 5032423 Washer tel model
58 5032695 Shim
59 5034668 Spacer
60 5031967 Dash pot assy
61 5031968 Rod, throttle
62 5032424 Carburetor repair kit
