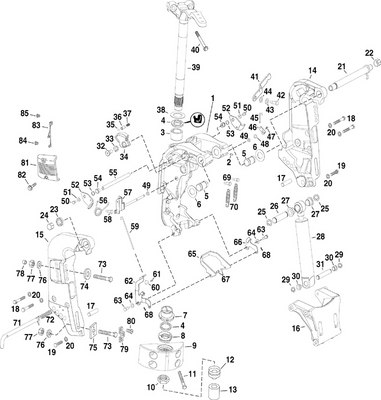

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 9
Product Description: Shaft, Handle To Rod
Category: JOHNSON / 1999 / 5 / J5REEC 1999 / SHIFT & TILLER HANDLE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5030205 | Knob, shift handle | |
| 2 | 5030203 | Shift handle | |
| 3 | 5030052 | Nut | |
| 4 | 5030069 | Washer, steering bracket | |
| 5 | 5030207 | Fitting, grease | |
| 6 | 5031173 | O ring | This part replaces 5030103. |
| 7 | 5030096 | Ball | |
| 8 | 5030139 | Spring | |
| 9 | 5030206 | Shaft, handle to rod | |
| 10 | 5030090 | Bolt, holder | |
| 11 | 5030209 | Rod, shift handle, short | |
| 11 | 5030208 | Rod, shift handle, long | |
| 12 | 5030086 | Pin | |
| 13 | 5030210 | Connector, rod, no. 1 | |
| 14 | 5030211 | Connector, rod, no. 2 | |
| 15 | 5030000 | Bolt | |
| 16 | 5030130 | E ring | |
| 17 | 5030212 | Rod assy., shift | |
| 18 | 5030213 | Guide, shift rod | |
| 19 | 5030215 | Boot, shift rod | |
| 20 | 5030216 | Cam, shift | |
| 21 | 5030055 | Washer | |
| 22 | 5030088 | Pin | |
| 23 | 5030102 | O ring | |
| 24 | 5030104 | O ring | |
| 25 | 5034189 | Bushing | This part replaces 5030115. |
| 26 | 5031180 | Handle, tiller | |
| 27 | 5030312 | Bushing, tiller handle | |
| 28 | 5030313 | Mount, tiller handle | |
| 29 | 5030314 | Stop, tiller handle | |
| 30 | 5030315 | Grip | |
| 31 | 5030317 | Rod, handle | |
| 32 | 5030318 | Plate, handle | |
| 33 | 5030319 | Support, rod | |
| 34 | 5032475 | Knob, throttle adjust | This part replaces 5030320. |
| 35 | 5030321 | Cable, throttle | |
| 36 | *5030049 | Screw 6x23mm | |
| 37 | 5030050 | Screw 5x20mm | |
| 38 | 5030053 | Ecrou, bouton dispositif de réglage | |
| 39 | 5030105 | O ring | |
| 40 | 5030117 | Grommet, stop switch lead | |
| 41 | 5030118 | Grommet, throttle cable | |
| 42 | 5030135 | Clamp, rect reg lead | |
| 43 | 5030989 | Bolt | This part replaces 5030013. |
| 44 | *5030316 | Decal,handle grip |
