EVINRUDE-JOHNSON 5030352 Kit, Water Pump

Write a Review
$30.49
SKU:
5030352
Schematic Object Key:
67

EVINRUDE-JOHNSON 5030352 Kit, Water Pump

$30.49

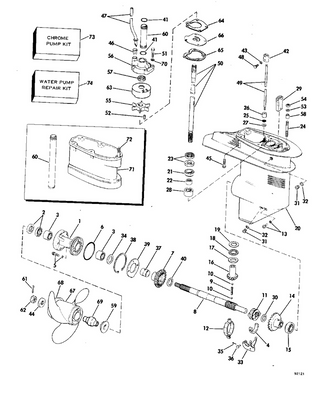

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5030352 Kit, Water Pump

Schematic Object Key : 67

Product Description: Kit, Water Pump

Category: EVINRUDE / 1998 / 5 / E5RLECS 1998 / GEARCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5030193 Grommet, water tube, upper
2 5030192 Water tube, short
2 5030191 Water tube, long
3 5030194 Guide, water tube
4 5030038 Bolt This part replaces 5030039.
5 5030187 Grommet, water pump
6 5030112 Seal, oil
7 5030051 Ecrou
8 5030068 Rondelle
9 5030032 Bolt, stud
10 5031195 Case, water pump This part replaces 5030186.
11 5030137 Key
12 5030188 Impeller, water pump
13 5031196 Plate, water pump This part replaces 5030189.
14 5030190 Gasket, pump plate
15 5030272 Housing, driveshaft
16 5030107 Seal, driveshaft
17 5030273 Gasket, driveshaft housing
18 5030040 Bolt, shift rod stop
19 5034174 Plate, shift rod guide This part replaces 5030214.
20 5030263 Gearcase, jo.
20 5030264 Gearcase, ev.
21 5030113 Bushing
22 5030099 Bearing
23 5030094 Bolt 10x7.5mm
24 5030071 Gasket
25 5030043 Bolt
26 5030092 Pin
27 5030044 Bolt, gearcase, rear
28 5030106 O ring
29 5030268 Bearing housing, prop shaft, jo.
29 5030269 Bearing housing, prop shaft, ev.
30 5030097 Bearing
31 5030108 Seal, bearing housing
32 5030070 Washer
33 5030099 Bearing
34 5030038 Bolt
35 5030084 Drive pin
36 5030287 Bushing, propeller
37 5030283 Propeller 3x7 1 2x6mm
37 5034197 Propeller 3x7 1 2x6 1 2mm This part replaces 5030284.
37 5034198 Propeller 3x7 1 2x7mm This part replaces 5030286.
38 5030087 Cotter pin
39 5030288 Nut, propeller
40 5030195 Screen, water intake
41 5030015 Screw
42 5030270 Protector, oil seal
43 5030271 Washer
44 5030266 Anode
45 5030035 Bolt
46 5031201 Driveshaft, short This part replaces 5030274.
46 5031202 Driveshaft, long This part replaces 5030275.
47 5030119 Bushing, driveshaft, upper
48 5030128 Retainer, driveshaft, lower
49 5030074 Thrust washer
50 5030024 Retainer, driveshaft, upper
51 5030276 Gear, pinion, driveshaft
52 5034203 Gear, forward This part replaces 5030277.
53 5030278 Gear, reverse
54 5030073 Thrust washer, pinion
55 5030058 Washer 10x24x1.7mm
55 5030059 Washer 10x24x1.8mm
55 5030060 Washer 10x24x1.9mm
55 5030061 Washer 10x24x2.0mm
55 5030062 Washer 10x24x2.1mm
56 5030064 Thrust washer, 0.8
56 5030065 Thrust washer, 1.2
56 5030075 Shim, forward, 1.0
57 5030075 Shim, forward, 1.0
58 5030078 Shim 20x28x0.8mm
58 5030079 Shim 20x28x0.9mm
58 5030080 Shim 20x28x1.0mm
58 5030081 Shim 20x28x1.1mm
58 5030082 Shim 20x28x1.2mm
59 5030076 Shim 20x28x0.6mm
59 5030077 Shim 20x28x0.7mm
59 5030078 Shim 20x28x0.8mm
59 5030079 Shim 20x28x0.9mm
59 5030080 Shim 20x28x1.0mm
60 5030279 Propeller shaft
61 5030280 Shifter, clutch dog
62 5030085 Pin
63 5030138 Spring
64 5030141 Spring
65 5033500 Rod, push This part replaces 5030281.
66 5030282 Goupille
67 5030352 Kit, water pump
