EVINRUDE-JOHNSON 5030518 Pin

Write a Review
$9.11
SKU:
5030518
Schematic Object Key:
18

EVINRUDE-JOHNSON 5030518 Pin

$9.11

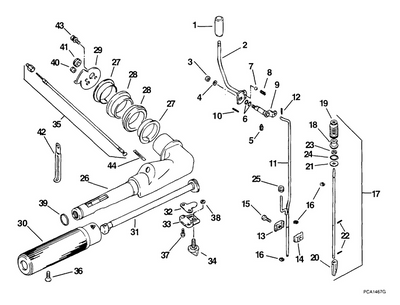

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5030518 Pin

Schematic Object Key : 18

Product Description: Pin

Category: EVINRUDE / 2001 / 70 / E70PL4SIA 4-Stroke, Elec. Start, TNT, Blue, 20 IN. shaft 2001 / DRIVESHAFT & PROPELLER SHAFT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5032552 Driveshaft assy
2 5032553 Collar, drive shaft
3 5032554 Washer, wave
4 5032555 Washer
5 5032556 Washer
6 5030532 Bearing
7 5032933 Pinion gear set This part replaces 5032557.
8 5032877 Nut
9 5030975 Shim kit, driveshaft
10 5030488 Shim 41x52x0.60mm
10 5030489 Shim 41x52x0.65mm
10 5030490 Shim 41x52x0.70mm
10 5030491 Shim 41x52x0.75mm
10 5030485 Shim 41x52x0.80mm
10 5030492 Shim 41x52x0.85mm
10 5030493 Shim 41x52x0.90mm
10 5030494 Shim 41x52x0.95mm
10 5030486 Shim 41x52x1.00mm
10 5030495 Shim 41x52x1.05mm
10 5030496 Shim 41x52x1.10mm
10 5030497 Shim 41x52x1.15mm
11 5032882 Bearing
12 5032559 Shim, 0.45mm
12 5032560 Shim, 0.50mm
12 5032561 Shim, 0.55mm
12 5032562 Shim, 0.60mm
12 5032563 Shim, 0.65mm
12 5032564 Shim, 0.70mm
12 5032565 Shim, 0.75mm
12 5032566 Shim, 0.80mm
12 5032567 Shim, 0.85mm
12 5032568 Shim, 0.90mm
13 5032569 Shim, 1.0mm
13 5032570 Shim, 1.1mm
13 5032571 Shim, 1.2mm
13 5032572 Shim, 1.3mm
13 5032573 Shim, 1.4mm
13 5032574 Shim, 1.5mm
13 5032575 Shim, 1.6mm
14 5032576 Shim, 0.9mm
14 5032577 Shim, 1.0mm
14 5032578 Shim, 1.2mm
14 5032579 Shim, 1.3mm
14 5032580 Shim, 1.4mm
14 5032581 Shim, 1.6mm
15 5032582 Propeller shaft assy
16 5032583 Shifter, clutch dog
17 5032584 Pin
18 5030518 Pin
19 5032585 Rod, push
20 5030595 Spring
21 5032586 Spring
22 5032587 Washer
23 5032588 Bearing hsg, propeller shaft
24 5030531 Bearing
25 5032589 O ring included in gearcase seal kit.
26 5032590 Oil seal included in gearcase seal kit.
27 5032591 Bearing
28 5032592 Circlip
29 5031216 Bolt
30 5030913 Bearing hsg seal assy
31 5030542 O ring included in gearcase seal kit.
32 5031067 Oil seal included in gearcase seal kit.
33 5030398 Bolt
34 5030973 Gearcase seal kit
