EVINRUDE-JOHNSON 5030599 Spring, Clutch Dog Pin

Write a Review
$14.99
SKU:
5030599
Schematic Object Key:
24

EVINRUDE-JOHNSON 5030599 Spring, Clutch Dog Pin

$14.99

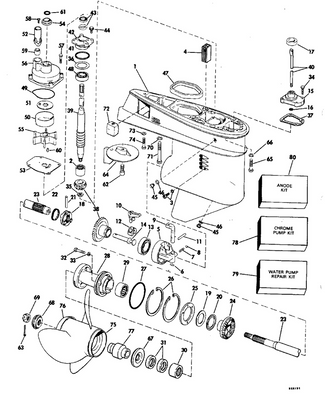

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5030599 Spring, Clutch Dog Pin

Schematic Object Key : 24

Product Description: Spring, Clutch Dog Pin

Category: JOHNSON / 1998 / 70 / J70FLTLECS 1998 / DRIVESHAFT & PROPELLER SHAFT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5030914 Driveshaft assy.
2 5030915 Collar, driveshaft
3 5030916 Protector, driveshaft collar
4 5030455 Washer, driveshaft
5 5030474 Washer, driveshaft
6 5030532 Bearing
7 5030598 Spring, driveshaft
8 5030917 Gear pinion assy.
9 5030421 Nut
10 5030975 Shim kit, driveshaft
11 5030488 Shim 41x52x0.60mm
11 5030489 Shim 41x52x0.65mm
11 5030490 Shim 41x52x0.70mm
11 5030491 Shim 41x52x0.75mm
11 5030485 Shim 41x52x0.80mm
11 5030492 Shim 41x52x0.85mm
11 5030493 Shim 41x52x0.90mm
11 5030494 Shim 41x52x0.95mm
11 5030486 Shim 41x52x1.00mm
11 5030495 Shim 41x52x1.05mm
11 5030496 Shim 41x52x1.10mm
11 5030497 Shim 41x52x1.15mm
12 5030533 Bearing, forward gear
13 5030918 Shim kit, forward gear
14 5030498 Shim, 0.55mm
14 5030499 Shim, 0.60mm
14 5031097 Shim, 0.65mm
14 5030500 Shim, 0.70mm
14 5030501 Shim, 0.75mm
14 5030502 Shim, 0.80mm
14 5030503 Shim, 0.85mm
14 5030504 Shim, 0.90mm
14 5030505 Shim, 0.95mm
14 5030506 Shim, 1.00mm
15 5030919 Shim kit, reverse gear
16 5030486 Shim 41x52x1.00mm
16 5030496 Shim 41x52x1.10mm
16 5030482 Shim, 1.2mm
16 5030483 Shim, 1.3mm
16 5030484 Shim, 1.4mm
16 5030487 Shim, 1.5mm
16 5030478 Shim, 1.6mm
16 5030479 Shim, 1.7mm
16 5030480 Shim, 1.8mm
16 5030481 Shim, 1.9mm
17 5030920 Thrust washer kit
18 5030476 Washer, 1.5mm
18 5030444 Washer, 1.6mm
18 5030445 Washer, 1.7mm
18 5030446 Washer, 1.8mm
18 5030447 Washer, 1.9mm
18 5031017 Washer, 2.0mm
18 5030448 Washer, 2.1mm
18 5031018 Washer, 2.2mm
18 5030449 Washer, 2.3mm
18 5030450 Washer, 2.4mm
18 5031019 Washer, 2.5mm
18 5030451 Washer, 2.6mm
18 5030452 Washer, 2.7mm
18 5030453 Washer, 2.8mm
18 5030454 Washer, 2.9mm
19 5030921 Propeller shaft assy.
20 5030922 Shifter, clutch dog
21 5030518 Pin
22 5030923 Rod, push
23 5030595 Spring
24 5030599 Spring, clutch dog pin
25 5030443 Washer
26 5030910 Bearing hsg., propeller shaft
27 5030531 Bearing
28 5030545 O ring z
29 5030547 Seal z
30 5031016 Bearing
31 5030911 Stop
32 5030912 Washer
33 5030913 Bearing hsg seal assy
34 5030542 O ring
35 5031067 Oil seal This part replaces 5030546.
36 5030398 Bolt
37 5030457 Spacer
38 5030592 Key, bearing housing
39 5030510 Pin, clutch dog
40 5030973 Gearcase seal kit
