EVINRUDE-JOHNSON 5031102 Grommet, Gearcase

Write a Review
$7.52
SKU:
5031102
Schematic Object Key:
34

EVINRUDE-JOHNSON 5031102 Grommet, Gearcase

$7.52

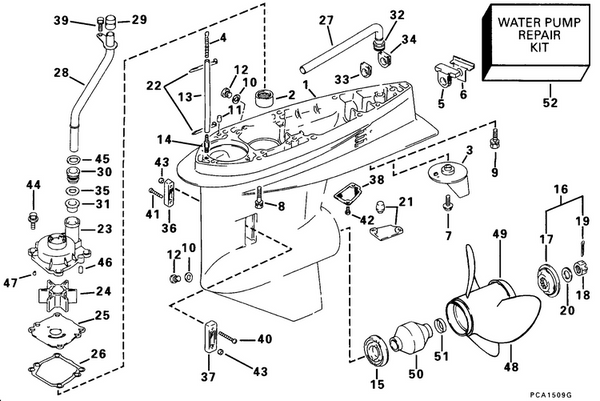

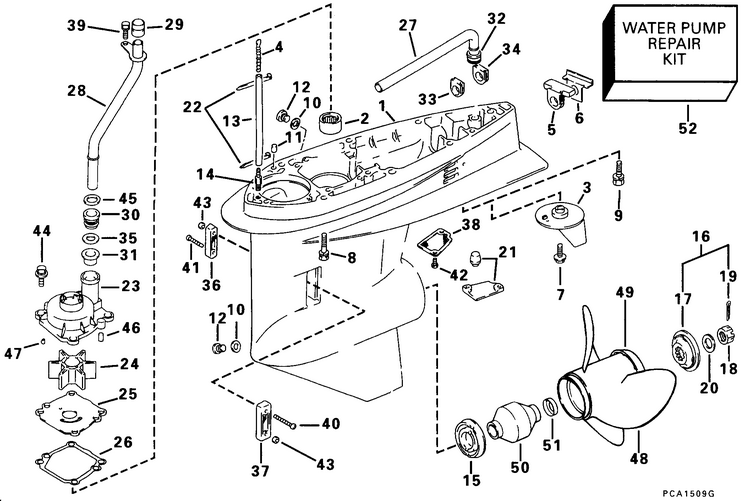

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5031102 Grommet, Gearcase

Schematic Object Key : 34

Product Description: Grommet, Gearcase

Category: EVINRUDE / 1998 / 70 / E70FTLECS 1998 / GEARCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5030903 Gearcase, jo.
1 5030904 Gearcase
2 5030530 Bearing, pinion w
3 5030905 Trim tab
4 5030906 Union, speedometer hose
5 5030908 Grommet, exhaust seal
6 5030909 Plate, exhaust seal
7 5034400 Bolt 8x22 This part replaces 5030395.
8 5034788 Bolt This part replaces 5030400.
9 5030401 Bolt
10 5030071 Gasket
11 5030511 Pin
12 5030094 Bolt 10x7.5mm
13 HOSE, Speedometer, 2 3/4 in. (70mm)
14 5030568 Fitting
15 5030924 Thrust bushing, propeller
16 5030976 Propeller nut assy.
17 5030925 Spacer
18 5030422 Nut
19 5030087 Cotter pin
20 5030441 Spacer washer
21 5032685 Plug This part replaces 5030972.
22 5030589 Clamp l 125mm
23 5030722 Case, water pump
24 5030723 Impeller assy.
25 5037170 Panel This part replaces 5030724.
26 5030725 Gasket, pump case panel
27 5031138 Tube, gearcase
28 5030726 Tube, water
29 5030727 Bushing, water tube upper
30 5030728 Bushing
31 5030729 Bushing
32 5031100 Bushing, gearcase
33 5031101 Grommet, gearcase
34 5031102 Grommet, gearcase
35 5030735 Spacer, water tube
36 5030737 Screen, water intake, port
37 5030738 Screen, water intake, stbd.
38 5030739 Filter, sub water
39 5030038 Bolt
40 5030404 Screw, screen, upper
41 5030405 Screw, screen, lower
42 5030406 Screw
43 5030415 Nut
44 5030398 Bolt
45 5030461 Washer
46 5030508 Pin
47 5030591 Key
48 PROPELLER
49 0332393 Converging ring
50 0384977 Bushing assy, prop, 3 blade
51 0313926 Propeller hub sleeve
52 5031731 Water pump repair kit includes 5031724 connec tor pin This part replaces 5030971.
