EVINRUDE-JOHNSON 5031162 Holder, Engine

Write a Review
$518.99
SKU:
5031162

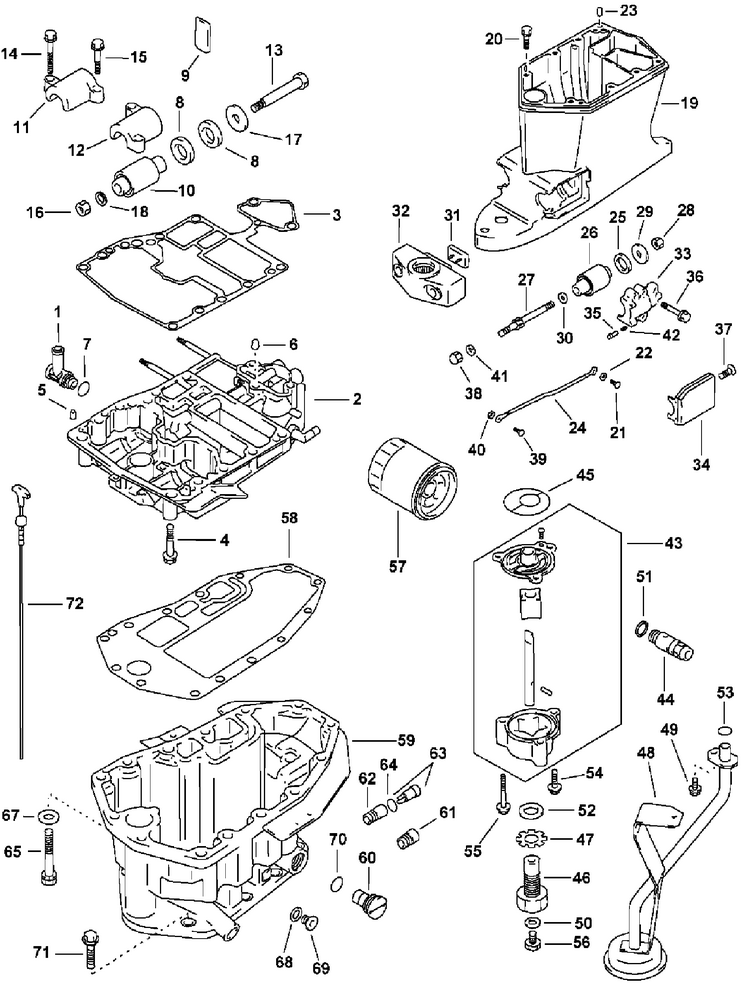

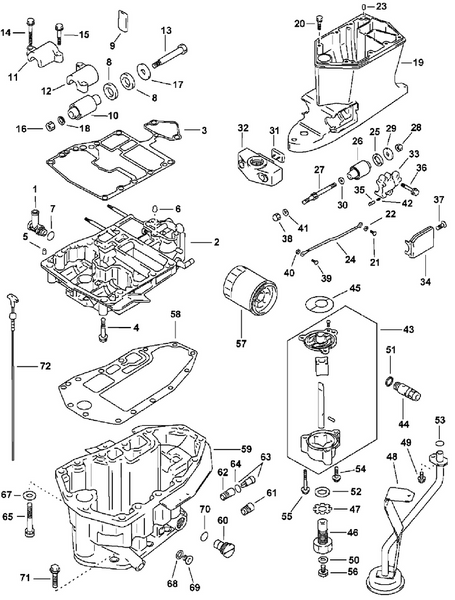

Schematic Object Key:
2

EVINRUDE-JOHNSON 5031162 Holder, Engine

$518.99

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5031162 Holder, Engine

Schematic Object Key : 2

Product Description: Holder, Engine

Category: EVINRUDE / 2001 / 70 / E70PL4SIA 4-Stroke, Elec. Start, TNT, Blue, 20 IN. shaft 2001 / MIDSECTION & OIL SYSTEM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5032910 Pipe, water return hose This part replaces 5030732.
2 5031162 Holder, engine
3 5030882 Gasket, engine holder included in powerhead gasket set.
4 5030401 Bolt
5 5030515 Pin
6 5031013 Dowel pin
7 5030539 O ring
8 5032925 Stop, upper thrust
9 5030887 Mount, upper thrust
10 5035806 Mount, upper This part replaces 5030888.
11 5032228 Cover, upper mount, stbd
12 5032233 Cover, upper mount, port
13 5031163 Bolt 12x117mm
14 5035665 Bolt 8x40 This part replaces 5030393.
15 5030394 Bolt 8x30mm
16 5031221 Nut
17 5030437 Washer
18 5030438 Rondelle entretoise
19 5030884 Exhaust housing
20 *5035792 Bolt, 10x45mm This part replaces *5030399.
21 5030407 Screw 5x8
22 5030460 Washer 6.3x12.5x1.0mm
23 5030511 Pin
24 5030821 Bonding lead, exh. hsg. to bracket
25 5030885 Damper, reverse stop lwr
26 5030894 Mount, lower
27 5030895 Bolt, lower mount
28 5030419 Nut
29 5030437 Washer
30 5030438 Rondelle entretoise
31 5030893 Mount, lower thrust
32 5030897 Bracket, lower mount
33 5030899 Cover, lower mount
34 5030901 Cap, lower mount cover
35 5030902 Pin
36 5030397 Bolt 8x40mm
37 5030412 Screw 6x16mm
38 5030423 Nut, bolt, lower mount
39 5030409 Screw
40 5030460 Washer 6.3x12.5x1.0mm
41 5030438 Rondelle entretoise
42 5030594 Spring
43 5030711 Oil pump assy
44 5030712 Valve assy, oil relief
45 5030713 O ring included in powerhead gasket set.
46 5030714 Stop, oil pump
47 5030715 Washer, oil pump stop
48 5030717 Strainer, oil
49 5030392 Bolt 6x16
50 5036000 Gasket included in powerhead gasket set. This part replaces 5030464.
51 5030469 Gasket
52 5030470 Gasket included in powerhead gasket set.
53 5030537 O ring
54 5030985 Bolt, throttle body
55 5030986 Bolt
56 5030992 Bolt
57 0778885 Filter assy, oil This part replaces 5031411.
58 5030635 Gasket, oil pan included in powerhead gasket set.
59 5030636 Oil pan
60 5032682 Plug, water
61 5030850 Pipe, drive shaft hsg
62 5030929 Tube, water indicator
63 5030930 Cover
64 5031173 O ring
65 5030384 Bolt 10x100mm
67 5030057 Washer
68 5030465 Gasket
69 5030525 Plug
70 5030536 O ring
71 5031212 Bolt
72 5030718 Dipstick, oil
