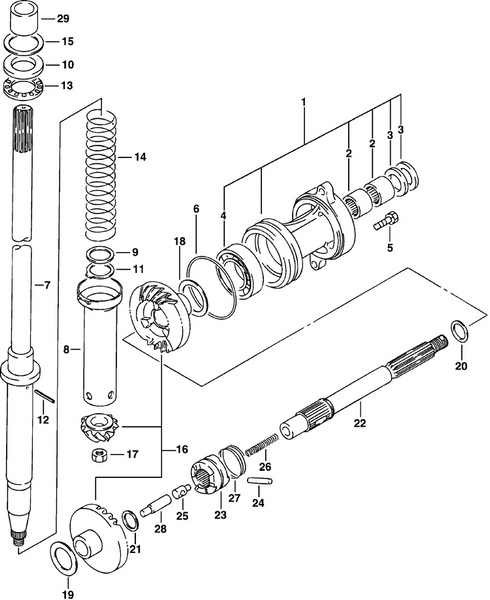

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 2
Product Description: Bearing
Category: EVINRUDE / 2001 / 50 / E50PL4SIR 4-Stroke, Elec Start, TNT, 20 IN. shaft 2001 / DRIVESHAFT & PROPELLER SHAFT
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5031539 | Bearing housing, propeller shaft | |
| 2 | 5031255 | Bearing | |
| 3 | 5031270 | Seal contents of gearcase seal kit. | |
| 4 | 5033253 | Bearing | This part replaces 5031694. |
| 5 | 5031216 | Bolt | |
| 6 | 5031263 | O ring | |
| 7 | 5032840 | Shaft, drive | This part replaces 5031541. |
| 8 | 5031544 | Housing driveshaft spring | |
| 9 | 5030443 | Washer | |
| 10 | 5031232 | Washer 26.2x42x4.0mm | |
| 11 | 5031233 | Washer | |
| 12 | 5031250 | Pi n | |
| 13 | 5031258 | Bearing | |
| 14 | 5031285 | Spring | |
| 15 | 5031237 | Shim 0.5mm | |
| 15 | 5031238 | Shim 0.6mm | |
| 15 | 5031239 | Shim 0.7mm | |
| 15 | 5031240 | Shim 0.8mm | |
| 15 | 5031241 | Shim 0.9mm | |
| 16 | 5031545 | Gear pinion assy | |
| 17 | 5030421 | Nut | |
| 18 | 5031695 | Shim 0.5mm | |
| 18 | 5031242 | Shim 0.6mm reverse | |
| 18 | 5031243 | Shim 0.7mm | |
| 18 | 5031696 | Shim 0.8mm | |
| 18 | 5031244 | Shim 0.9mm | |
| 18 | 5031697 | Shim 1.0mm reverse | |
| 19 | 5031237 | Shim 0.5mm | |
| 19 | 5031238 | Shim 0.6mm | |
| 19 | 5031239 | Shim 0.7mm | |
| 19 | 5031240 | Shim 0.8mm | |
| 19 | 5031241 | Shim 0.9mm | |
| 20 | 5031226 | Thrust washer, 1.8mm | |
| 20 | 5031227 | Thrust washer, 1.9mm | |
| 20 | 5031228 | Thrust washer, 2.0mm | |
| 20 | 5031229 | Thrust washer, 2.1mm | |
| 20 | 5031230 | Thrust washer, 2.2mm | |
| 20 | 5031231 | Thrust washer, 2.3mm | |
| 21 | 5031698 | Thrust washer, 2.0mm | |
| 21 | 5031699 | Thrust washer, 2.2mm | |
| 22 | 5031546 | Propeller shaft assy. | |
| 23 | 5036059 | Shifter, clutch dog | This part replaces 5031547. |
| 24 | 5031245 | Pin, clutch dog | |
| 25 | 5031251 | Pin, push | |
| 26 | 5031283 | Spring, push rod | |
| 27 | 5031286 | Spring, clutch dog pin | |
| 28 | 5031549 | Rod, push | |
| 29 | 5031543 | Bushing |
