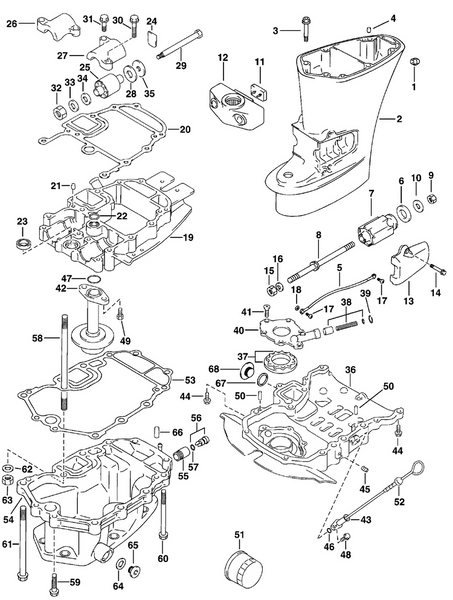

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 52
Product Description: Gauge, Oil Level
Category: EVINRUDE / 2001 / 40 / E40PL4SIR 4-Stroke, Elec Start, TNT, 20 IN. shaft 2001 / MIDSECTION & OIL SYSTEM
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5030850 | Pipe, drive shaft hsg | |
2 | 5031524 | Exhaust housing | |
3 | *5035792 | Bolt, 10x45mm | This part replaces *5030399. |
4 | 5030511 | Pin | |
5 | 5031667 | Lead mount brkt to hsg | |
6 | 5030886 | Damper, mount | |
7 | 5031529 | Mount, lower | |
8 | 5032676 | Bolt, lower mount | |
9 | 5030419 | Nut | |
10 | 5030437 | Washer | |
11 | 5030893 | Mount, lower thrust | |
12 | 5032677 | Bracket, lower mount | |
13 | 5031533 | Cover, lower mount | |
14 | 5031217 | Bolt | |
15 | 5031221 | Nut | |
16 | 5030438 | Rondelle entretoise | |
17 | 5030407 | Screw 5x8 | |
18 | 5030459 | Washer | |
19 | 5032795 | Holder, engine | This part replaces 5032242. |
20 | 5031523 | Gasket, engine holder contents of powerhead gasket set. | |
21 | 5031673 | Knock pin | |
22 | 5031262 | O ring | |
23 | 5031266 | Oil seal | |
24 | 5031527 | Mount, upper thrust | |
25 | 5031528 | Mount, upper | |
26 | 5032228 | Cover, upper mount, stbd | |
27 | 5032233 | Cover, upper mount, port | |
28 | 5031530 | Stop, upper thrust | |
29 | 5030027 | Bolt 10x150mm | |
30 | 5035665 | Bolt 8x40 | This part replaces 5030393. |
31 | 5030394 | Bolt 8x30mm | |
32 | *5030054 | Nut | |
33 | 5031224 | Washer | |
34 | 5030057 | Washer | |
35 | 5031668 | Washer | |
36 | 5031408 | Case, oil pump | |
37 | 5031409 | Rotor set, oil pump | |
38 | 5031410 | Valve set, oil pump relief | |
39 | 5031669 | Circlip | |
40 | 5031670 | Plate, oil pump rotor | |
41 | 5031671 | Screw | |
42 | 5031412 | Strainer, oil | |
43 | 5032783 | Guide, oil level gauge | This part replaces 5031414. |
44 | 5031212 | Bolt | |
45 | 5030521 | Bouchon | |
46 | 5030535 | O ring | |
47 | 5031262 | O ring | |
48 | 5030988 | Bolt, rectifier regula | |
49 | 5031672 | Bolt | |
50 | 5031673 | Knock pin | |
51 | 0778885 | Filter assy, oil | This part replaces 5031411. |
52 | 5031413 | Gauge, oil level | |
53 | 5031307 | Gasket, oil pan contents of powerhead gasket set. | |
54 | 5034437 | Pan, oil | This part replaces 5031308. |
55 | 5030929 | Tube, water indicator | |
56 | 5030930 | Cover | |
57 | 5031173 | O ring | |
58 | 5031210 | Bolt, stud | |
59 | 5031212 | Bolt | |
60 | 5031213 | Bolt 8x95mm | |
61 | 5031214 | Bolt 10x150mm | |
62 | 5030057 | Washer | |
63 | 5031219 | Nut | |
64 | 5030465 | Gasket | |
65 | 5030525 | Plug | |
66 | 5031673 | Knock pin | |
67 | 5030442 | Gasket | |
68 | 5031171 | Plug |
