EVINRUDE-JOHNSON 5031428 Filter, Water

Write a Review
$13.99
SKU:
5031428
Schematic Object Key:
34

EVINRUDE-JOHNSON 5031428 Filter, Water

$13.99

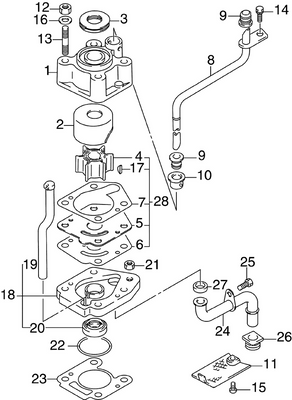

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5031428 Filter, Water

Schematic Object Key : 34

Product Description: Filter, Water

Category: EVINRUDE / 2001 / 50 / E50PL4SIR 4-Stroke, Elec Start, TNT, 20 IN. shaft 2001 / GEARCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5031534 Gearcase This part replaces 5032678.
2 5031256 Bearing, pinion
3 5031259 Bearing
4 5031535 Ring, gearcase seal contents of gearcase seal kit.
5 5031536 Tab, trim
6 5031215 Bolt 8x16
7 5036712 Bolt 8x45mm This part replaces 5031218.
8 5030071 Gasket contents of gearcase seal kit.
9 5031246 Pin 6x17mm
10 5031247 Pin 6x23mm
11 5030094 Bolt 10x7.5mm
12 5031621 11 1 2 x 9 aluminum.
12 5031622 11 1 2 x 10 aluminum.
12 5031623 11 1 2 x 11 aluminum.
12 5031624 11 5 8 x 12 aluminum.
12 5031619 11 1 2 x 13 aluminum.
12 5031620 11 3 8 x 14 aluminum.
12 5031627 11 1 4 x 15 aluminum.
12 5031628 11 1 8 x 16 aluminum.
12 0777021 11 1 8 x 13 stainless steel. This part replaces 5031625.
12 0777022 11 1 8 x 14 stainless steel. This part replaces 5031626.
12 0777023 11 x 15 stainless steel. This part replaces 0770380.
12 5031629 10 1 2 x 16 stainless steel.
13 5031691 Bushing, propeller
14 5031551 Stop, propeller bushing
15 5031548 Propeller hardware kit
16 5030422 Nut
17 5030441 Spacer washer
18 5031552 Spacer
19 5030087 Cotter pin
20 5031618 Cover, water tube for engines that are mounted high on transom.
21 5031692 Screw, cover
23 5031538 Anode assy.
25 5031416 Case, water pump
26 5031265 Seal, impeller housing
27 5031417 Impeller assy contents of water pump repair kit.
28 5031418 Panel, pump case under contents of water pump repair kit.
29 5036681 Gasket, plate contents of gearcase seal kit. contents of water pump repair kit. contents of powerhead gasket set. This part replaces 5031419.
30 5031420 Tube, water
31 5031422 Grommet, water tube upper
32 5031423 Grommet, water tube middle
33 5031424 Grommet, impeller housing contents of water pump repair kit.
34 5031428 Filter, water
35 5030739 Filter, sub water
36 5031208 Bolt, stud 6x18mm
37 5031209 Bolt, stud 6x35mm
38 5030406 Screw
39 5030051 Écrou
40 5030068 Rondelle
41 5031281 Key contents of water pump repair kit.
42 5031693 Screw
43 5030035 Bolt
44 5031540 Housing, driveshaft bearing
45 5031257 Bearing
46 5031264 Seal contents of gearcase seal kit.
47 5031744 Water pump repair kit
48 5031456 Gearcase seal kit
