EVINRUDE-JOHNSON 5031545 Gear & Pinion Assy

Write a Review
$530.49
SKU:
5031545
Schematic Object Key:
16

EVINRUDE-JOHNSON 5031545 Gear & Pinion Assy

$530.49

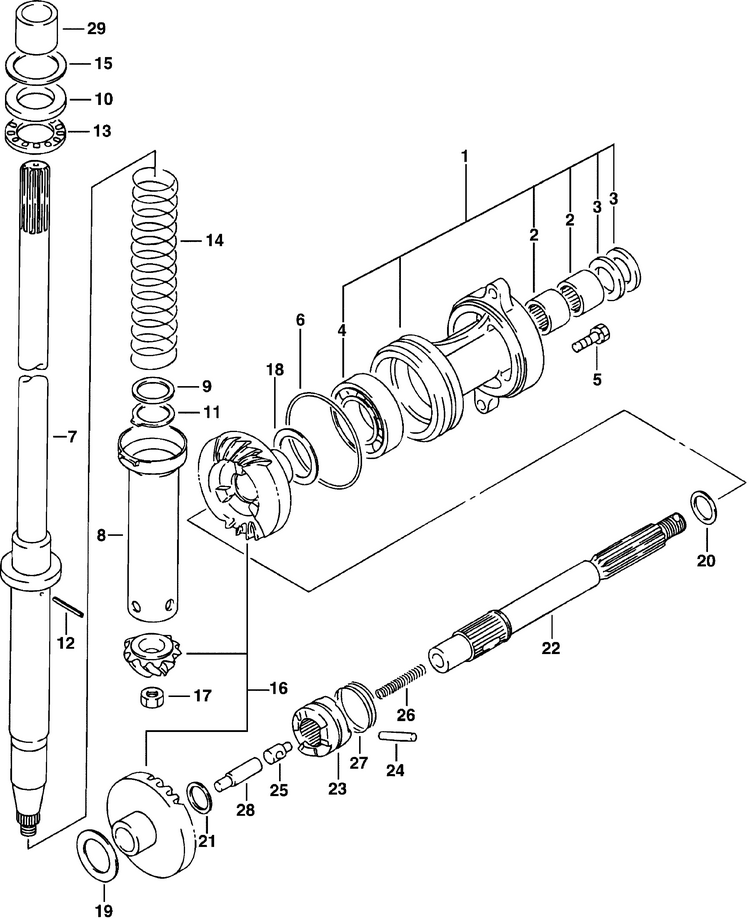

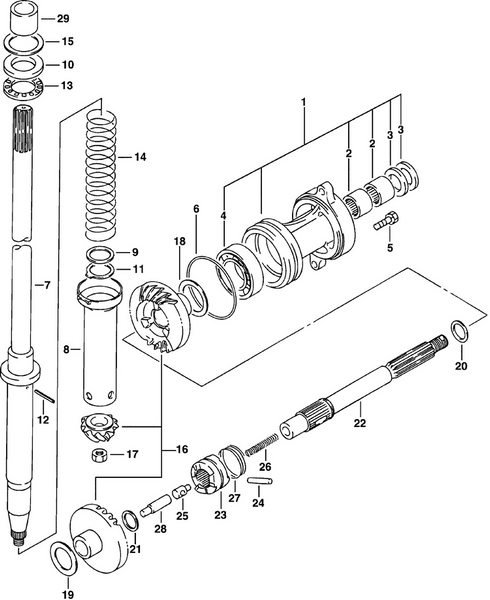

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 5031545 Gear & Pinion Assy

Schematic Object Key : 16

Product Description: Gear & Pinion Assy

Category: EVINRUDE / 2001 / 50 / E50PL4SIR 4-Stroke, Elec Start, TNT, 20 IN. shaft 2001 / DRIVESHAFT & PROPELLER SHAFT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5031539 Bearing housing, propeller shaft
2 5031255 Bearing
3 5031270 Seal contents of gearcase seal kit.
4 5033253 Bearing This part replaces 5031694.
5 5031216 Bolt
6 5031263 O ring
7 5032840 Shaft, drive This part replaces 5031541.
8 5031544 Housing driveshaft spring
9 5030443 Washer
10 5031232 Washer 26.2x42x4.0mm
11 5031233 Washer
12 5031250 Pi n
13 5031258 Bearing
14 5031285 Spring
15 5031237 Shim 0.5mm
15 5031238 Shim 0.6mm
15 5031239 Shim 0.7mm
15 5031240 Shim 0.8mm
15 5031241 Shim 0.9mm
16 5031545 Gear pinion assy
17 5030421 Nut
18 5031695 Shim 0.5mm
18 5031242 Shim 0.6mm reverse
18 5031243 Shim 0.7mm
18 5031696 Shim 0.8mm
18 5031244 Shim 0.9mm
18 5031697 Shim 1.0mm reverse
19 5031237 Shim 0.5mm
19 5031238 Shim 0.6mm
19 5031239 Shim 0.7mm
19 5031240 Shim 0.8mm
19 5031241 Shim 0.9mm
20 5031226 Thrust washer, 1.8mm
20 5031227 Thrust washer, 1.9mm
20 5031228 Thrust washer, 2.0mm
20 5031229 Thrust washer, 2.1mm
20 5031230 Thrust washer, 2.2mm
20 5031231 Thrust washer, 2.3mm
21 5031698 Thrust washer, 2.0mm
21 5031699 Thrust washer, 2.2mm
22 5031546 Propeller shaft assy.
23 5036059 Shifter, clutch dog This part replaces 5031547.
24 5031245 Pin, clutch dog
25 5031251 Pin, push
26 5031283 Spring, push rod
27 5031286 Spring, clutch dog pin
28 5031549 Rod, push
29 5031543 Bushing
